41
CABINET TRIMS INSTALLATION—[B] FIXED SCREW METHOD
7

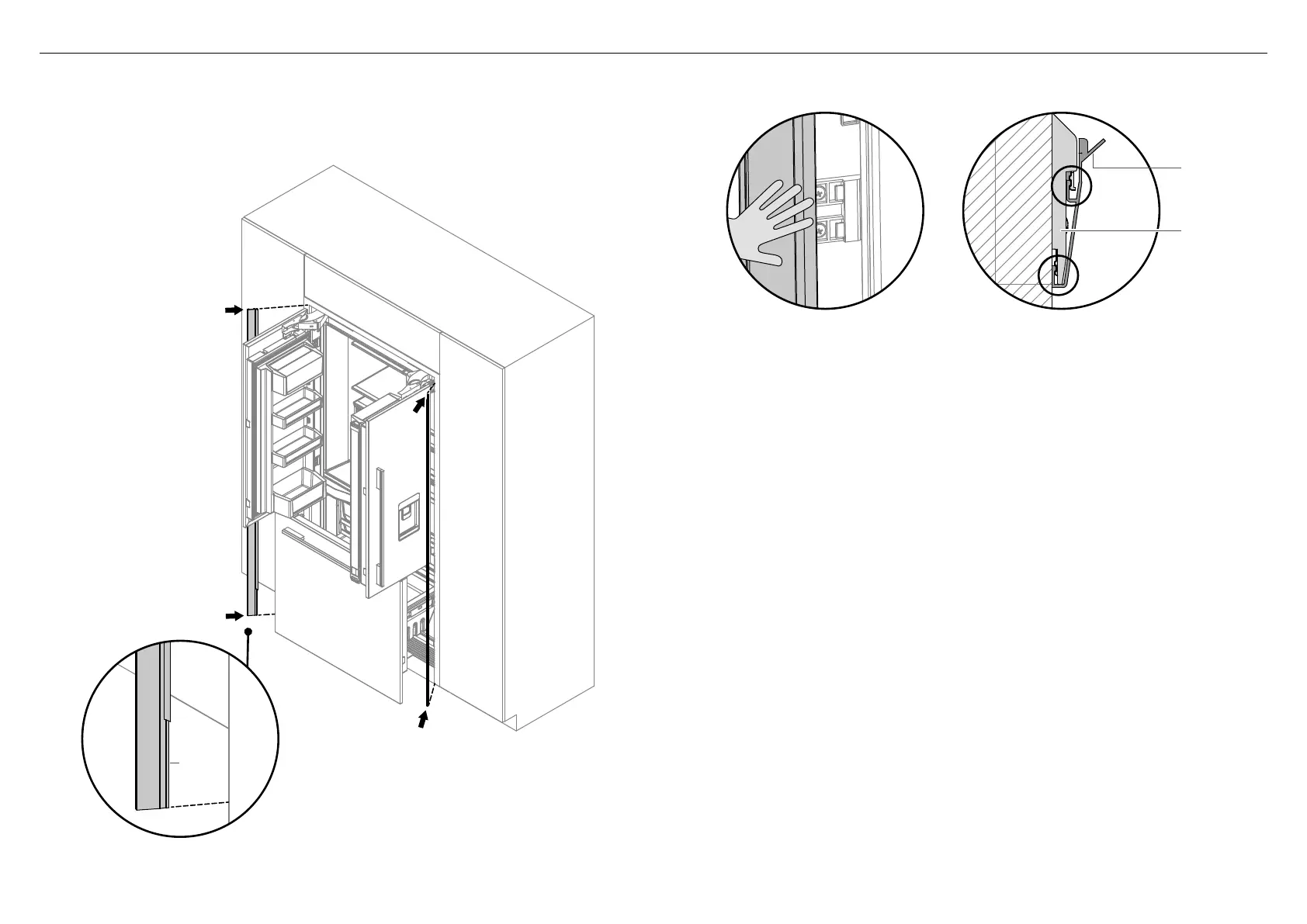

Place the side trim against the alcove side wall with the shorter lip facing
the bottom (E).
– Ensure the side trim is positioned as high as it will go.
E
8
Engage the side trim with the brackets by pushing the trim inwards
atthe locations of the top and middle side trim brackets.
9
Once the trim has engaged with top and middle brackets, push
andengage the side trim at the location of the bottom bracket (F).
Repeat for the remaining side trims.
IMPORTANT!
●
Each bracket has two engagement points for the trim to locate.
Ensurethe trim is engaged at both points (G).
●
Ensure there are no visual gaps between the appliance and side trims.
●
Adjust the gaps by loosening the side trim screws and moving the
trimwithin clearance. Iffurther adjustment is required, relocate
brackets to desired position.
F
Suggestion by Derek showing
engagement in 2 places
“ensure they are fully engaged”
Side trim
bracket
G
Top view of side trim engaged
correctly in side trim bracket
Side trim
short lip
