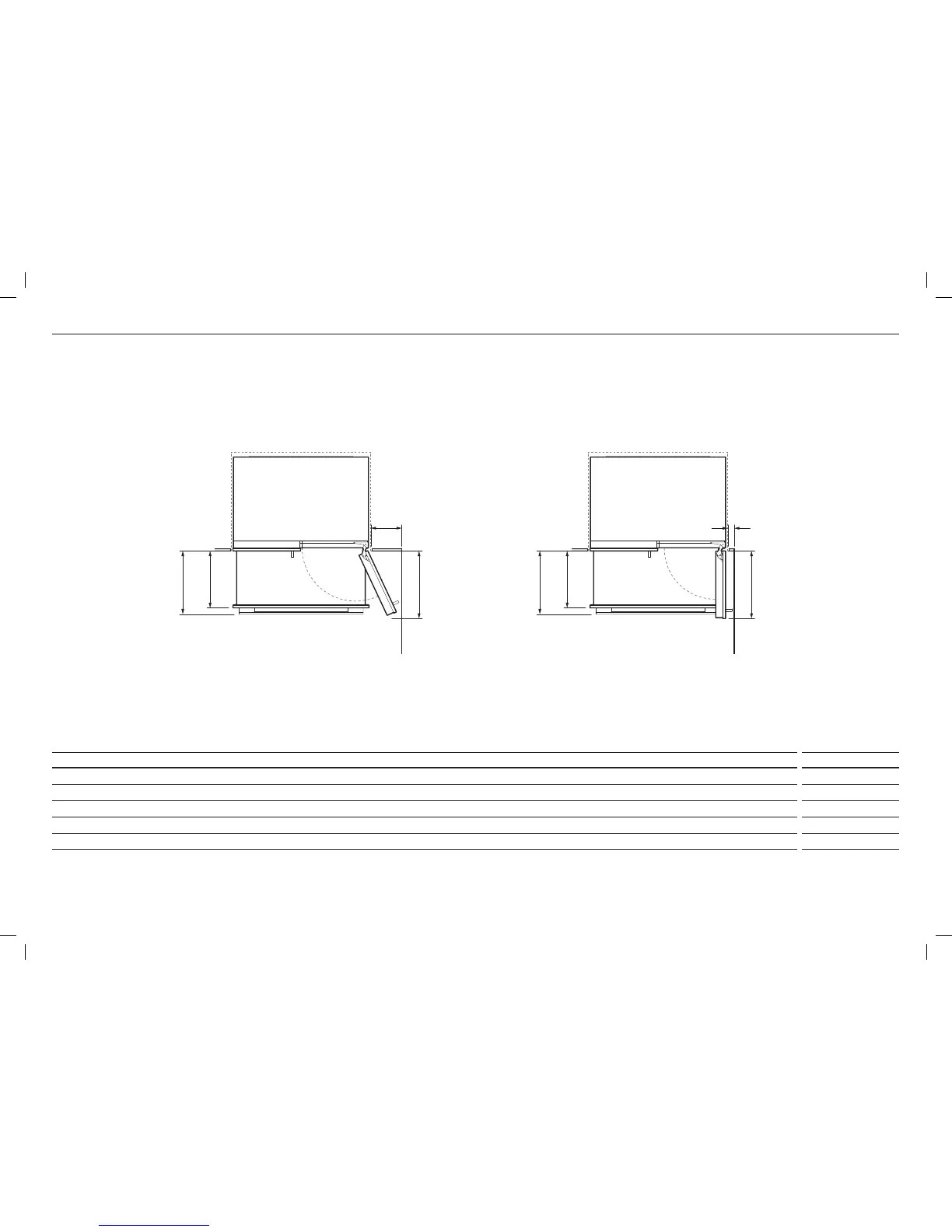

4 PRODUCT AND CAVITY DIMENSIONS WITH STANDARD DOOR PANELS
RS90A
RS90AU
DOOR CLEARANCE DIMENSIONS mm
A
Depth of door (widest opening) measured from front of door 445
B
Depth of drawer (open) measured from front of drawer, including handle 400
C
Depth of drawer (open) measured from front of drawer, excluding handle 360
D
Minimum door clearance to adjacent wall* (115° – full internal access) 300
E
Minimum door clearance to adjacent wall* (90° – reduced internal access) 100
* Measured from front cabinetry edge, includes 2mm cabinetry gap.
90° DOOR OPENING115° DOOR OPENING
[FULL ROTATION]
AB
C
D
B
C
A
E
Wall Wall
90° DOOR OPENING115° DOOR OPENING
(FULL ROTATION)
