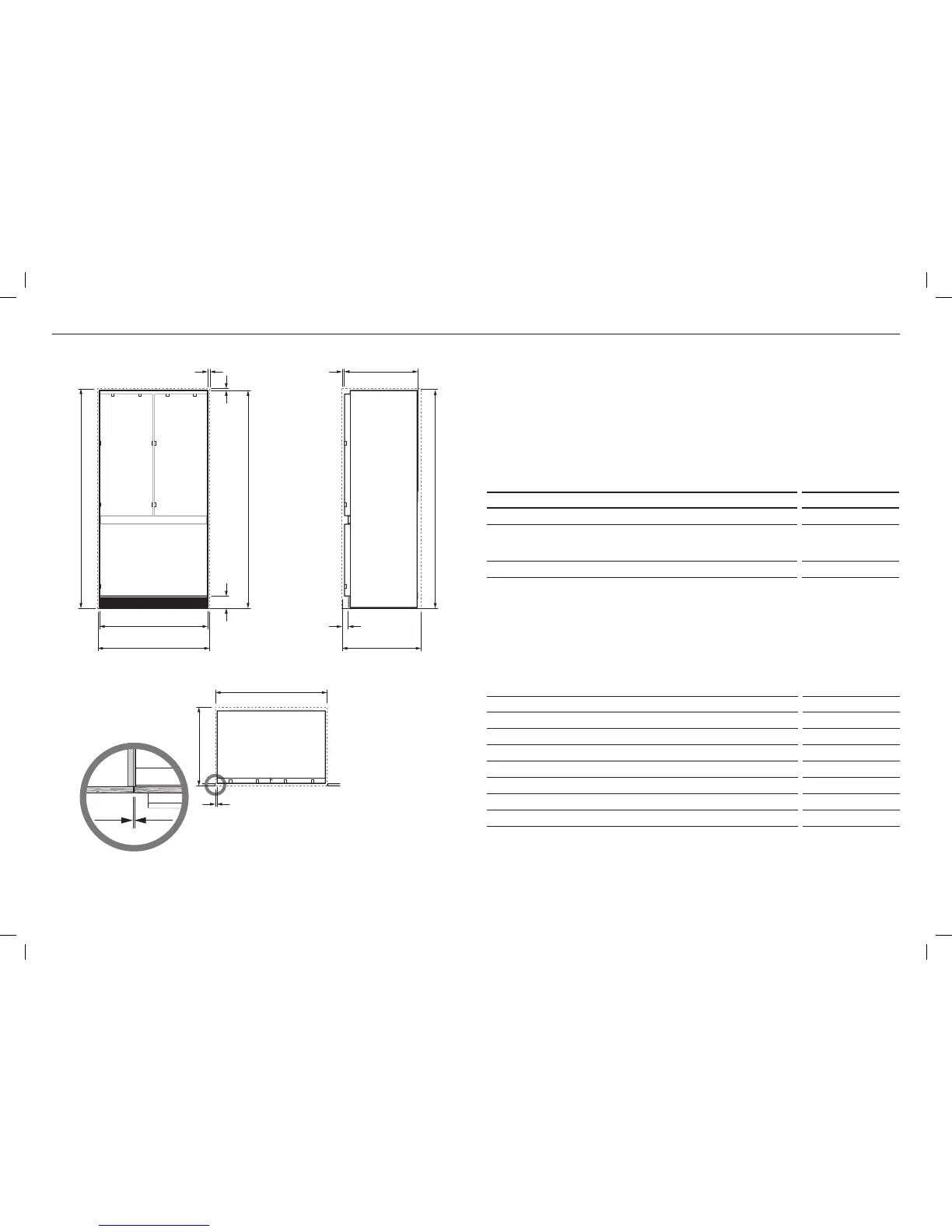

5 PRODUCT AND CAVITY DIMENSIONS WITHOUT DOOR PANELS
RS90A model shown only.
When designing custom door panels, these are only available for non-Ice & Water models.
RS90A
PRODUCT DIMENSIONS
mm
D
Overall height of product* 1798
E
Overall width of product 890
F
Minimum cabinetry gap clearance from edge of custom product** 4
G
Overall depth of product (excluding front door panels) 606
H
Depth of toe-kick (measured from front of door panels)*** 50
I
Height of grill/toekick* 100
J
Depth of product front panels (excludes handles)*** 18
* Includes mounted feet and top brackets.
** For custom door panel dimensions refer to ‘Custom door panel dimensions’ page.
*** Door panels to be manufactured and fitted by cabinetmaker, max. thickness 18mm.
RS90A
CAVITY DIMENSIONS mm
A
Overall height of cavity 1800
B
Overall width of cavity
when adjoining cabinetry can share 4 mm door gap
when adjoining cabinetry cannot share 4 mm door gap
900
904
C
Overall depth of cavity 650
Total front panel width with required gaps at sides = 904mm ( E product width + 2 x F cabinetry gaps).
For flush cabinet situation where the gap cannot be shared between the fridge and adjoining cabinet, make the
cavity width 904mm and open totally within itself.
E
B
H
C
A
A
I
J
G
C
B
F
F
F
D
4
Note: Shown with custom
panel attached to fridge
Note: shown with custom
door panels attached to fridge
TOP VIEW
Flush with front of cabinetry
E
B
H
C
A
A
I
J
G
C
B
F
F
F
D
4
Note: Shown with custom
panel attached to fridge
PROFILE VIEWFRONT VIEW
