Fisher & Paykel OR36SDBGX Installation Instructions

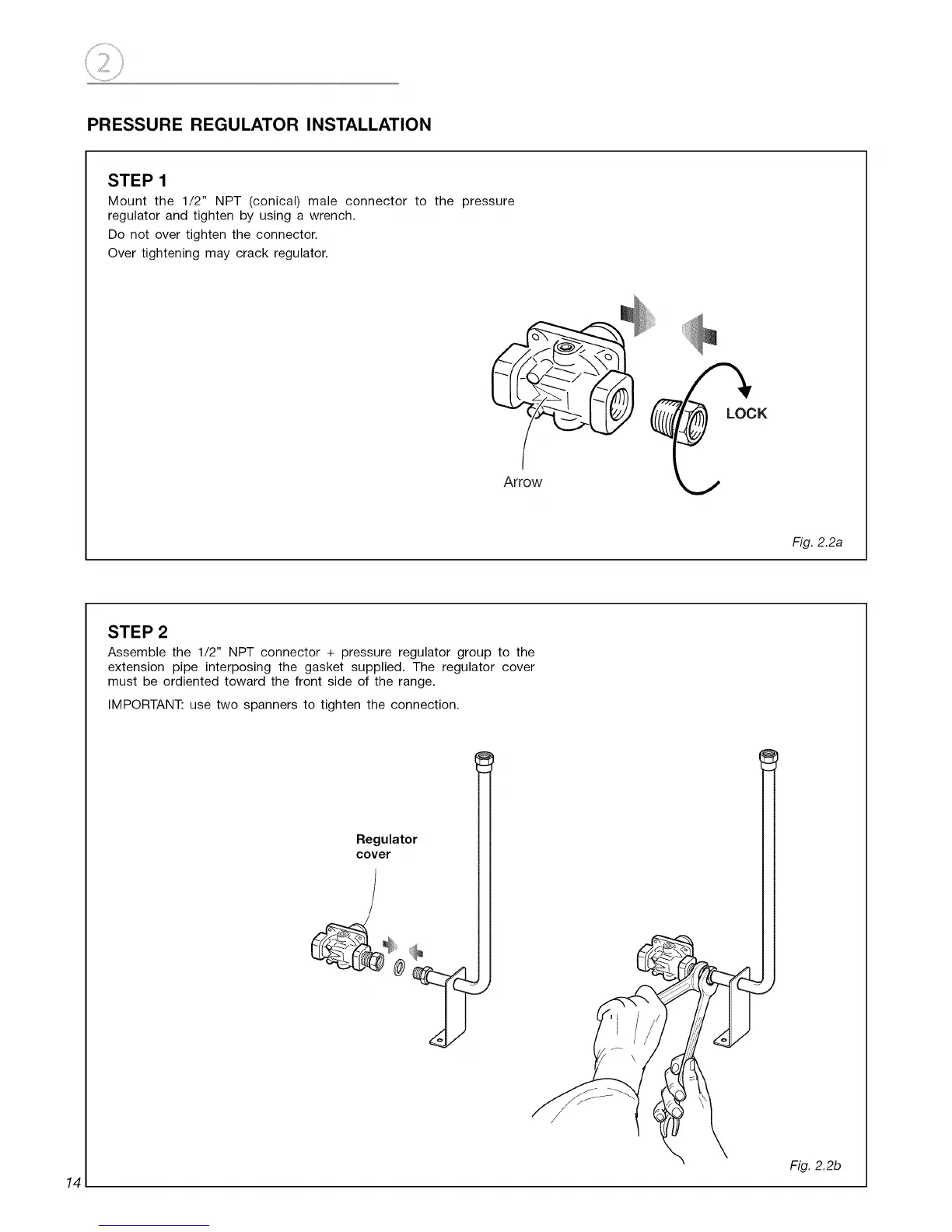

PRESSURE REGULATOR INSTALLATION
STEP 1
Mount the 1/2" NPT (conical) male connector to the pressure
regulator and tighten by using a wrench.
Do not over tighten the connector.
Over tightening may crack regulator.
i
'f /
i
LOCK
Arrow
Fig. 2.2a
STEP 2
Assemble the 1/2" NPT connector + pressure regulator group to the
extension pipe interposing the gasket supplied. The regulator cover
must be ordiented toward the front side of the range.
IMPORTANT: use two spanners to tighten the connection.
Regulator
cover
14
Fig. 2.2b
