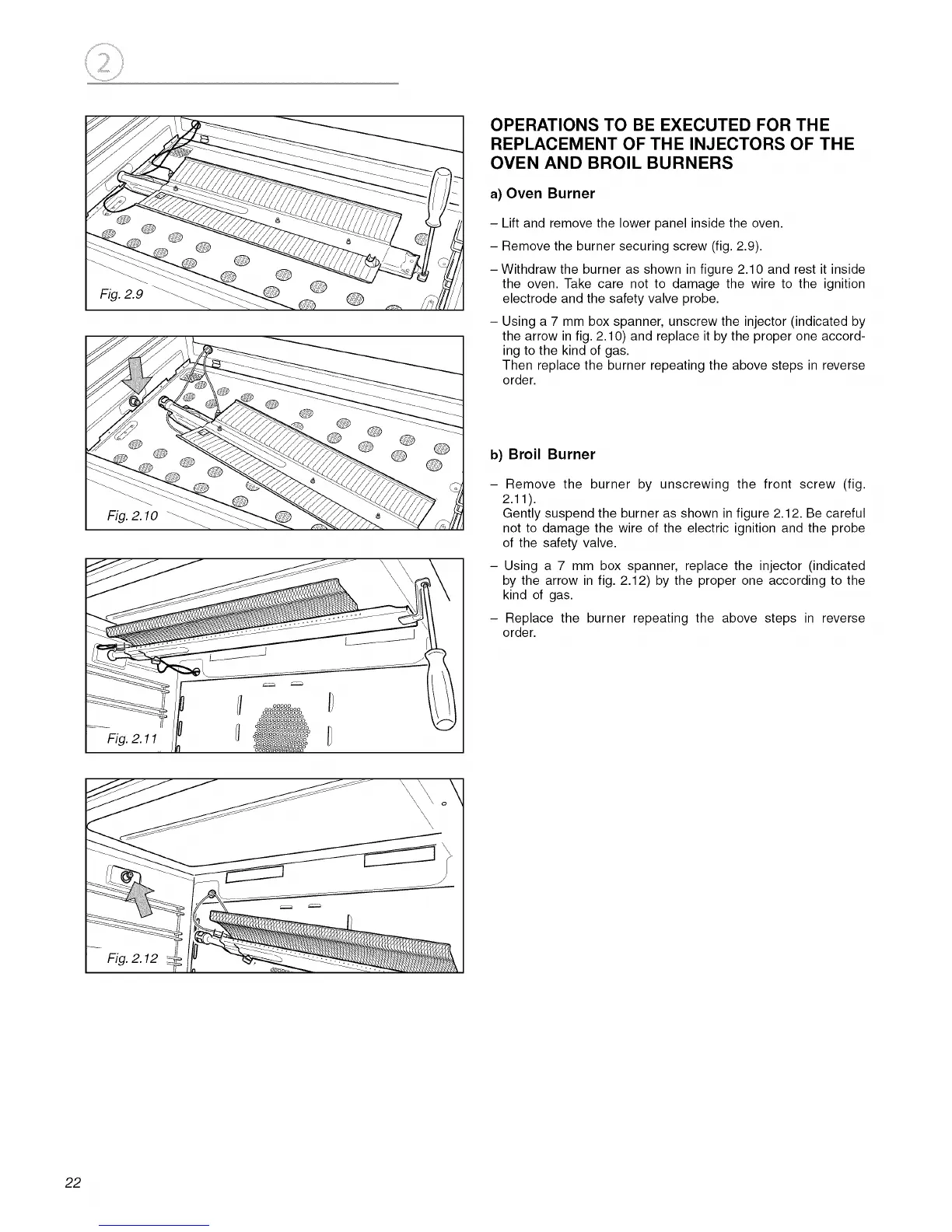

OPERATIONS TO BE EXECUTED FOR THE
REPLACEMENT OF THE INJECTORS OF THE
OVEN AND BROIL BURNERS
a) Oven Burner
i
i
i
Lift and remove the lower panel inside the oven.
Remove the burner securing screw (fig. 2.9).
Withdraw the burner as shown in figure 2.10 and rest it inside
the oven. Take care not to damage the wire to the ignition
electrode and the safety valve probe.
Using a 7 mm box spanner, unscrew the injector (indicated by
the arrow in fig. 2.10) and replace it by the proper one accord-
ing to the kind of gas.
Then replace the burner repeating the above steps in reverse
order.
b) Broil Burner
Remove the burner by unscrewing the front screw (fig.
2.11).
Gently suspend the burner as shown in figure 2.12. Be careful
not to damage the wire of the electric ignition and the probe
of the safety valve.
Using a 7 mm box spanner, replace the injector (indicated
by the arrow in fig. 2.12) by the proper one according to the
kind of gas.
Replace the burner repeating the above steps in reverse
order.
