Fisher & Paykel OR36SDBGX Installation Instructions

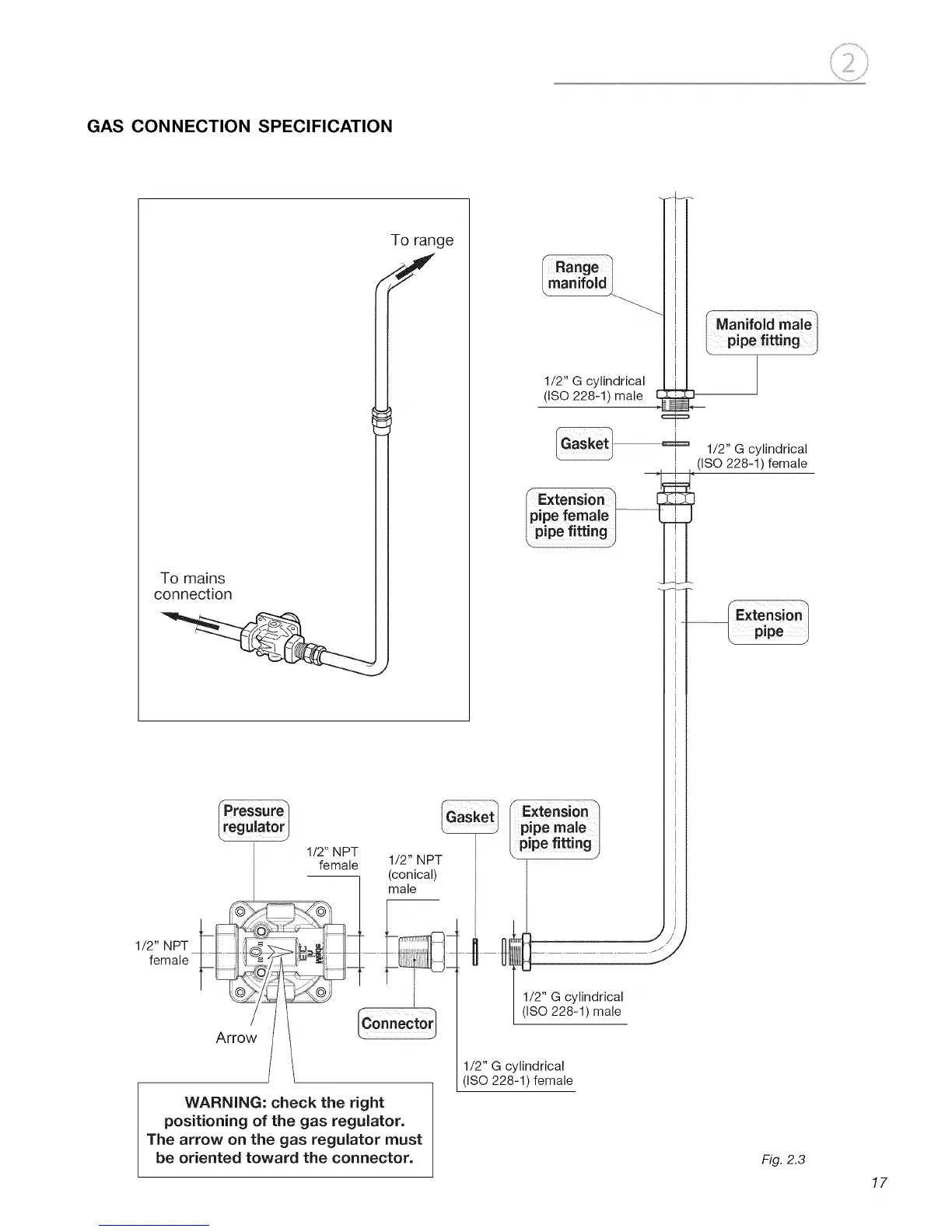

GAS CONNECTION SPECIFICATION
To range
f
To mains
connection
Pressurel
regulator_
1/2" NPT
female
1/2" NPT
(conical)
male
I Range-1 1
manifold
1/2" G cylindrical _L
(ISO 228-1) male _
1/2" G cylindrical
, (ISO 228-1) female
pipe female I _ J
"p'pe fitt!ng/ J_
E×tensiol
pipe
pipe male
pipe fitting
1/2" NPT
female
Arrow
Ioooooc,o 1
WARNING: check the right
positioning of the gas regulator.
The arrow on the gas regulator must
be oriented toward the connector.
1/2" G cylindrical
(ISO 228-1) male
1/2" G cylindrical
(ISO 228-1) female
Fig. 2.3
17
