Fisher & Paykel OR36SDBGX Installation Instructions

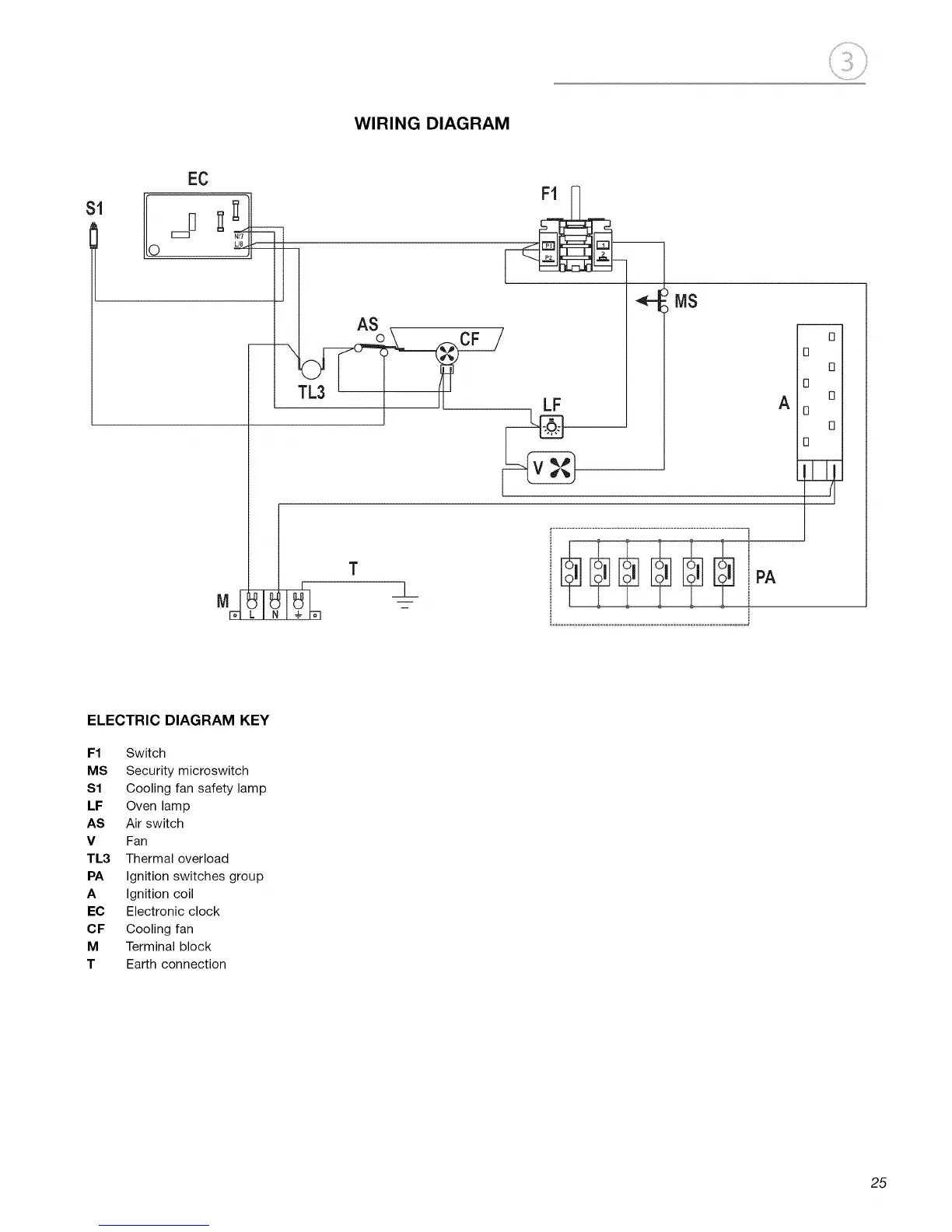

WIRING DIAGRAM
$1
©
EC
MS
AS, CF
T
i
D
]
O
]
D
A ]
[1
]
PA
ELECTRIC DIAGRAM KEY
F1 Switch
MS Security microswitch
S1 Cooling fan safety lamp
LF Oven lamp
AS Air switch
V Fan
TL3 Thermal overload
PA Ignition switches group
A Ignition coil
EC Electronic clock
CF Cooling fan
M Terminal block
T Earth connection
25
