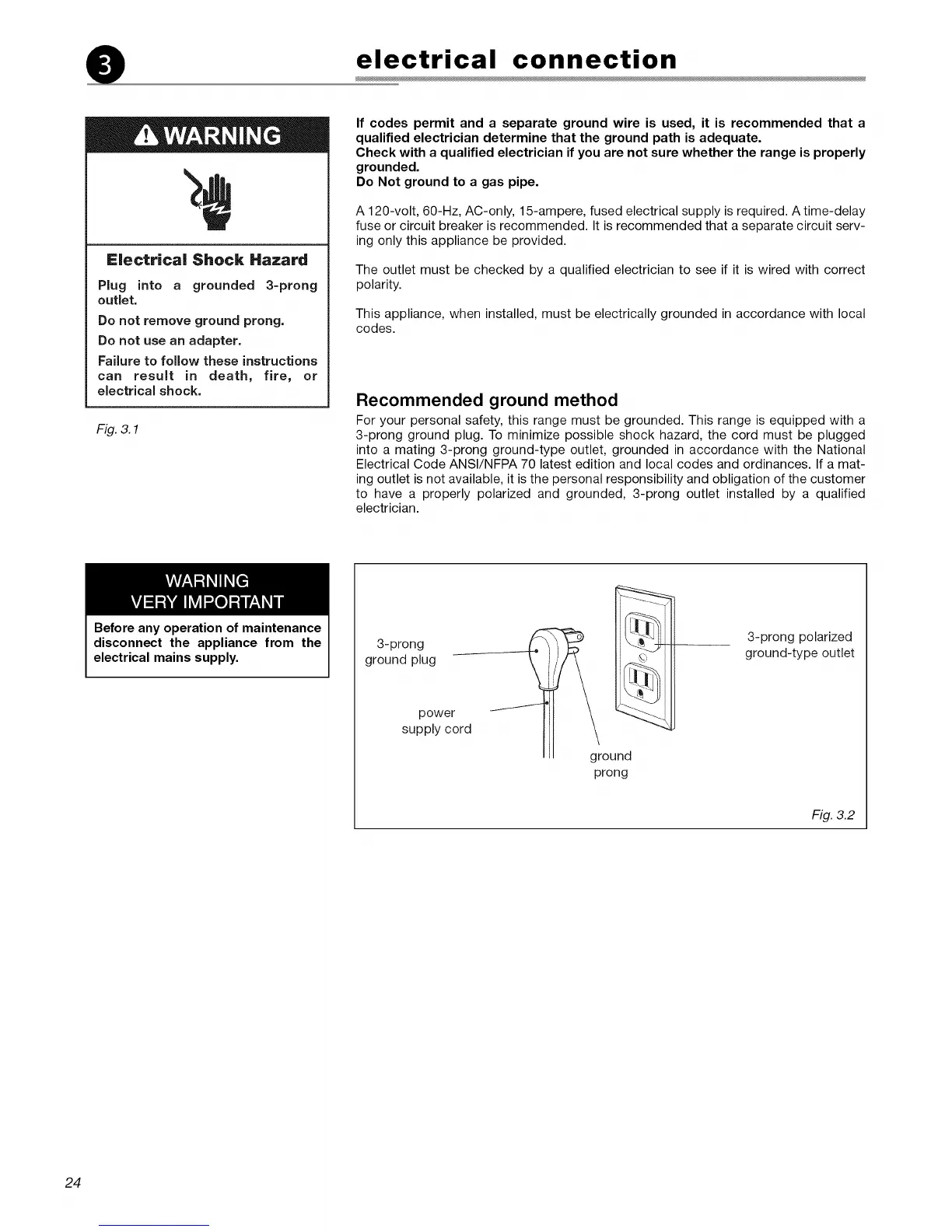

electrical connection
Slectrica| Shock Hazard
Plug into a grounded 3-prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
Fig. 3.1
If codes permit and a separate ground wire is used, it is recommended that a
qualified electrician determine that the ground path is adequate.
Check with a qualified electrician if you are not sure whether the range is properly
grounded.
Do Not ground to a gas pipe.
A 120-volt, 60-Hz, AC-only, 15-ampere, fused electrical supply is required. A time-delay
fuse or circuit breaker is recommended. It is recommended that a separate circuit serv-
ing only this appliance be provided.
The outlet must be checked by a qualified electrician to see if it is wired with correct
polarity.
This appliance, when installed, must be electrically grounded in accordance with local
codes.
Recommended ground method
For your personal safety, this range must be grounded. This range is equipped with a
3-prong ground plug. To minimize possible shock hazard, the cord must be plugged
into a mating 3-prong ground-type outlet, grounded in accordance with the National
Electrical Code ANSI/NFPA 70 latest edition and local codes and ordinances. If a mat-
ing outlet is not available, it is the personal responsibility and obligation of the customer
to have a properly polarized and grounded, 3-prong outlet installed by a qualified
electrician.
Before any operation of maintenance
disconnect the appliance from the
electrical mains supply.
3-prong
ground plug
power
supply cord
ground
prong
3-prong polarized
ground-type outlet
Fig. 3.2
24
