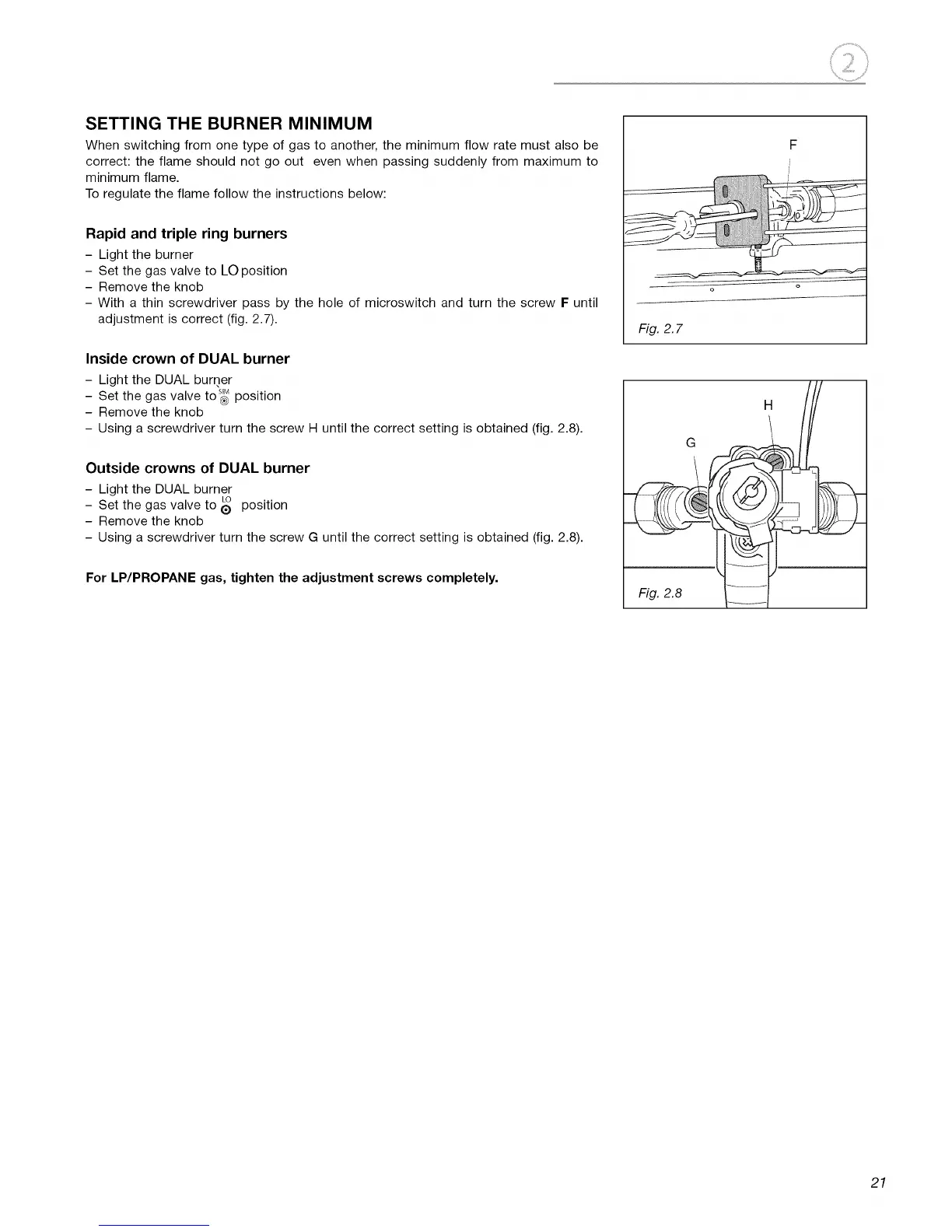

SETTING THE BURNER MINIMUM
When switching from one type of gas to another, the minimum flow rate must also be
correct: the flame should not go out even when passing suddenly from maximum to
minimum flame.
To regulate the flame follow the instructions below:
Rapid and triple ring burners
- Light the burner
- Set the gas valve to LO position
- Remove the knob
- With a thin screwdriver pass by the hole of microswitch and turn the screw F until
adjustment is correct (fig. 2.7).
Inside crown of DUAL burner
- Light the DUAL burner
- Set the gas valve toS_ position
- Remove the knob
- Using a screwdriver turn the screw H until the correct setting is obtained (fig. 2.8).
Outside crowns of DUAL burner
- Light the DUAL burner
Set the gas valve to position
- Remove the knob
- Using a screwdriver turn the screw G until the correct setting is obtained (fig. 2.8).
For LP/PROPANE gas, tighten the adjustment screws completely.
o
o
Fig.2.7
G
Fig. 2.8
H
21
