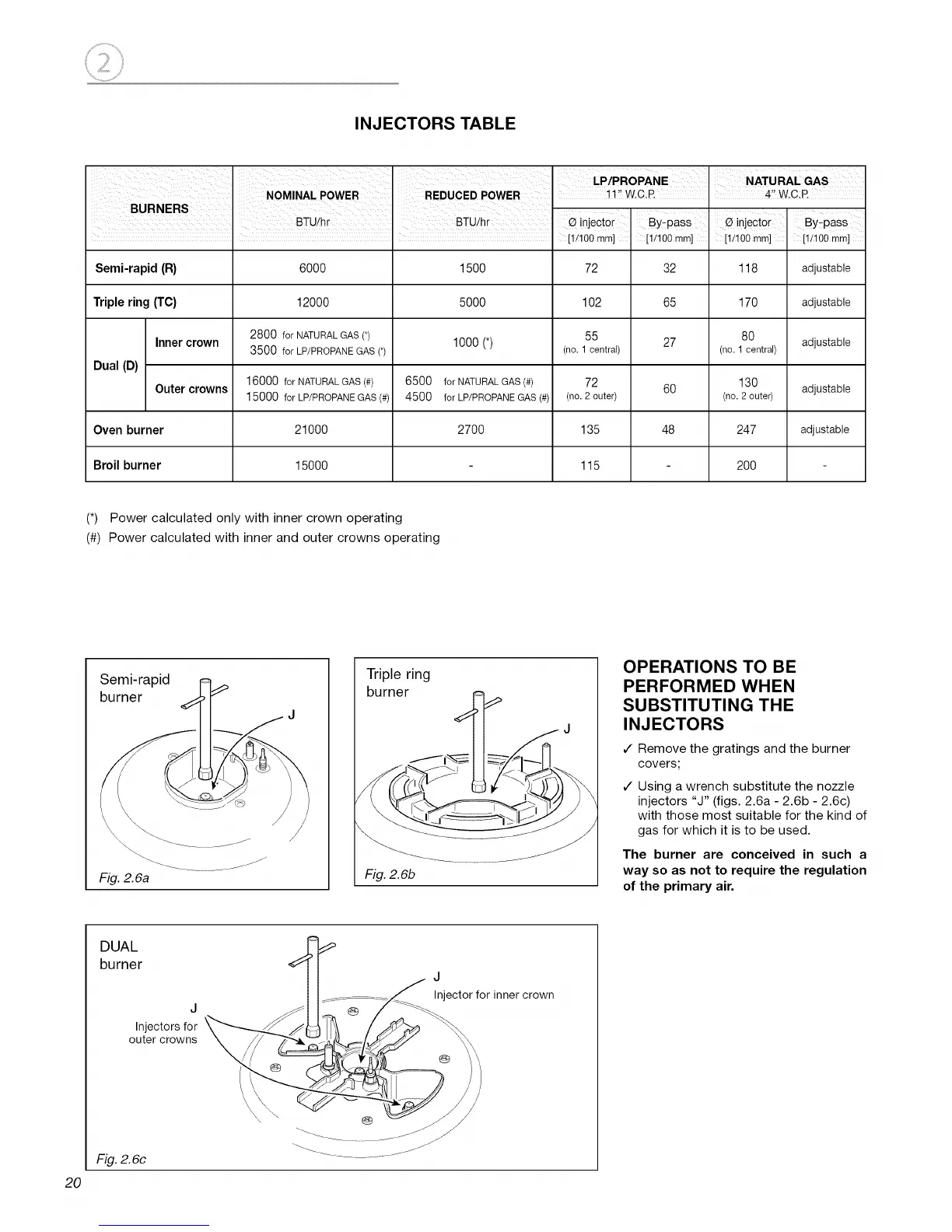

INJECTORS TABLE
I I [1/100 mm] [1/100 mm] [1/100 mm] [1/100 mm]
Semi-rapid (R) 6000 1500 72 32 118 adjustable
Triple ring (TO) 12000 5000 102 65 170 adjustable
2800 for NATURAL GAS (_) 55 80
Innercrown 3500 for LP/PROPANE GAS (_) 1000 (*) (no. 1 central) 27 (no. 1 central) adjustable
Dual (D)
16000 for NATURAL GAS (#) 6500 for NATURAL GAS (#) 72 130
Outer crowns 60 adjustable
15000 for LP/PROPANE GAS (#) 4500 for LP/PROPANE GAS (#) (no. 2 outer) (no. 2 outer)
Oven burner 21000 2700 135 48 247 adjustable
Broil burner 15000 115 200
(*) Power calculated only with inner crown operating
(#) Power calculated with inner and outer crowns operating
Semi-rapid
burner
Fig. 2.6a
J
Triple ring
burner
Fig. 2.6b
OPERATIONS TO BE
PERFORMED WHEN
SUBSTITUTING THE
INJECTORS
¢" Remove the gratings and the burner
covers;
¢" Using a wrench substitute the nozzle
injectors "J" (figs. 2.6a - 2.6b - 2.6c)
with those most suitable for the kind of
gas for which it is to be used.
The burner are conceived in such a
way so as not to require the regulation
of the primary air.
DUAL
burner
J
Injectors for
outer crowns
J
Injector for inner crown
20
Fig. 2.6c
