Fisher & Paykel OR36SDBGX Installation Instructions

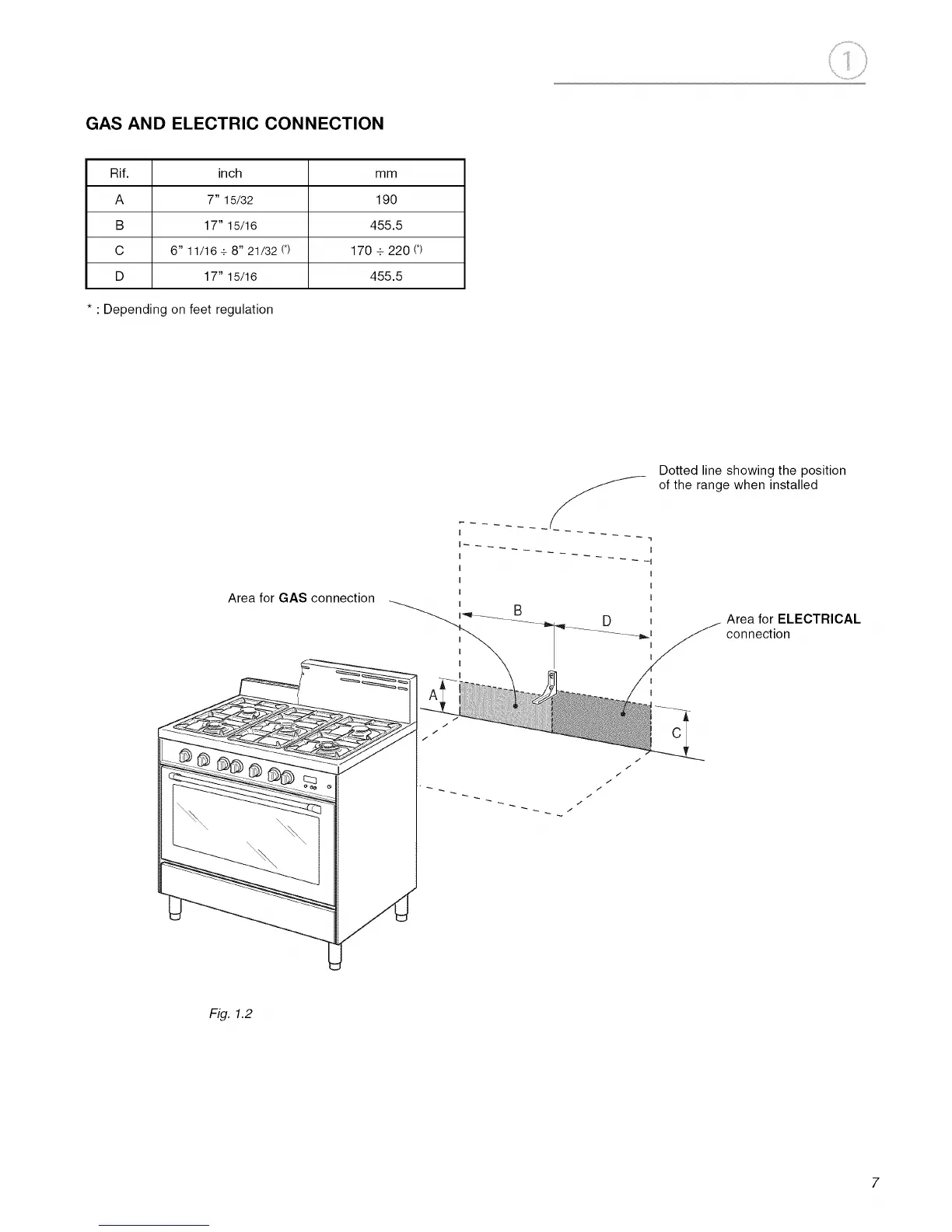

GAS AND ELECTRIC CONNECTION
Rif. inch mm
A 7" 15/32 190
B 17" 15/16 455.5
C 6" 11/16 + 8" 21/32 (*) 170 + 220 (*)
D 17" 15/16 455.5
* •Depending on feet regulation
Area for GAS connection
\\
\
Dotted line showing the position
of the range when installed
Area for ELECTRICAL
connection
Fig. 1.2
7
