Fisher F44 User Manual

ASSEMBLY
Tool Required: #1 Phillips Screwdriver
●
1 • Remove the Screw from the Armrest.
• Slide the Armrest over the end
of the S-Rod.
• Attach with Screw and Lock-Nut.
●
2 Attach Control Housing with Screws;
install back screw first.
NOTE:
• The Handgrip fits under the Control
Housing.
Handgrip may partially cover one
mounting hole. Peel back
Handgrip to expose the front hole.
• Ensure the headphone jack cover
is properly seated before
attaching the control housing.

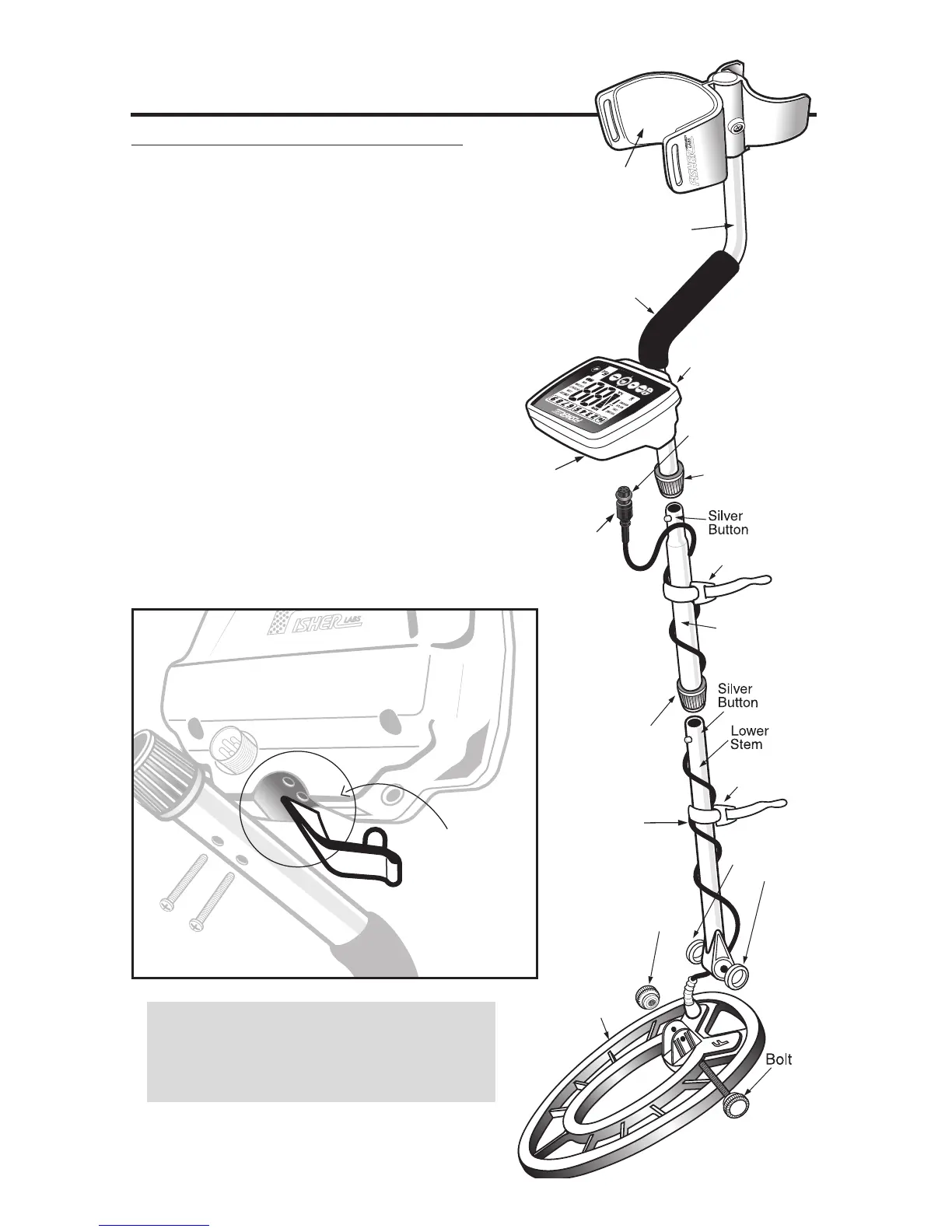

Handgrip
Searchcoil
Cable
Cable
Plug
O-Ring
S-Rod
Middle
Stem
Velcro Strap
Velcro Strap
Locking
Collar
Locking
Collar
Headphone
Jack
Knurled
Knob
Coil
Washer
Battery
Compartment
(back side)
Armr
est
*
Triangulated
Concentric
Elliptical
Waterproof
Searchcoil
Place Headphone
Jack Cover in
recessed pocket
so it is level with
the surface of the
housing and held
in place between
the housing
and S-Rod.
Caution:
Forcing in MIDDLE STEM with CAM LOCK raised may
form a burr on cam lock. If this happens, remove burr with
knife to allow insertion.
*
Note: Very tall users can purchase the optional
Extended Lower Stem (TUBE5X), for extended reach.
5

Fisher F44 Specifications

General

Operating Frequency	7.69 kHz
Weight	2.3 lbs (1.04 kg)
Adjustable Sensitivity	Yes
Pinpoint Mode	Yes
Battery Life	25-30 hours
Warranty	5 years
Search Modes	Jewelry, Coin, Custom
Display	LCD
Audio Tones	4
Batteries	2 x AA
Ground Balance	Automatic
Search Coil	11" waterproof coil
Discrimination	Adjustable
Target ID	0-99 numeric target ID
Discrimination Patterns	Custom
Water Resistance	No (control box only, coil is waterproof)
