Fisher FIELDVUE DVC6200 Quick Start Guide

Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
January 2017
22
Note
The Natural Gas Certified, Single Seal device option simplifies sealing requirements. Natural Gas Certified, Single Seal instruments
can be identified by the natural gas approval label shown in figure 18. Read and follow all local, regional, and federal wiring
requirements for natural gas installations. Contact your Emerson Automation Solutions sales office
for information on obtaining a
Natural Gas Certified, Single Seal DVC6200 digital valve controller.

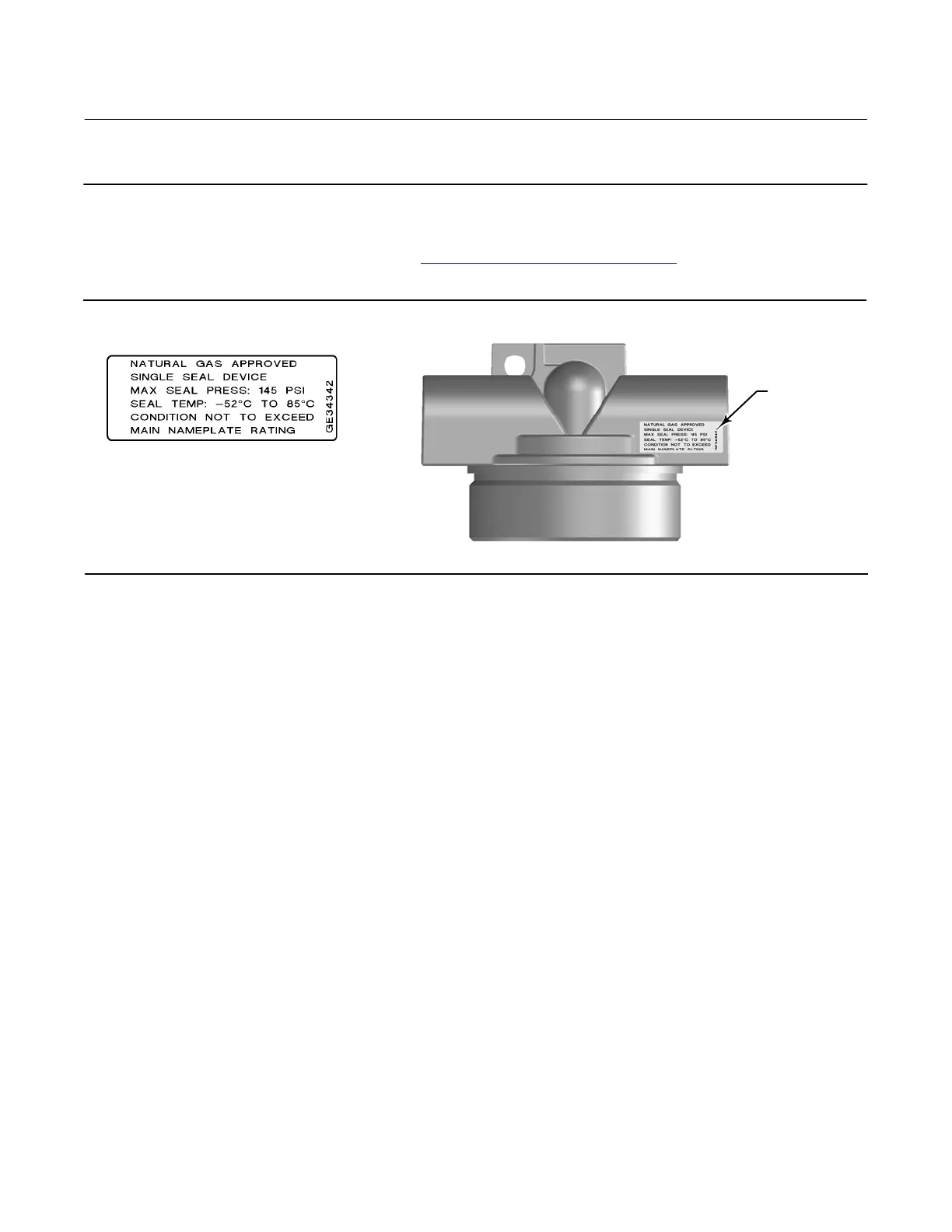

Figure 18. Label for Natural Gas Certified Terminal Box
LABEL LOCATED
ON TOP OF
TERMINAL BOX
X0748
4. Connect the pneumatic supply line to the 1/4 NPT IN connection on the filter regulator.
5. Proceed to Step 3—Connect the Electrical Wires on page 23.

Fisher FIELDVUE DVC6200 Specifications

General

Type	Digital Valve Controller
Operating Temperature Range	-40 to 85 °C (-40 to 185 °F)
Enclosure Rating	NEMA 4X, IP66
Input Signal	4-20 mA, HART
Communication Protocol	HART
Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Diagnostics	Valve signature
Approvals	ATEX, IECEx, FM, CSA
Power Supply	Loop powered
