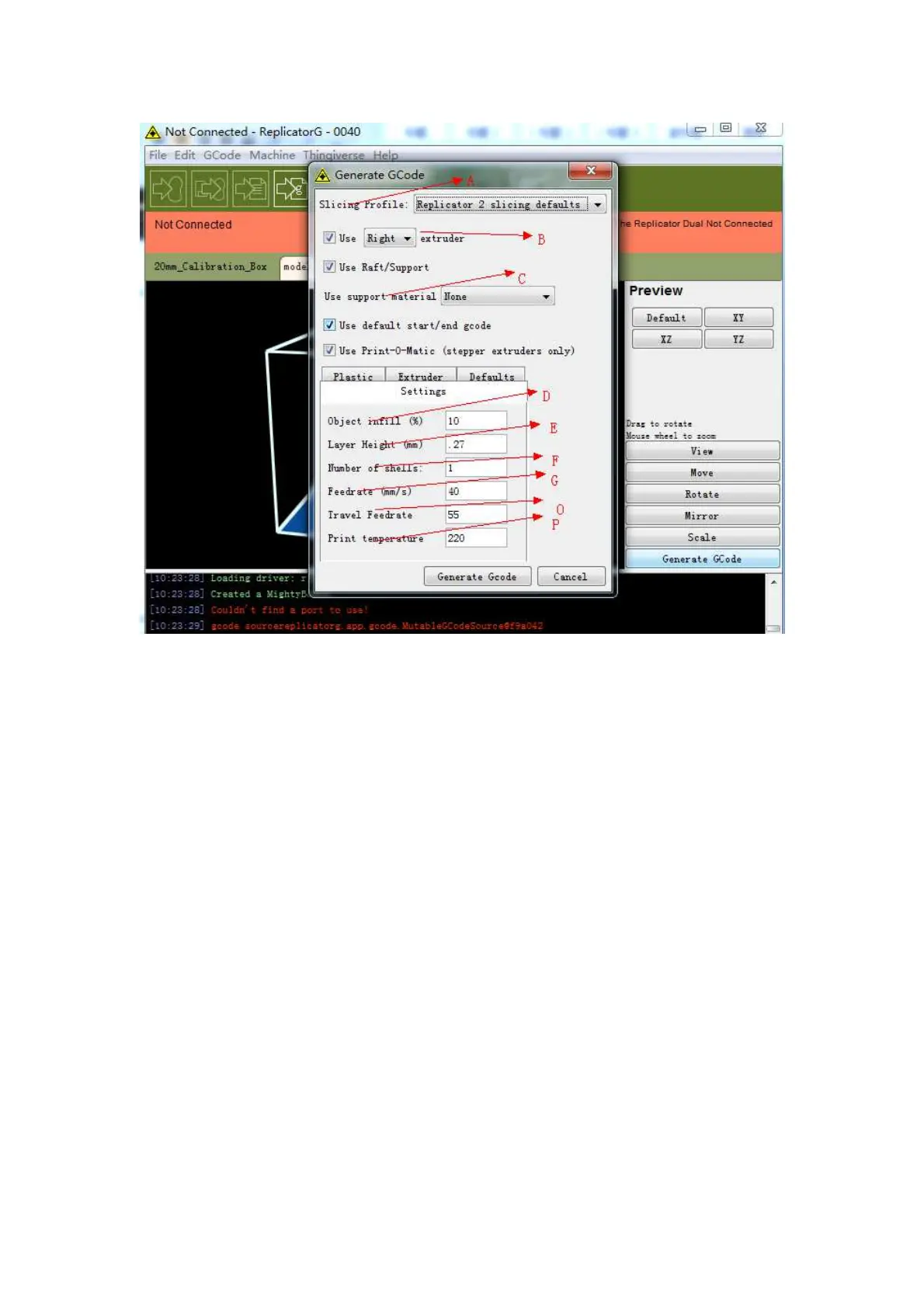

A: Slicing profile. Select replicator slicing defaults
B: Left and right extruder print selecting. Left means printing with the left extruder,
while right means printing with the right extruder.
C: If your sample is in dangling structure, print support is needed. None means no
support. Exterior means surface support. Full support means all support.
D: Object infill. 100% is a solid print. We usually choose 10% fill in order to save
filament.
E: Layer Height. Layer thickness is related to precision. Generally, the minimum
print thickness is 0.18mm. 0.27mm is most commonly used.
F: Number of shells is the wall thickness -- usually set at 1
G: Feedrate is generally in the range of 70-30
O: Travel feedrate is generally in the range of 70-30
P: Print temperature is 220 degrees
Click G code Generation, a progress bar will appear
