Initial hardware installation

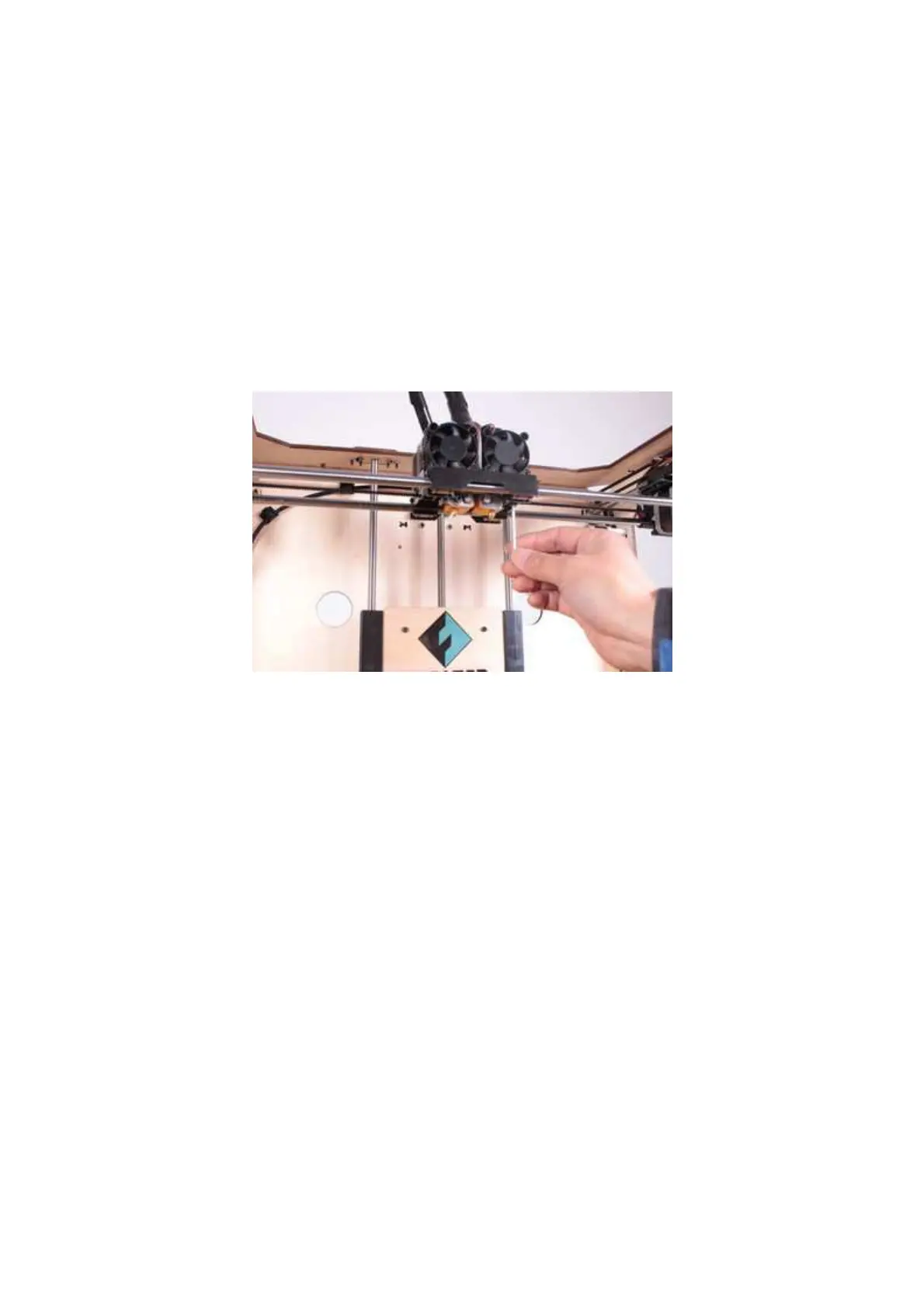

Start by installing the extruder. You’ll need two black screws from the bolt tool box
found in the accessory box, and the appropriate hex wrench.
First, lower the build platform using one of the methods described above (either
turning the screw or gently pushing down with both hands). Holding the extruder by
its sides, take it out of the accessory sleeve and position it on the extruder seat with
the fan facing forward. Align with the screw holes and fasten with the black screws.
Next is the installation of the filament bracket. If you have two brackets, install one
on each side; if you have only one, install it on the left hand side (when viewing the
Creator from the front).
The installation of the filament bracket is very simple -- just insert it into the circular
opening and tighten the nut behind.
Then install the filament guide tube to the vacancy upon the extruder.
Put one end of the guide tube into the vacancy, buckle with the thumb and index
finger to put in the vacancy on the top of the extruder.
