Flavel Windsor - Page 22

Supplied By www.heating spares.co Tel. 0161 620 6677

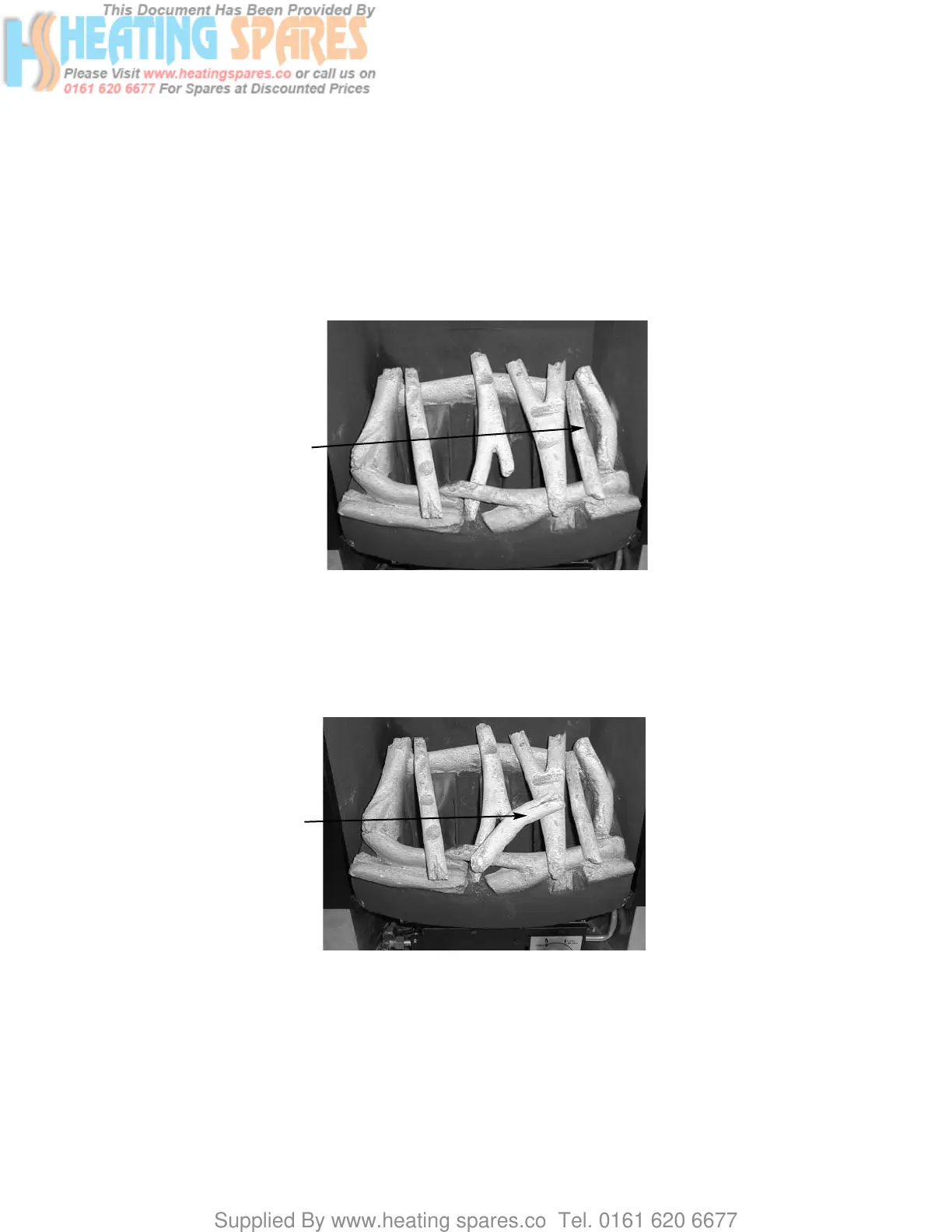

e) Position the piece of driftwood with the letter “D” stamped onto the
bottom face of it in the position at the right-hand side of the fuelbed
matrix. Ensure this piece of driftwood is located into the groove in the
front right hand side of the fuelbed matrix . See Fig. 20 below.
Fig. 20
f) Position the piece of driftwood with the letter “E” stamped onto the
bottom face of it in the position at the front centre of the fuelbed
matrix. Ensure this piece of driftwood is located into the groove on
driftwood piece “C” . See Fig. 21 below.
Fig. 21
22
Driftwood Piece
“D”
Locating groove
for driftwood
piece “D” in front
right hand side of
fuelbed matrix
Driftwood Piece
“E”
Locating groove
for driftwood piece
“E” in centre of
driftwood piece
“C” and in front
section of fuelbed
matrix
