Printed in U.S.A.
Page 18
MODEL 3200 & 3210 TIMER SERIES
Regeneration Cycle Program Setting Procedure
How to Set Regeneration Cycle Program:
The regeneration cycle program on your water conditioner
has been factory preset, however, portions of the cycle or
program may be lengthened or shortened in time to suit
local conditions.

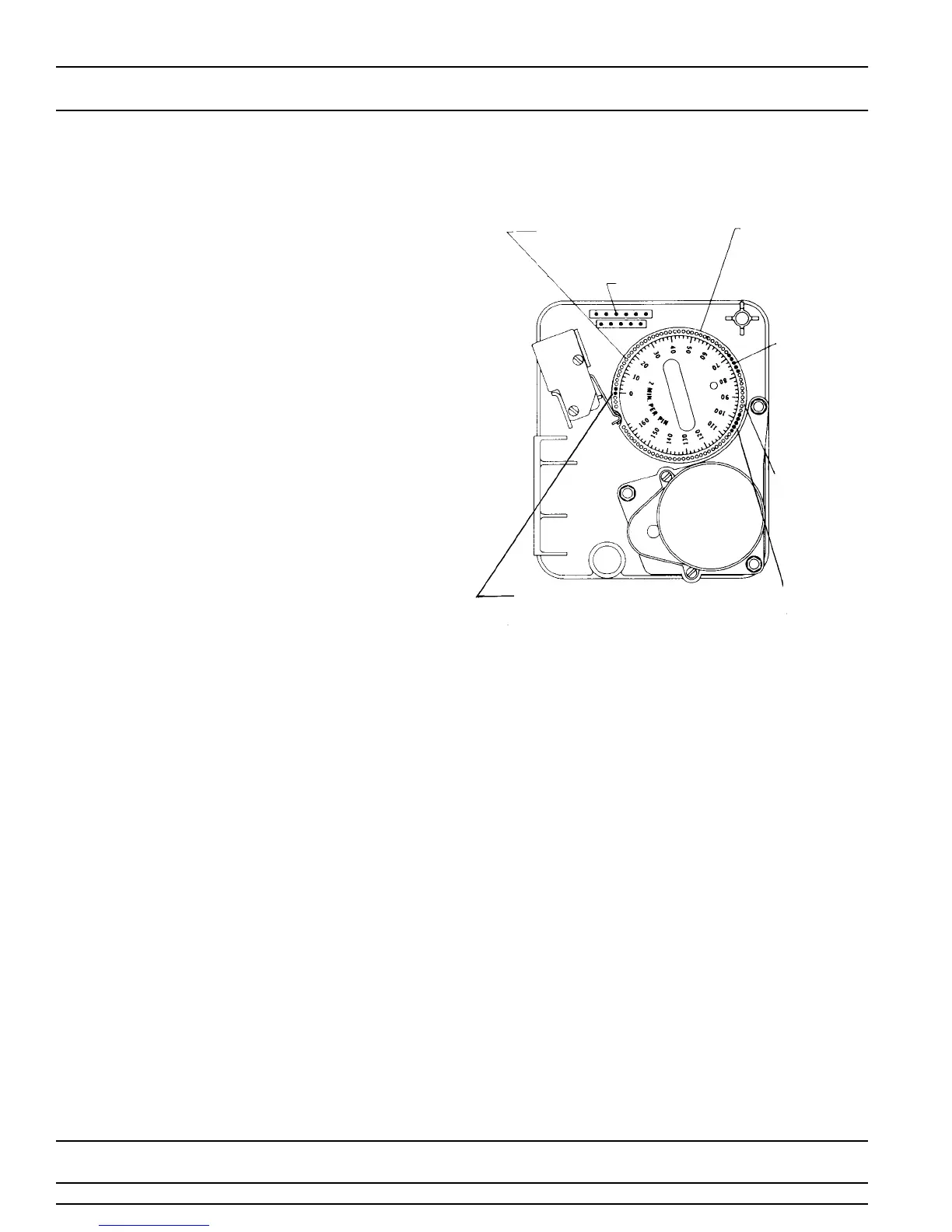

3200 & 3210 SerIes Timers (Figure to Right)
To expose cycle program wheel, grasp timer in upper left-
hand corner and pull, releasing snap retainer and
swinging time to the right
To change the regeneration cycle program, the program
wheel must be removed. Grasp program wheel and
squeeze protruding lugs toward center, lift program wheel
off timer. (Switch arms may require movement to facilitate
removal.)
Return timer to closed position engaging snap retainer in
back plate. Make certain all electrical wires locate above
snap retainer post.
Timer Setting Procedure for 3200 & 3210 Timer
How to Change the Length of Brine and Rinse Time:
The group of holes between the last pin in the pause
section and the second group of pins determines the
length of time that your unit will brine and rinse (2 min. per
hole).
To change the length of brine and rinse time, move the
backwash group of pins to give more or fewer holes in the
brine and rinse section. Number of holes times two
equals brine and rinse time in minutes.
How to Change the Length of the Backwash Time:
The group of pins after the last hole in the brine and rinse
cycle determine the length of time that the unit will
backwash (2 min. per pin).
To change the length of backwash time, add or remove
pins at the higher numbered end of this section. The
number of pins times two equals the backwash time in
minutes.
How to Change the Length of Rapid Rinse:
The second group of holes on the program wheel
determines the length of time that your water conditioner
will rapid rinse (2 min. per hole).
To change the length of rapid rinse time, add or remove
pins at the higher numbered end of this section as
required. The number of holes times two equals the rapid
rinse time in minutes.
How to Change the Length of BrIne Tank Refill Time:
The third group of pins in the program wheel determines
the length of time that your water conditioner will refill the
brine tank (2 min. per pin).
To change the length of refill time, add or remove pins at
the end of the third group of pins as required. The number
of pins times two equals the refill time in minutes.
The regeneration cycle is complete when the outer
microswitch drops off the last pin at end of the brine tank
refill section. The program wheel, however, will continue
to rotate until the inner microswitch drops into the notch
on the program wheel.
BRINE & RINSE
SECTION
(2 MIN. PER HOLE)
PIN STORAGE
PROGRAM
WHEEL FOR
CONTROL OF
REGENERATION
CYCLE
BACKWASH
SECTION
(2 MIN.
PER PIN)
RAPID RINSE
SECTION
(2 MIN.
PER HOLE)
BRINE TANK
REFILL
SECTION
(2 MIN.
PER PIN)
PAUSE
2 PINS
