Fleck 3150 User Manual

Printed in U.S.A.
Page 5

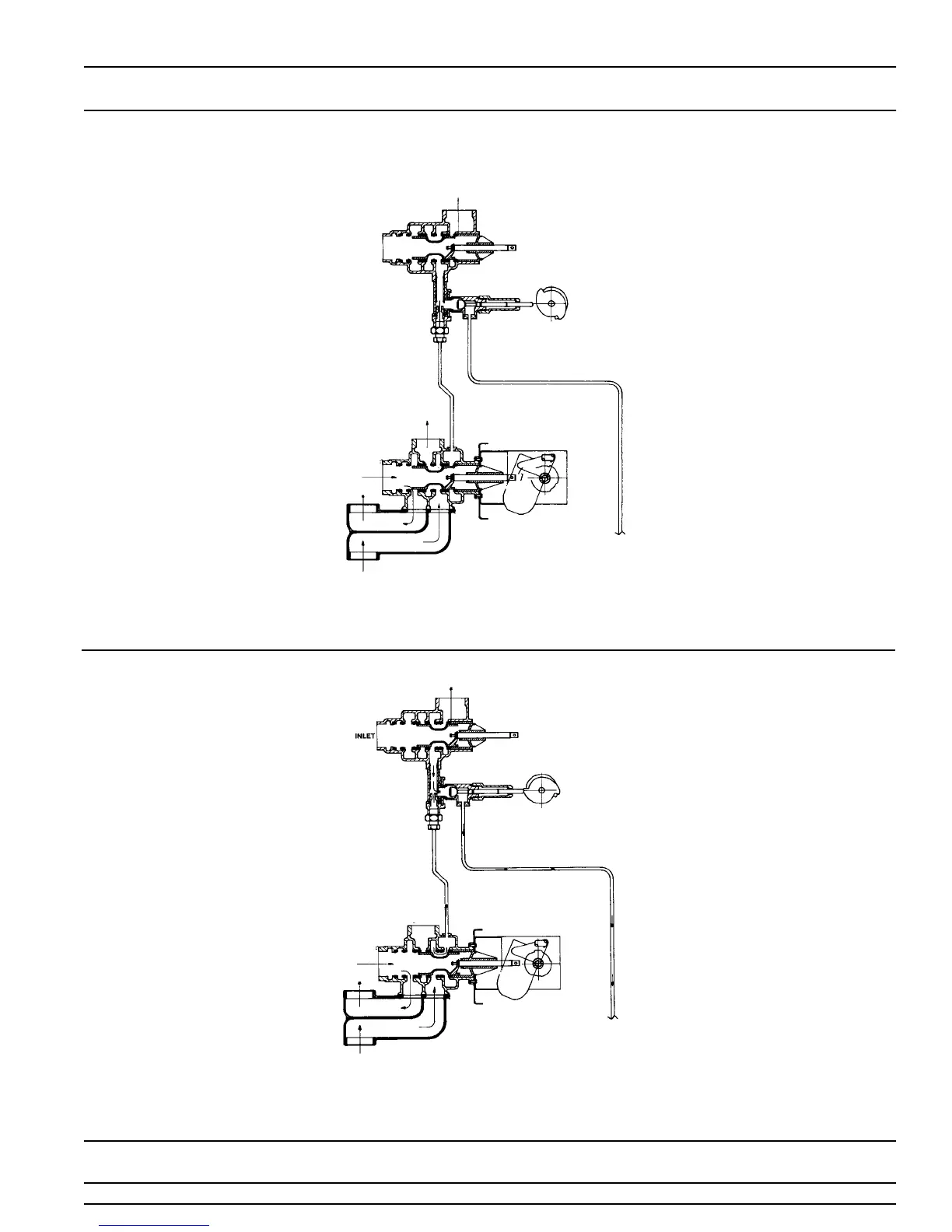

MODEL 3150 UP-FLOW
Water Conditioner Flow Diagrams (Cont’d.)
4 RAPID RINSE POSITION
Hard water enters at valve inlet  flows thru valve to the top bottom of tank  down thru mineral to bottom
distributor  back to top of tank, around the piston and out the drain. Hard water is also available at valve outlet.
5 BRINE TANK REFILL POSITION
Hard water enters at valve inlet  flows thru valve to the top of tank  down thru mineral to the bottom
distributor. Conditioned water flows up to valve outlet and thru the throat and nozzle to fill brine tank.
OUTLET
INLET
DRAIN
TO BRINE
TANK
BOTTOM OF
TANK
INLET
TOP OF TANK
OUTLET
INLET
DRAIN
INLET
TO BRINE
TANK
BOTTOM OF
TANK
TOP OF TANK
