VALVE OPERATION
Timeclock regeneration
The valve will operate normally until the number of days since last regeneration reaches the
regeneration day override setting. Once this occurs, a regeneration cycle will be initiated at the
pre-set regeneration time.
Meter delayed or immediate regeneration
As treated water is used, the volume remaining display will count down from a maximum value
to zero. Once this occurs, a regeneration will be initiated immediately or delayed to the set
regeneration time.
For example:
530 litres of treated water remainig 0 litre of treated water remaining
Meter delayed or immediate regeneration with regeneration days override set
When the valve reaches its set of days since regeneration override value, a regeneration will be
initiated immediately or at the preset regeneration time. This event occurs regardless of the
volume remaining display having reached zero litre.
1.1
Depending on the type of valve, the pictogram order can be different
Note: depending on the type of valve, some of these symbols will be used.
Backwash
Rapid rinse
Brine draw & slow rinse
Up flow
Brine refill
Brine draw & slow rinse
Down flow
Symbol means cycle not used on
Filter valve
Setting buttons
Service indicator
Valve in service: dot on
Regeneration tonight:
flashing dot
Program
indicator:
Program mode entered:
dot on
Flow indicator
Water flow:
Flashing dot
Regeneration button

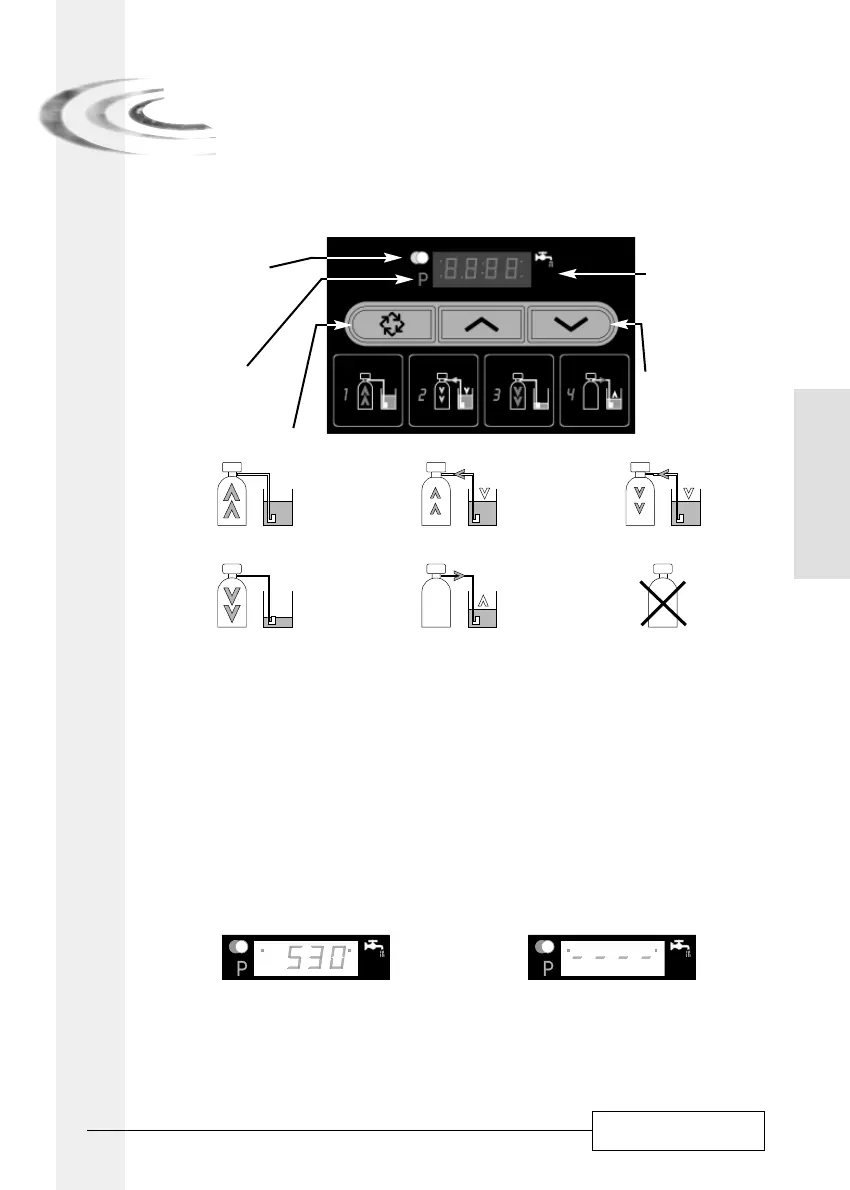

Display panel functions
