FlexRadio Systems FLEX-5000 Series User Manual

F R O N T C O N S O L E C H A P T E R 3
(6 and 6b) Mode Selection

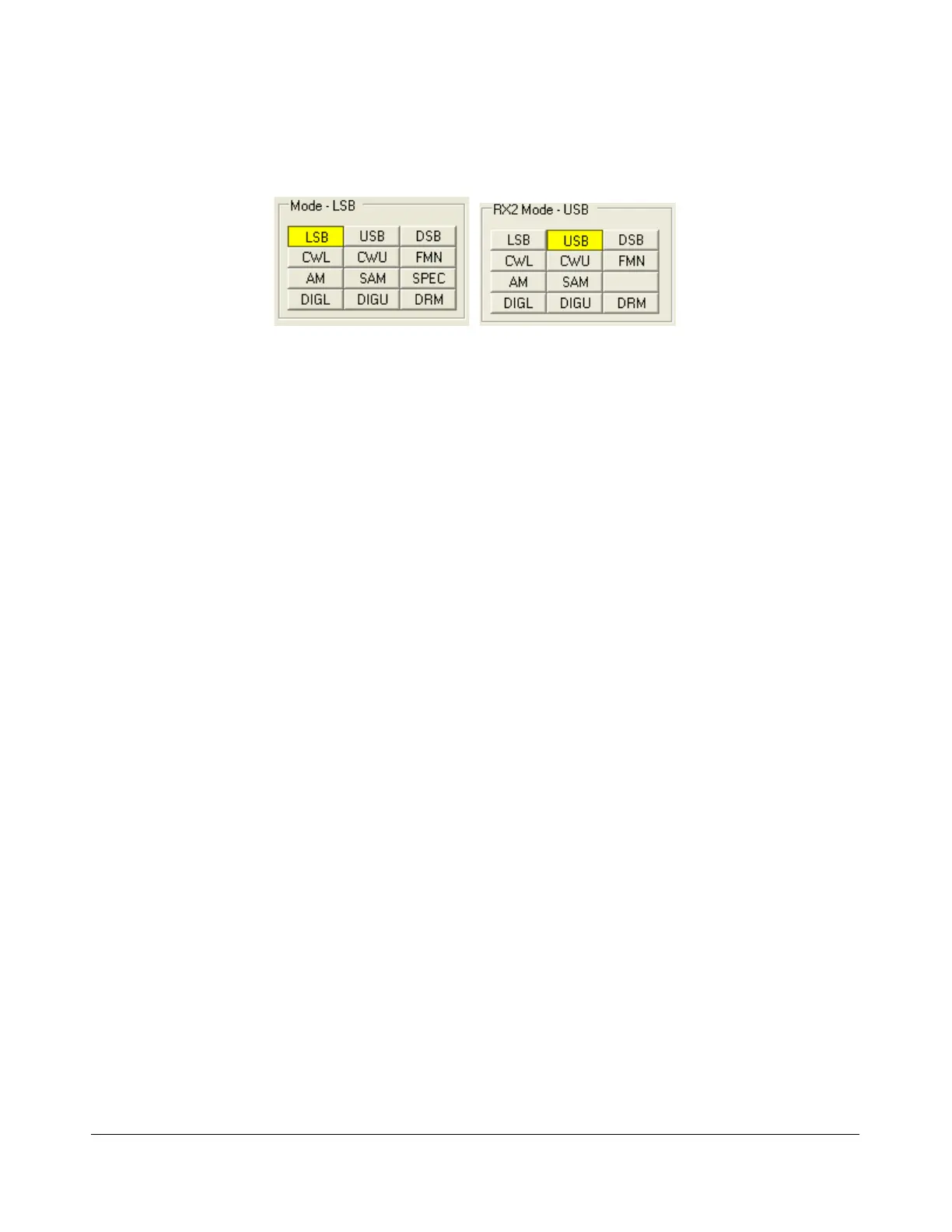

Figure 39: Primary (left) and RX2 (right) Mode Selection
The Mode Selection controls allow you to change the selected demodulation routine. Changing modes
will select the last frequency and filter used for that mode. Additionally, it will display the (configurable)
filter settings available for that mode (see Figure 41 below) as well as display the appropriate mode
specific controls on the front console (see page 59). Following is a list of the available modes:
 LSB: Lower Side Band
 USB: Upper Side Band
 DSB: Double Side Band
 CWL: CW Lower Side Band
 CWU: CW Upper Side Band
 FMN: Frequency Modulation (FM) Narrow
 AM: Amplitude Modulation
 SAM: Synchronous (PLL) Amplitude Modulation
 SPEC (RX1 only): Spectrum mode (DC IF, max bandwidth determined by the selected
sampling rate)
 DIGL: Digital Lower Side Band (Enables VAC if VAC Auto Enable is engaged, see page 93)
 DIGU: Digital Upper Side Band (Enables VAC if VAC Auto Enable is engaged, see page 93)
 DRM: Digital Radio Mondiale (requires licensed external demodulator software not available
from FlexRadio Systems; Enables VAC if VAC Auto Enable is engaged, see page 93)
Hotkeys are available in the Setup-Form, Keyboard Tab to cycle through the various modes using the
keyboard (see page 123).
[The rest of this page has been left blank intentionally]
56  2003-2008 FlexRadio Systems
