FlexRadio Systems FLEX-5000 Series User Manual

F R O N T C O N S O L E C H A P T E R 3
limited to either Panadapter or Waterfall. All the colors used in the display (text, data line, background,
etc) are completely customizable using the Setup Form-Appearance Tab, Display Sub-Tab (page 116).
We will now first discuss the display types for RX1 only, followed by the combination of RX1 and RX2.
Spectrum

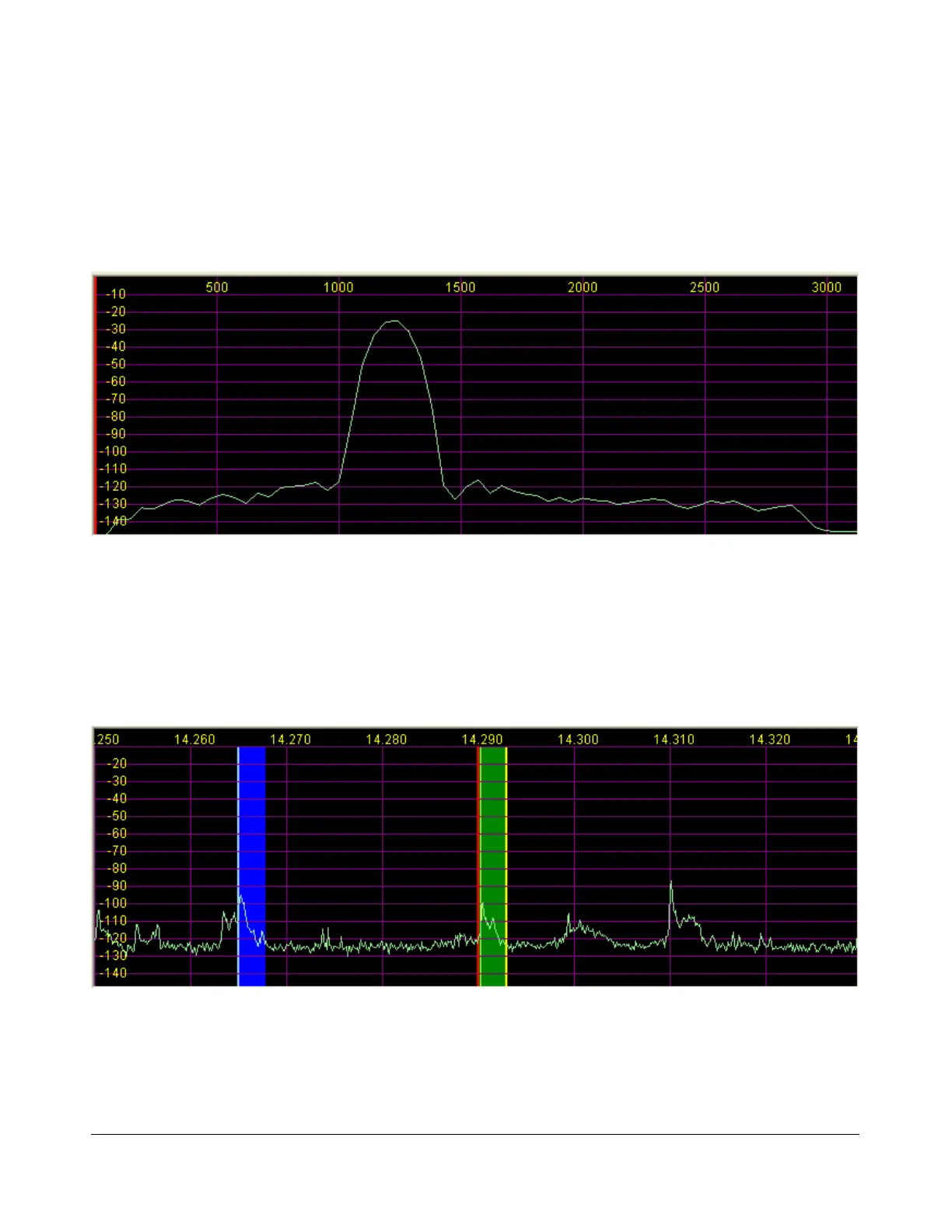

Figure 47: Spectrum Display
The Spectrum Display shows a classical spectral view of the frequency with the ends of the display
determined by the bandwidth of the filter. The scale across the top shows the frequency offset in Hz
from the VFO A frequency. Rather than only using half the display window when in lower or upper
sideband, we expand the display moving the 0Hz line to the left or right margin (1.2kHz tone in USB
mode with a 2.7kHz filter shown).
Panadapter (Panoramic Adapter)
Figure 48 Panadapter Display
The Panadapter Display is similar to the Spectrum Display with several differences.
 The maximum display width is a function of the selected sampling rate, no matter what filter
bandwidth is selected.
64  2003-2008 FlexRadio Systems
