F R O N T C O N S O L E C H A P T E R 3

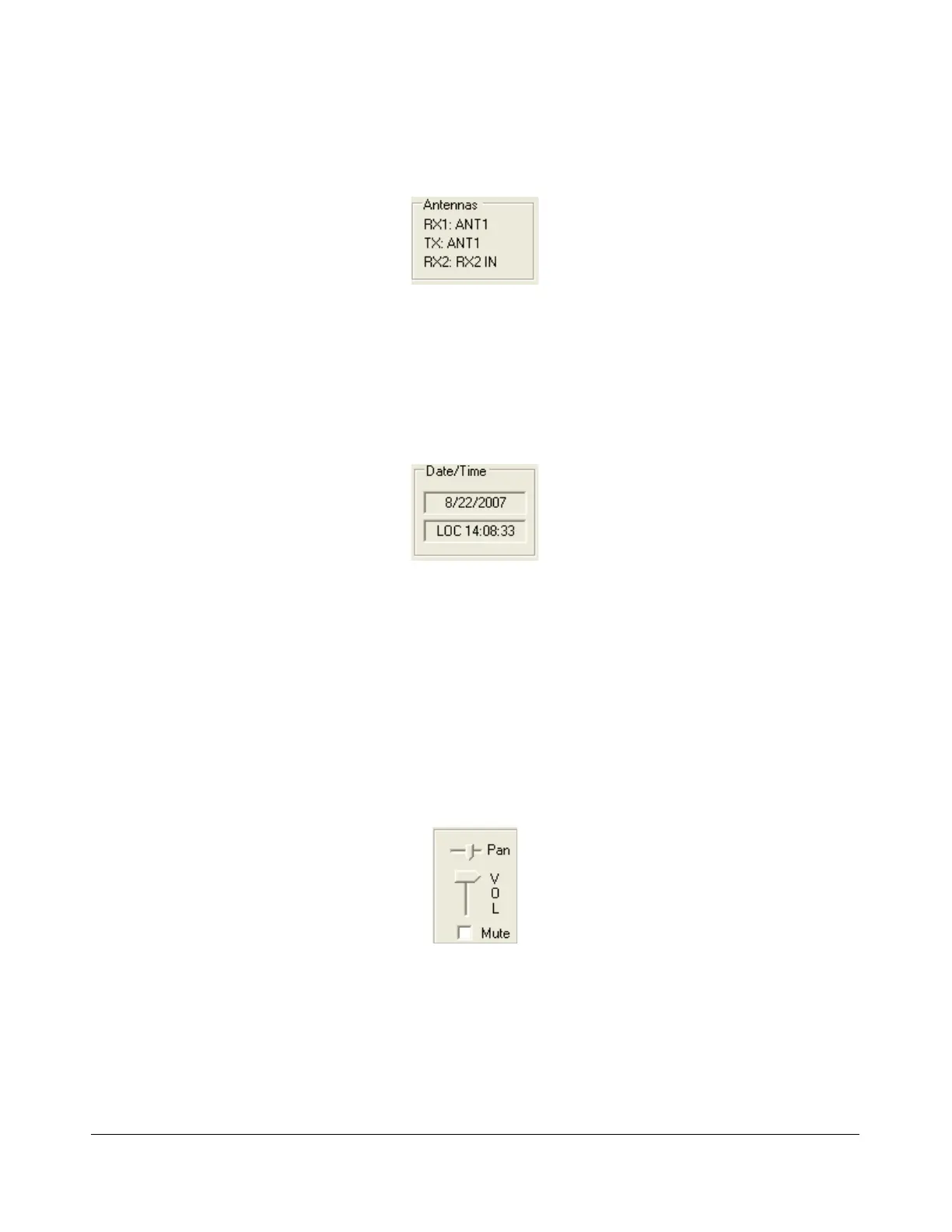

(27) Antenna Selection Display
Figure 60: Antenna Selection Display
The antenna selection display can be a helpful reminder of which antenna ports are selected for the
main receiver RX1, the transmitter TX and the secondary receiver RX2. These ports are selected using
the Antenna Form, described on page 150).
(28) Date/Time Display
Figure 61: Date/Time Display
The date and time display can be especially helpful when taking screenshots, but can also be a quick
reference to UTC time for those of us who are “time zone challenged.” Click inside the Date or Time
area to cycle between LOC (Local Time), UTC (UTC Time), and Off .
(29) RX2 On/Off
If RX2 is installed, this button will turn RX2 on or off.
(30) RX2 Audio Controls
Figure 62: RX2 Audio Controls
These controls allow you to adjust the audio of the second receiver RX2, if installed.
 Pan: Move left or right to position RX2 anywhere in the left-right audio spectrum.
 Vol: Adjusts the RX2 audio volume relative to the total RX1 + RX2 audio gain. The latter is
controlled with the AF slider (see above).
