Flexzilla Electric Operated, Oil-Free Portable Air Compressors
6
8
9
10
7
12
13
14
15
16
17
18
19
21
22 23
24
25
26
27
28
29
30
31
32
33
35
37 36
38
40
41
42
43
44
48
49
51
52
34
21 3 4 5
50
11
20
45
46
47
# PART NO./KIT CODE DESCRIPTION QT Y.
1 RP000500 REGULATOR SUPPORT 1
2 RP000501 REGULATOR PRESSURE GAUGE 1
3 A77425 QUICK COUPLER 1
4 RP000502 ELBOW 1
5 A77425 QUICK COUPLER 1
6 RP000503 or A CYLINDER HEAD 2
7 A or B RUBBER SEAL 2
8 A or B SCREW 8
9 A or B VALVE PLATE 2
10 A or B RUBBER SEAL 2
11 A PLUG 1
12 A CYLINDER SUPPORT 2
13 A CRANKCASE 2
14 A SCREW 4
15 A STATOR & WINDING 1
16 RP000504 AIR DELIVERY TUBE 1
17 RP000505 ELBOW 1
18 RP000506 or A CYLINDER HEAD CONNECTION 2
KIT CODE PART NO. DESCRIPTION
A RP000540 Flexzilla™ Portable Air Compressors Replacement Pump and Motor for CF10050F
B RP000541 Flexzilla™ Portable Air Compressors Pump Repair Kit for CF10050F
C RP000542 Flexzilla™ Portable Air Compressors Replacement Fan and Cover for CF10050F
D RP000545 Flexzilla™ Portable Air Compressors Replacement Foot Kit for CF10050F
E RP000543 Flexzilla™ Portable Air Compressors Replacement Capacitor Cover for CF10050F
F RP000544 Flexzilla™ Portable Air Compressors Replacement Power Cord for CF10050F
# PART NO./KIT CODE DESCRIPTION QT Y.
19 RP000507 or A CYLINDER HEAD COVER 2
20 RP000508 or A AIR FILTER 2
21 A or B CYLINDER 2
22 A or B SCREW 2
23 A PRESS PAD 2
24 A or B TEFLON PISTON CUP 2
25 A CIRCLIP 2
26 A BEARING 2
27 A CRANKSHAFT 2
28 A or C FAN 2
29 A or C FAN COVER 2
30 RP000509 INSULATOR 4
31 A BEARING 2
32 A ROTOR 1
33 RP000510 CAPACITOR 1
34 RP000511 SAFETY VALVE 1
35 F POWER CORD 1
36 F CABLE LOCK 1
# PART NO./KIT CODE DESCRIPTION QT Y.
37 RP000512 PRESSURE SWITCH 1
38 RP000513 RELEASE TUBE 1
39 RP000514 AIR DELIVERY TUBE 1
40 D NUT 4
41 D SPRING 4
42 D SCREW 4
43 D RUBBER FOOT 4
44 RP000515 WATER DRAIN 1
45 RP000516 TANK 1
46 RP000517 CHECK VALVE 1
47 RP000518 RUBBER GRIP 1
48 E CAPACITOR COVER 1
49 E SCREW 1
50 RP000519 PANEL 1
51 A CONNECTING ROD 2
52 A SCREW 4

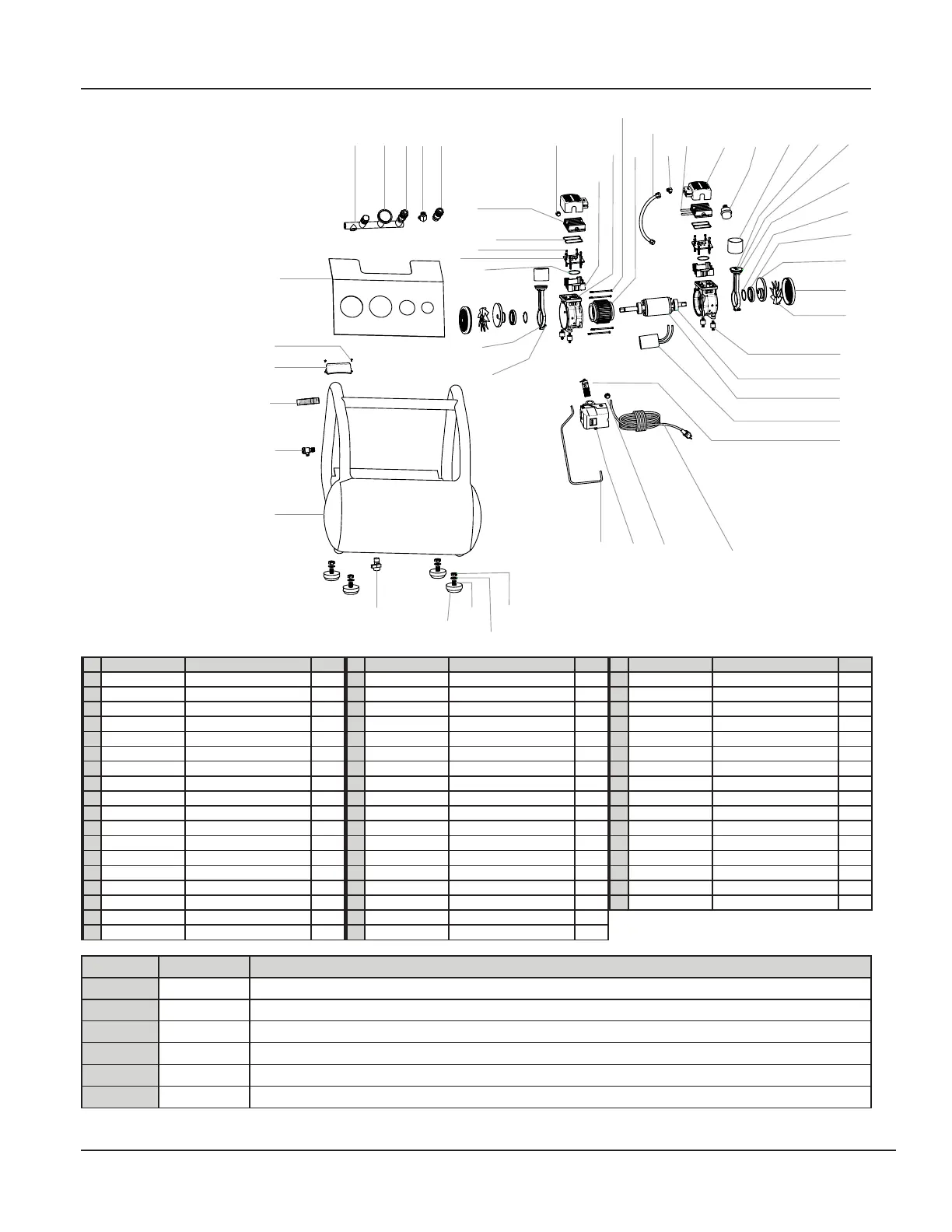

6. EXPLODED DIAGRAMS
CF10050F
