Flexzilla CF10050F User Manual

9
Flexzilla Electric Operated, Oil-Free Portable Air Compressors
1
2
3
4
5
6
8
9
10
7
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
37 36
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
KIT CODE PART NO. DESCRIPTION
A RP000640 Flexzilla™ Portable Air Compressors Replacement Pump and Motor for CB20100F and CB20200F
B RP000641 Flexzilla™ Portable Air Compressors Pump Repair Kit for CB20100F and CB20200F
C RP000642 Flexzilla™ Portable Air Compressors Replacement Fan and Cover for CB20100F and CB20200F
D RP000645 Flexzilla™ Portable Air Compressors Replacement Foot Kit for CB20100F and CB20200F
E RP000646 Flexzilla™ Portable Air Compressors Replacement Wheel Kit for CB20100F and CB20200F
F RP000643 Flexzilla™ Portable Air Compressors Replacement Capacitor Cover for CB20100F and CB20200F
G RP000644 Flexzilla™ Portable Air Compressors Replacement Power Cord for CB20100F and CB20200F
# PART NO./KIT CODE DESCRIPTION QT Y.
1 RP000600 SAFETY VALVE 1
2 RP000601 RUBBER GRIP 1
3 RP000602 HANDLE 1
4 RP000603 SCREW 2
5 RP000604 CHECK VALVE 1
6 RP000605 or A CYLINDER HEAD 2
7 A or B RUBBER SEAL 2
8 A or B SCREW 8
9 A or B VALVE PLATE 2
10 A or B RUBBER SEAL 2
11 A PLUG 1
12 A CYLINDER SUPPORT 2
13 A CRANKCASE 2
14 A SCREW 4
15 A STATOR & WINDING 1
16 RP000606 AIR DELIVERY TUBE 1
17 RP000607 ELBOW 1
18 RP000608 or A CYLINDER HEAD CONNECTION 2
19 RP000609 or A CYLINDER HEAD COVER 2
20 RP000610 or A AIR FILTER 2
# PART NO./KIT CODE DESCRIPTION QT Y.
21 A or B CYLINDER 2
22 A or B SCREW 2
23 A PRESS PAD 2
24 A or B TEFLON PISTON CUP 2
25 A CIRCLIP 2
26 A BEARING 2
27 A CRANKSHAFT 2
28 A or C FAN 2
29 A or C FAN COVER 2
30 RP000611 INSULATOR 4
31 A BEARING 2
32 A ROTOR 1
33 RP000612 CAPACITOR 1
34 RP000613 TANK PRESSURE GAUGE 1
35 G POWER CORD 1
36 G CABLE LOCK 1
37 RP000614 PRESSURE SWITCH 1
38 RP000615 RELEASE TUBE 1
39 RP000616 CONNECTOR 1
40 RP000617 REGULATOR 1
# PART NO./KIT CODE DESCRIPTION QT Y.
41 RP000618 REGULATOR PRESSURE GAUGE 1
42 RP000619 CONNECTOR 1
43 A77425 QUICK COUPLER 1
44 RP000620 THREE WAY ELBOW 1
45 A77425 QUICK COUPLER 1
46 D NUT 2
47 D SPRING 2
48 D SCREW 2
49 D RUBBER FOOT 2
50 RP000621 DRAIN VALVE 1
51 E NUT 2
52 E WHEEL 2
53 E SCREW 2
54 RP000625 10 GAL TANK (CB20100F) 1
54 RP000626 20 GAL TANK (CB20200F) 1
55 F CAPACITOR COVER 1
56 F SCREW 1
57 RP000622 THREAD ADAPTOR 1
58 A CONNECTING ROD 2
59 A SCREW 4

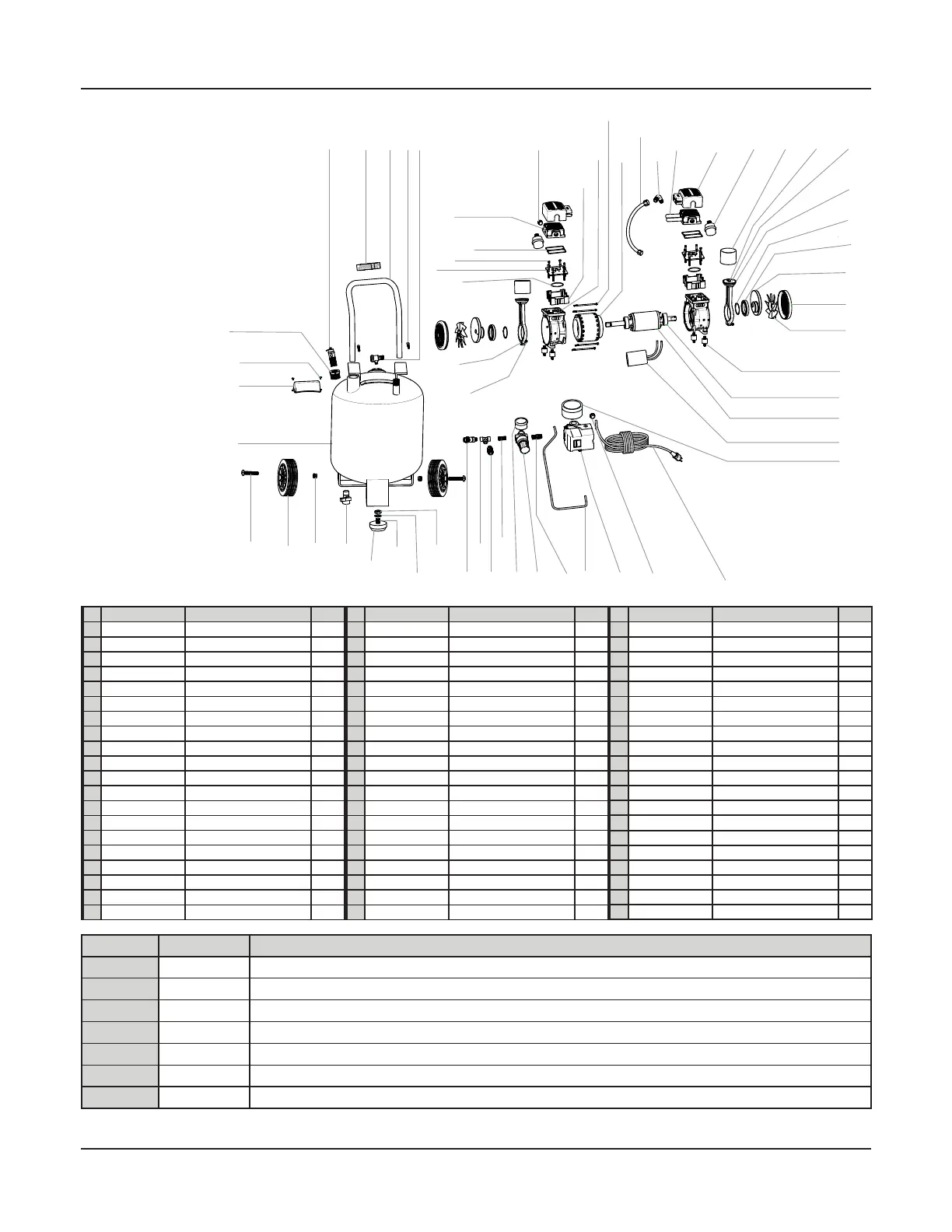

6. EXPLODED DIAGRAMS
CB20100F/CB20200F
