Pin configurations and
schematics
12
12.1 Pin configuration for camera I/O connector
1 IN 1
2 IN 2
3
OUT 1
4
OUT 2
5
I/O +
6
I/O –

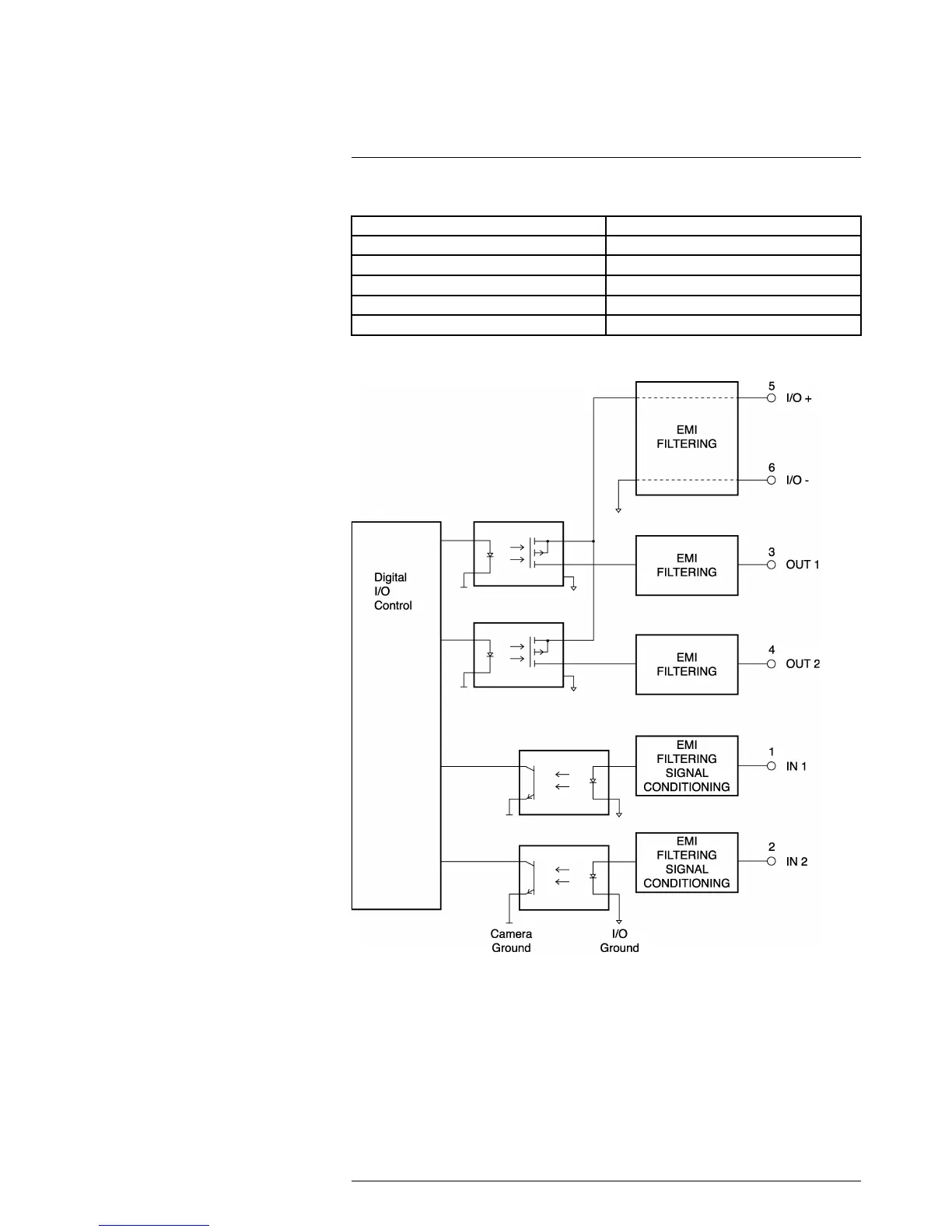

12.2 Schematic overview of the camera unit digital I/O ports
Figure 12.1 Schematic overview of the camera unit digital I/O ports.
#T559794; r. AJ/35709/35709; en-US
62
