FLIR ADK User Manual

FLIR ADK
Getting Sta rt e d
The information contained herein does not contain technology as
defined by EAR,15 CFR772, is publicly available, and therefore
not subject to EAR.
23

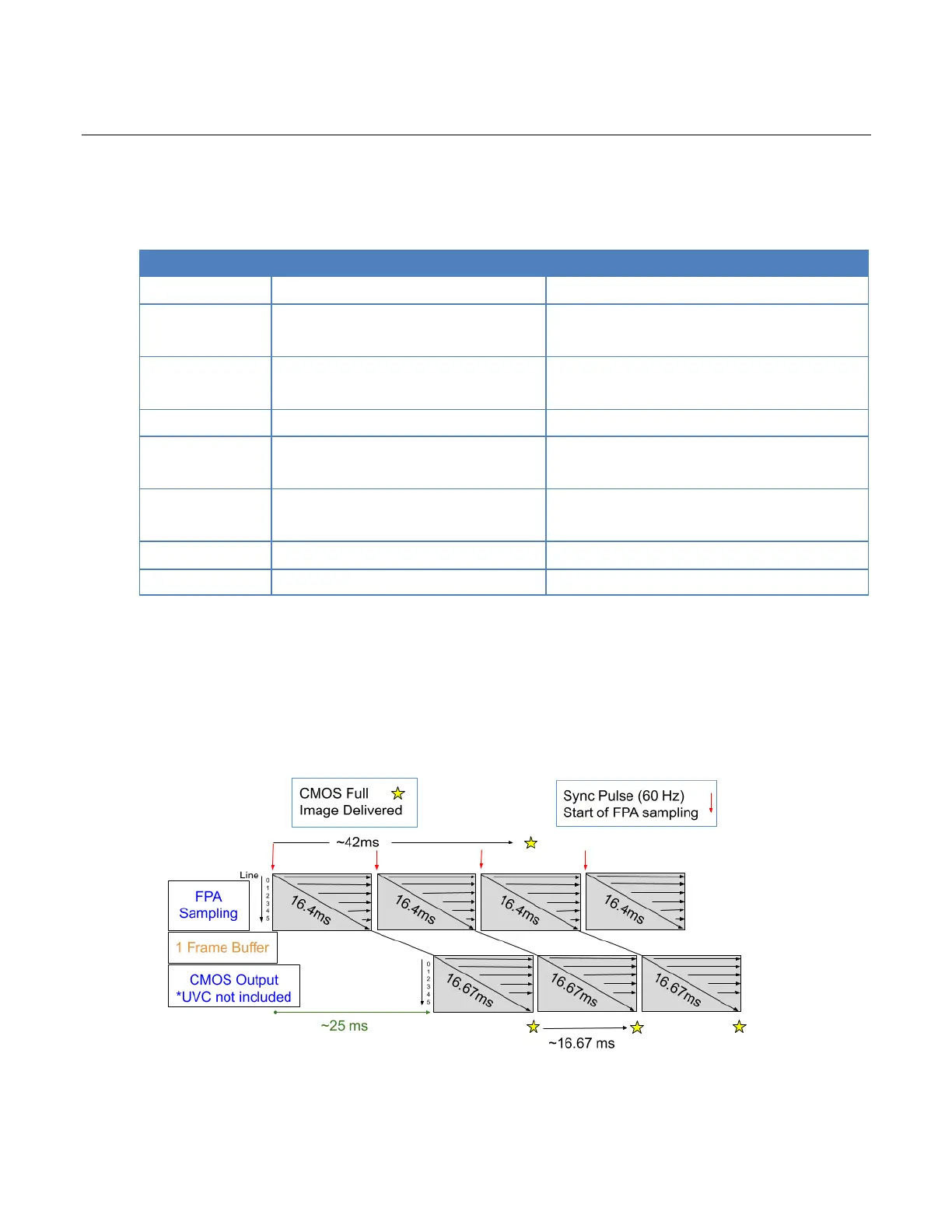

Table 4: Timing of a frame from the ADK with average ON.
Time (ms)
Event
Notes
0
Sync Pulse frame 2
Internal or External
0.3
ROIC reads first pixel
frame 1
16.7
ROIC read last pixel frame
1
16.4ms to read ROIC
16.7
Sync Pulse frame 2
17.0
ROIC reads first pixel
frame2
33.4
ROIC reads last pixel of
frame 2
35.0
CMOS output of first pixel
51.7
CMOS output of last pixel
16.7ms to output frame
When the averager is on, two frames of data from the ROIC are used to reduce noise.
However if the change in pixel value is more than expected by noise, the averager assumes
this is a change in the scene and uses the value from the more recent frame. This means for
dynamic scenes, the latency is the time between ROIC reads first pixel and CMOS output of
first pixel, or 18ms.
Figure 3: Output 60 Hz – averager OFF
