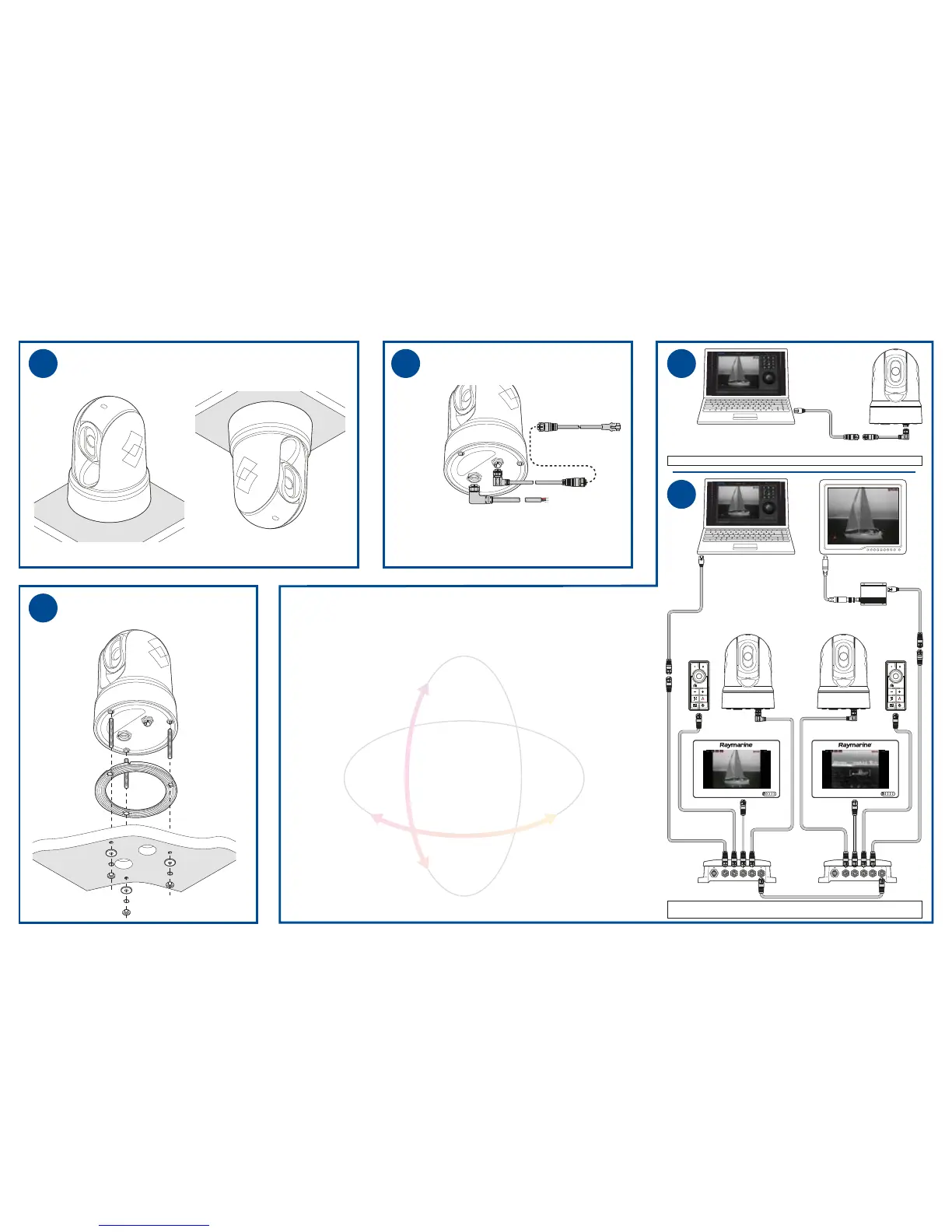

FLIR M100 Series Quick Start Guide

Mount the camera, and make power & network connections
Choose a mounting orientation for the camera
Make system connections
1
Connect the power and network cables
3
Using the supplied mounting template, seal
and fasteners, mount the camera to the vessel
2
Ball up Ball down
• Red: +ve (12 / 24 V)
• Black (thick): -ve (0 V)
• Black (thin): Drain / Ground
Network
(RayNet)
*RayNet-to-RJ45
adapter
Power & drain
Your thermal camera has a single RayNet network connector. This connects the
camera to your vessel’s wider IP network. This could be an existing third-party
Ethernet network, or a dedicated Raymarine® RayNet network. For more basic setups,
the camera can be connected directly to a laptop or PC.
The details of the network connections between the camera, video display, control
unit, and the rest of your installation depend on:
• how you want to control the camera (for example, with a web browser, a
Raymarine® LightHouse™ multifunction display (MFD)
†
, a JCU controller, or a
combination);
• how you want to view the camera’s IP video feed (for example, with an analog video
monitor (connected via an IP video decoder), a Raymarine® LightHouse™ multifunc-
tion display (MFD)
†
, a web browser, or a combination);
• the equipment already installed on your vessel (for example, network switches with
free ports, analog video monitors, or other cameras).
The illustrations to the right show two examples of possible system layouts:
A — a basic system with a single camera directly connected to a web browser, via a
laptop computer or PC.
B — a more complex multi-camera, multi-display, multi-JCU system.
RayNet
RayNet RayNet
RayNet
Analog video monitor
RJ45
(Ethernet)
Composite
video
IP video decoder
JCU-3 JCU-3
RJ45
(Ethernet)
RayNet
network switches
A
B
Laptop computer or PC
Laptop computer or PC
RJ45
(Ethernet)
RayNet
Note: Power connections are not shown. Each device requires either a dedicated power
connection, or a Power over Ethernet (PoE) supply.
RayNet
Note: Power connections are not shown. Each device requires its own power connection.
† LightHouse™ 3, or LightHouse™ 2 Release 19
*optional
