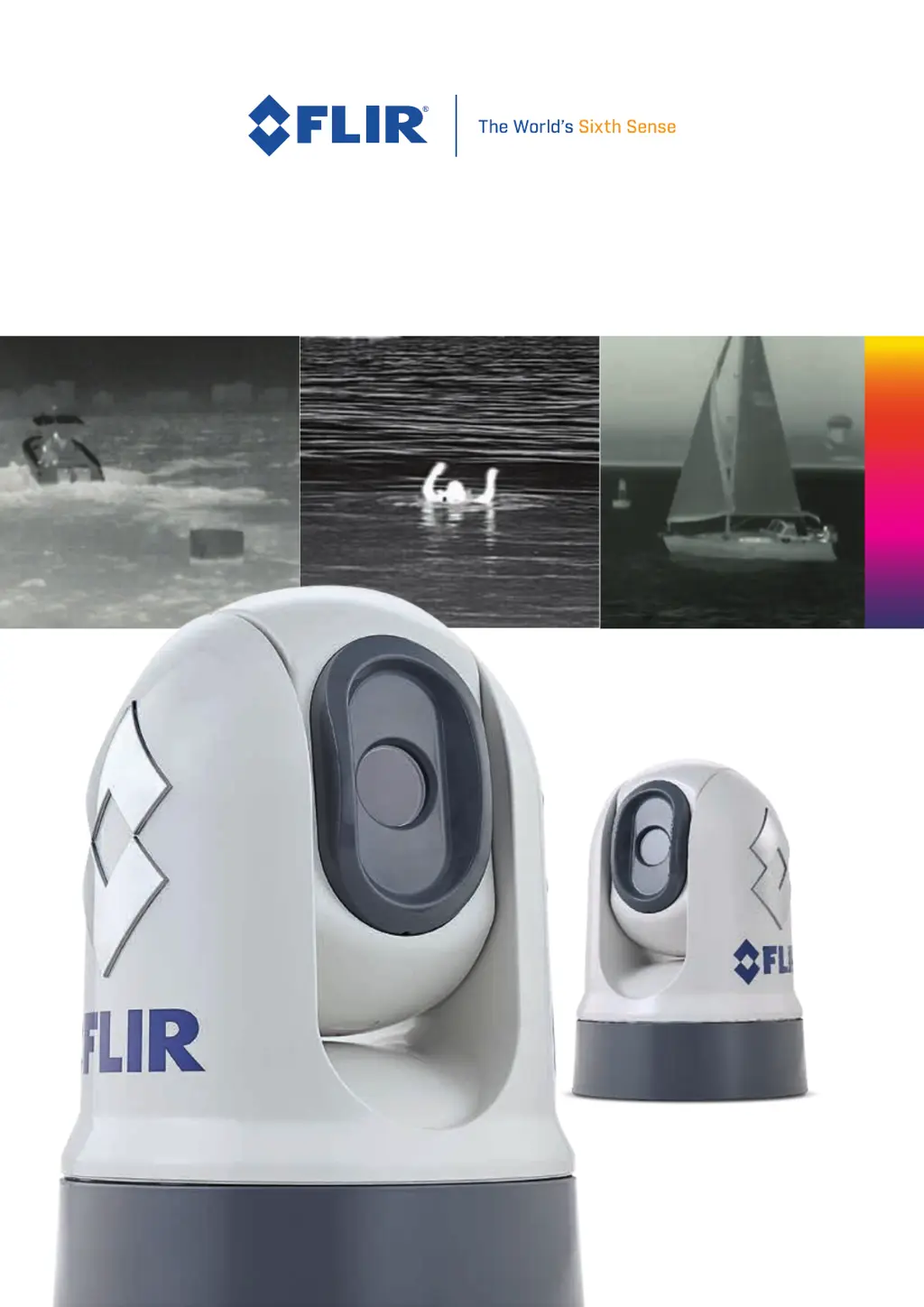

M100 / M200 SERIES

© 2017 Raymarine UK Limited

71001-2Document number:

03-2017Date:

English (en-US)

INSTALLATION & OPERATION INSTRUCTIONS

Table of Contents

Questions and Answers:

D
Danielle AllenAug 11, 2025
How to fix a FLIR Thermal camera when video is not displayed?
- N
  Nicole BlackwellAug 12, 2025
  If your FLIR Thermal camera isn't showing video, there are a few things to check: * First, the camera might be in Standby mode. You'll need to use the camera controls (either the thermal camera application or JCU) to wake it up. * Second, inspect the thermal camera network cables (RayNet or Ethernet) to ensure they are securely connected. * Third, verify that the power connections to the camera and JCU / PoE injector (if used) are properly connected, the power switch/breaker is on, and the fuse/breaker is in the correct state.
M
Mike CooperAug 19, 2025
What to do if FLIR Thermal camera controls are erratic or unresponsive?
- A
  Amanda TorresAug 19, 2025
  If your FLIR Thermal camera controls are acting erratically or not responding, here's what you can do: 1. Check that the controller and thermal camera are correctly connected to the network, either directly or through a Raymarine network switch. 2. Examine the Raymarine network switch status. 3. Ensure that SeaTalkhs / RayNet cables are free from damage. 4. Make sure that only one controller is in use at a time to avoid control conflicts. 5. Verify the power and network cabling to the controller and PoE injector (if a Joystick Control Unit is used). 6. Test other controllers, if available, to rule out a fundamental camera fault.
M
Miss Shannon ThompsonAug 27, 2025
Why is my FLIR Thermal camera image too dark or too light?
- V
  Vincent ZimmermanAug 27, 2025
  If the image from your FLIR Thermal camera appears too dark or too light, try these adjustments: * First, adjust the display brightness using the controls on the display. * Second, the Scene Mode might not be suitable for the current conditions. A different Scene Mode setting may be better for certain environments. Use the SCENE button to change the mode; for example, a very cold background (such as the sky) could cause the camera to use a wider temperature range than appropriate.
E
erin83Sep 3, 2025
What to do if FLIR Thermal camera image is inverted?
- R
  Ricky BrightSep 3, 2025
  If the image from your FLIR Thermal camera is upside down, ensure that the Ball down setting is set correctly.

FLIR M100SERIES Specifications

General

Thermal Sensitivity/NETD	< 50 mK
Spectral Range	7.5 - 13.5 µm
Digital Zoom	2x
Video Output	Analog
Power Consumption	6 W
Sensor Type	Uncooled VOx Microbolometer
