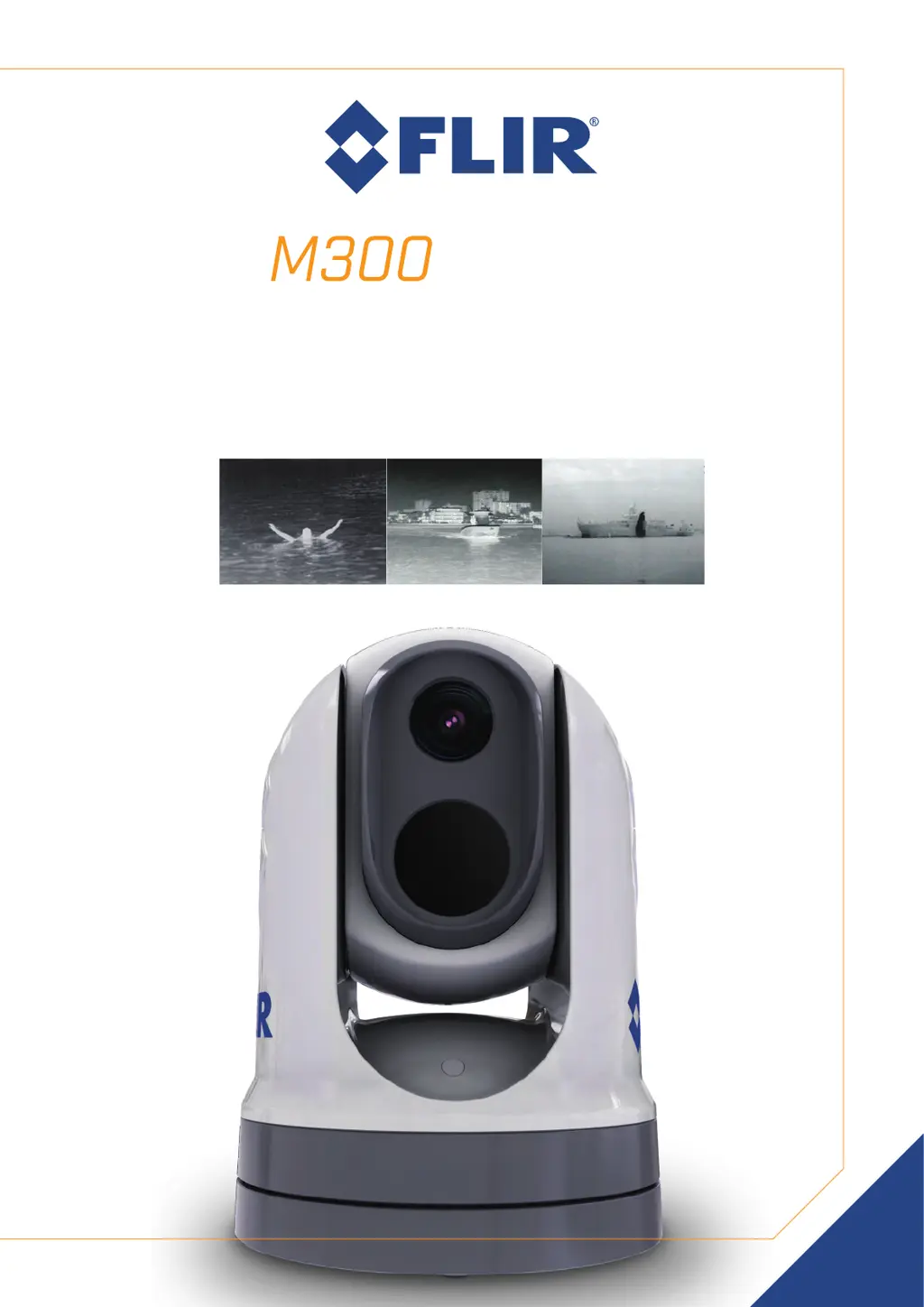

Page #1 background image

INSTALLATION & OPERATION

INSTRUCTIONS

SERIES

© 2019 FLIR Systems, Inc.

English (en-US) | Date: 10-2019 | Document number: 71004-2

Table of Contents

Questions and Answers:

C
charlesbutlerAug 9, 2025
How to fix FLIR Thermal camera when video is not displayed?
- J
  jamessullivanAug 9, 2025
  If your FLIR Thermal camera isn't displaying video, there are several potential causes. First, the camera might be in Standby mode; use the camera controls (either the thermal camera application or JCU) to wake it. Also, check the thermal camera network cables (RayNet or Ethernet) to ensure they are securely connected. Finally, verify the power connections to the camera and JCU / PoE injector (if used), ensure the power switch/breaker is on, and check the fuse/breaker state.
M
Mark BoyleAug 15, 2025
What to do if FLIR Thermal camera controls are erratic or unresponsive?
- T
  Tina GonzalezAug 15, 2025
  If you're experiencing erratic or unresponsive controls on your FLIR Thermal camera, start by checking that the controller and thermal camera are correctly connected to the network, either directly or via a Raymarine network switch. Also, ensure that no other controllers are in use at the same time, as this can cause control conflicts. Finally, check the power and network cabling to the controller and PoE injector (if used with an optional Joystick Control Unit).
D
Diana BeltranAug 21, 2025
Why is the image on my FLIR Thermal camera too dark or too light?
- C
  Caleb LarsonAug 21, 2025
  If the image on your FLIR Thermal camera appears too dark or too light, first adjust the display brightness controls. If that doesn't resolve the issue, the Scene Mode might not be appropriate for the current conditions. Try using the SCENE button to select a different mode that better suits the environment, especially if there's a very cold background like the sky.
W
wattsjulieAug 27, 2025
How to control FLIR Thermal camera from Raymarine display?
- R
  Rachel HowellAug 27, 2025
  To control your FLIR Thermal camera from a Raymarine display or keyboard, make sure the thermal camera application is running on the multifunction display, rather than the video application, which lacks camera controls.
M
Mary RoseSep 2, 2025
Why is the image inverted (upside down) on my FLIR Thermal camera?
- A
  Alexander PerrySep 2, 2025
  If the image on your FLIR Thermal camera is inverted (upside down), the camera’s “Ball down” setting is likely incorrect. Ensure that the Ball down setting is set correctly.

FLIR M332 Specifications

General

Field of View	24° x 18°
Frame Rate	30 Hz
Weight	12.5 lbs (5.7 kg)
Thermal sensitivity	< 50 mK
Focus	Fixed
Resolution	320 × 240
Lens Options	Fixed
Digital Zoom	1-4x
Spectral range	7.5 - 13 μm

Summary

Document and Product Information

Product Overview

Description of M300 single and dual payload camera variants and key features.

Installation

General Location Requirements

Considerations for choosing a suitable mounting location for the product.

Camera Mounting

Guidelines for mounting the camera, including location, access, and weather-tightness.

Connections

General Cabling Guidance

Best practices for cable types, routing, strain relief, and circuit isolation.

Video Connections

Details on distributing video output and available video formats.

Typical Systems

Examples of connecting the camera to various systems like web browsers, JCUs, and MFDs.

Network Connections

Information on connecting the camera to vessel IP networks for control and viewing.

Power Connection

Requirements and diagrams for connecting power to the camera.

Camera Control Options and Status Icons

Camera Control Options

Methods for remotely controlling the camera via web browser, JCU, or MFD.

Camera Control

Details on controlling pan, tilt, zoom, home position, and surveillance mode.

Web Interface Operation

Web Browser User Interface Overview

Introduction to using a web browser to communicate with and configure the camera.

Setting Up a Network Connection to the Camera

Steps to establish a network connection for web interface access.

Troubleshoot: Setting a Static IP Address

Procedure for setting a static IP address for the camera's network connection.

JCU-2 Operation

JCU-2 Controls Overview

Description of JCU-2 functions, buttons, joystick, and menu navigation.

MFD Operation

ClearCruise Thermal Analytics

Auto-Tracking

System Checks and Troubleshooting

Thermal Camera Troubleshooting

Common problems, their causes, and solutions for thermal camera operation.

FLIR Maritime Product Support and Servicing

Technical Specification

M300 Series Cameras

Detailed technical specifications for M300 Series cameras, including environmental and video specs.

JCU-2
