Using the System
9

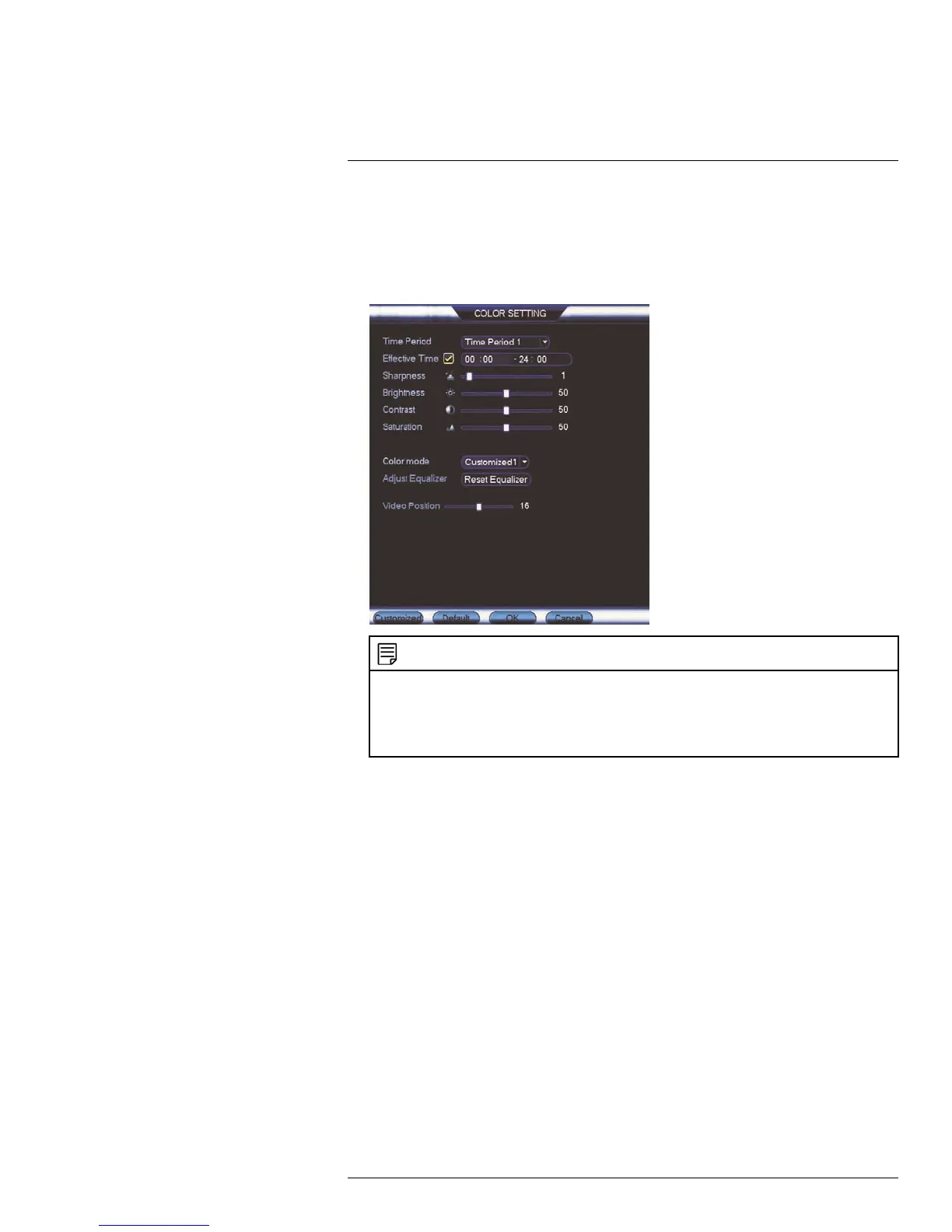

2. Adjust the Hue, Brightness, Contrast, and Saturation settings that the camera will
use. To enable custom Gain controls, check Gain and use the slider to configure the
gain level.
OR
Use Color mode to select a preset color profile.
NOTE
• Color settings will update once you save changes.
• To configure the Customized1~4 profiles, click Customized.
• By default, color settings will applied at all times. Under Effective Time, you can set a time range
when your selected color settings will be applied (camera will use default settings when outside of
this range). If Effective Time is unchecked, the camera will use the default settings at all times.
3. Click OK to save changes.
9.4 Using the Navigation Bar
The Navigation Bar gives quick access to certain functions and menus.
To open the Navigation bar:
• Left click on the screen to open the Navigation Bar. The Navigation Bar has the follow-
ing options:
#LX400028; r. 2.0/23335/23335; en-US
18
