10.2. Electrical interface
10.2.1. VIDEO connector
Connector reference: LEMO ERP1S306CLN
Mating part: LEMO FFA1S306CLAC42Z
Signal Characteristic: 75 Ohms
10.2.2. Power supply connector
Connector reference: LEMO ECP1S302CLN
Mating part: LEMO FFA1S302CLAC52

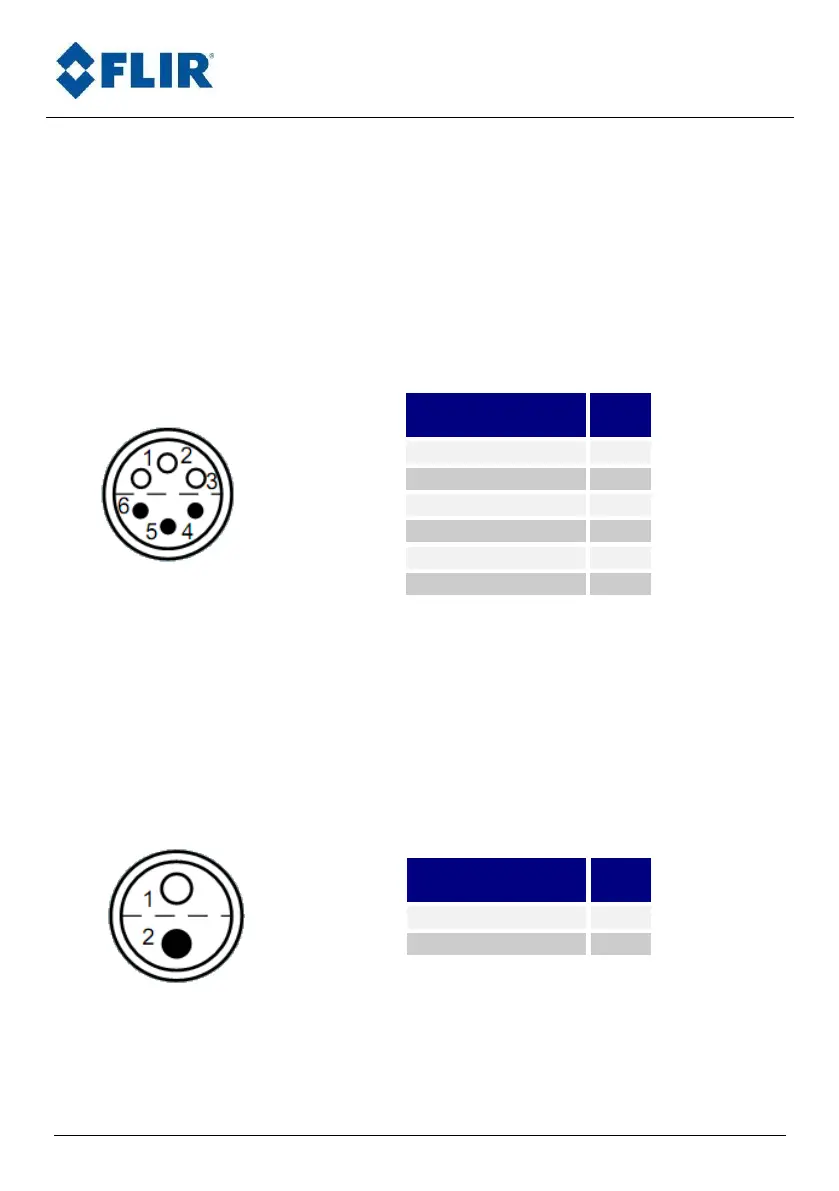

10.2.3. Trigger connector
Signal
Pin
#
Composite_Video
1
GND
2
SVideo_Chroma
3
GND
4
SVideo_Lumi
5
TX
6
Signal
Pin
#
GND
1
+12V
2
