ORION SC7000 User Manual

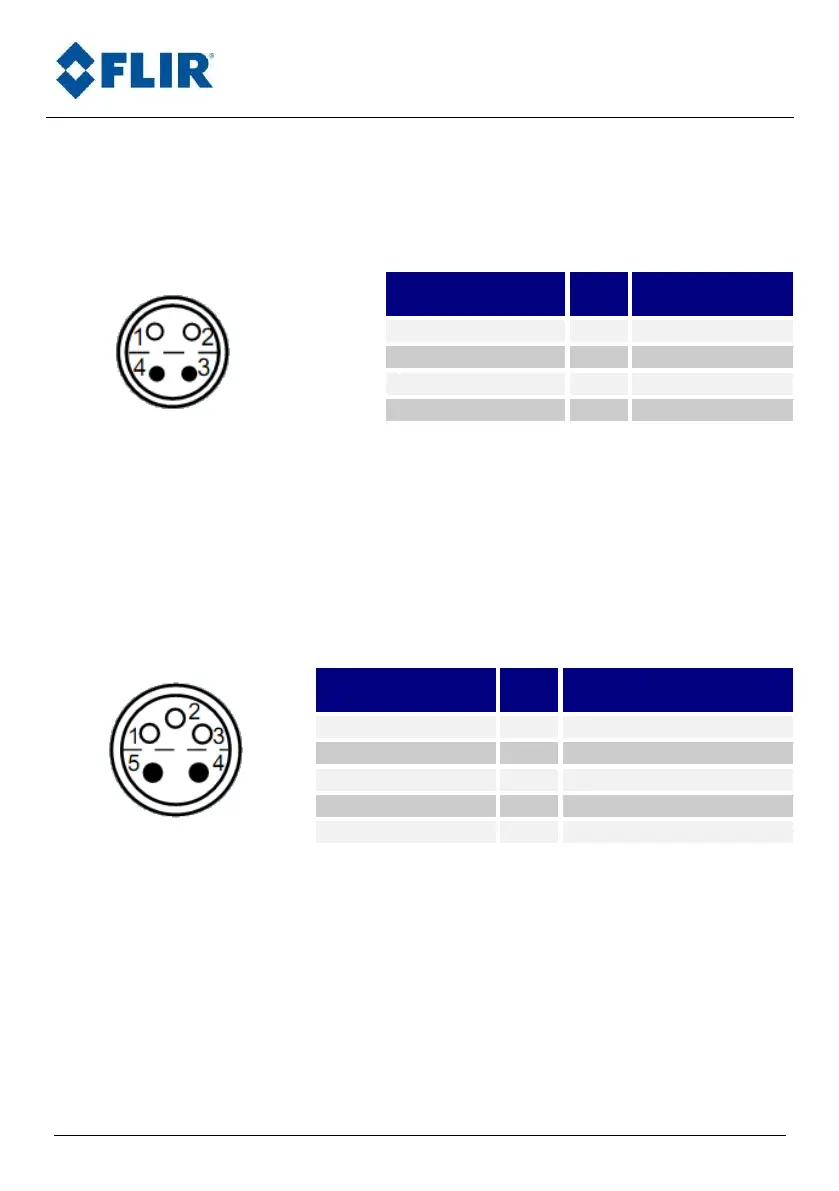

DCOO5U-F ORION SC7000 User Manual Page 41
Connector reference: LEMO ECP0S304CLN
Mating part: LEMO FFA0S304CLAC42Z
Signal Characteristic: 50 Ohms
10.2.4. Lockin connector
Connector reference: LEMO ECP1S305CLN
Mating part: LEMO FFA1S305CLAC42Z
Signal Characteristic: 10 MOhms
Signal
Pin
#
characteristic
Trigger OUT
1
LVTTL – 3.3V
GND
2
Trigger IN
3
LVTTL – 3.3V
GND
4
Signal
Pin
#
characteristic
Lockin
1
0/+10V AC only
GND
2
Random1
3
-5/+5V DC + AC
GND
4
Random2
5
-5/+5V DC + AC
