DCOO5U-F ORION SC7000 User Manual Page 42
10.2.5. Camera LINK connector
Connector reference: 3M MDR26

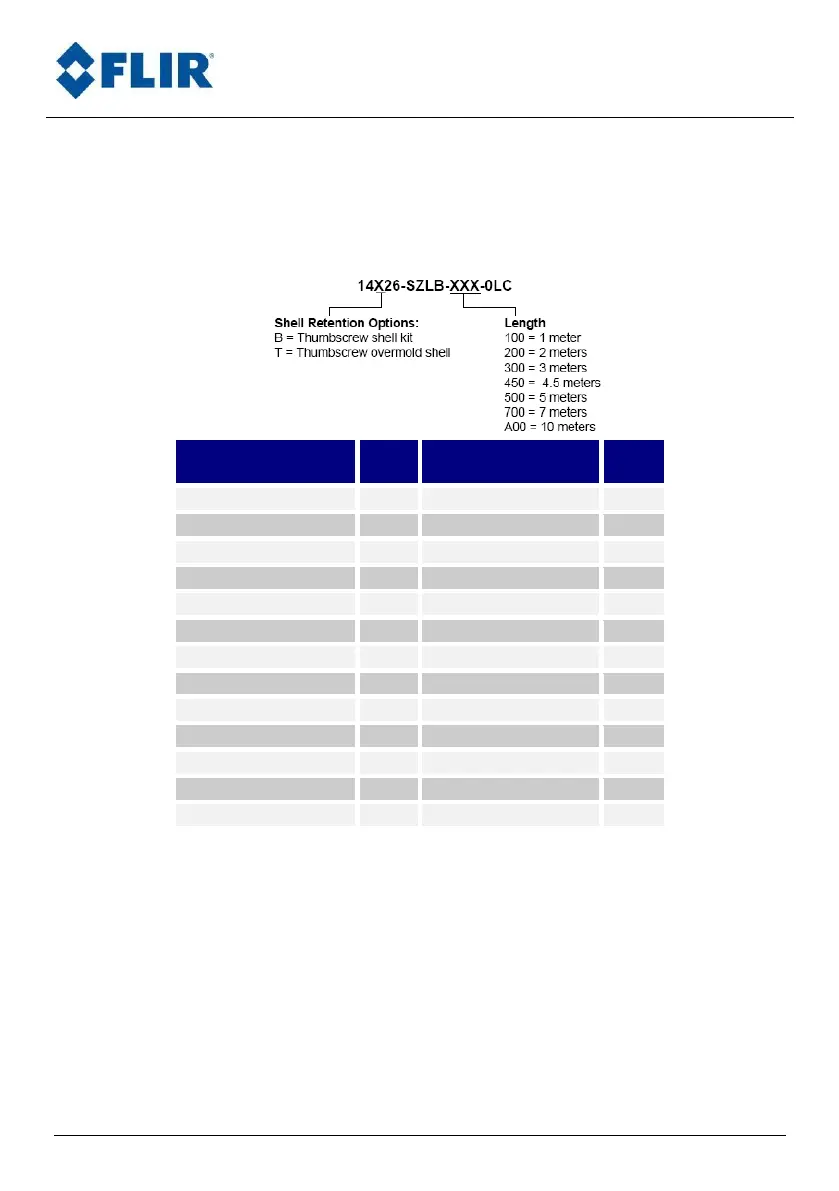

Mating cable:
Signal
Pin
#
Signal
Pin
#
Inner Shield
1
Inner Shield
14
X0-
2
X0+
15
X1-
3
X1+
16
X2-
4
X2+
17
Xclk-
5
Xclk+
18
X3-
6
X3+
19
SerTC+
7
SerTC-
20
SerTFG-
8
SerTFG+
21
CC1-
9
CC1+
22
CC2-
10
CC2+
23
CC3-
11
CC3+
24
CC4-
12
CC4+
25
Inner shield
13
Inner shield
26
