FLIR T560 User Manual

0.98in
25mm
4.7in
119.4mm
5.51in
140mm
1.52in
38.5mm
6.41in
162.8mm
UNC ¼” -20
Optical axis
2.7in
68.7mm
1.43in
36.2mm
1.89in
47.9mm
Optical axis
0.98in
25mm
1.89in
47.9mm
4.7in
119.4mm
4.53in
115mm
1.89in
47.9mm
1.42in
36mm
1.42in
36.1mm
Optical axis
Camera housing
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
1(4)
T129991

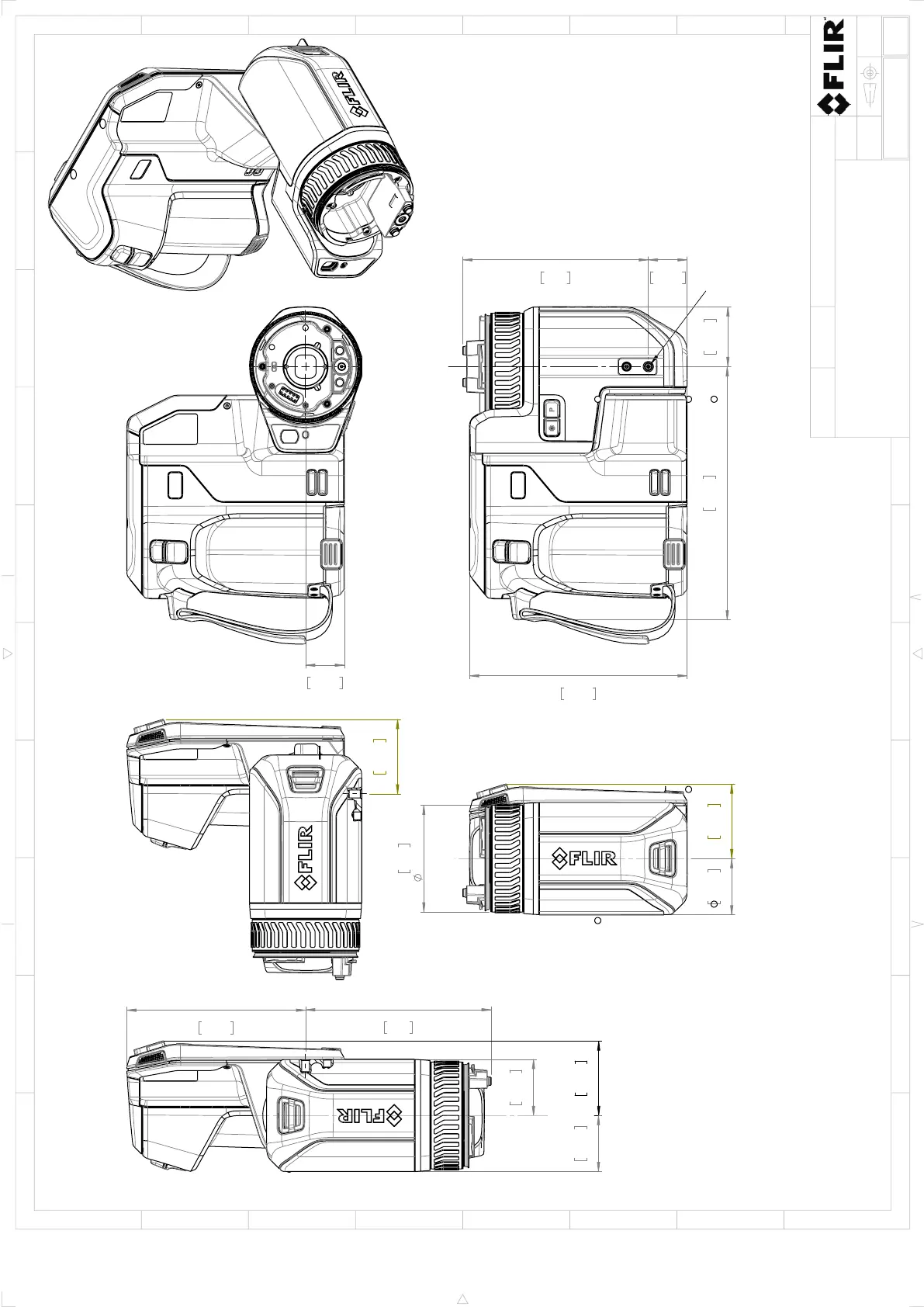

Basic dimensions FLIR T5xx
JOHE
2020-01-14
R&D Instruments
Modified
1 2 3 4 5 6 7 8 9 10
A B
C D
E
F
G
H
1 32 54
C
F
B
D
G
E A
6
Rev
B
1:2
Scale
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.

FLIR T560 Specifications

General

Brand	FLIR
Model	T560
Category	Thermographic Cameras
Language	English
