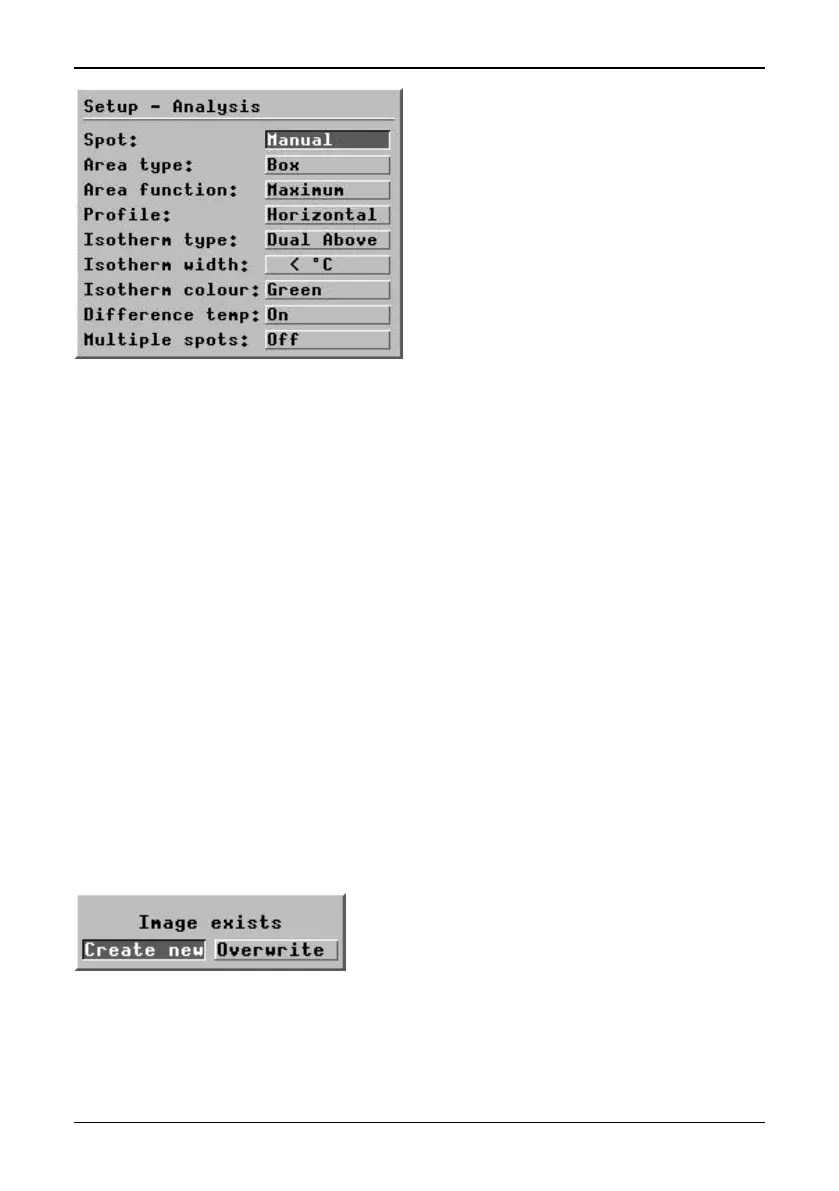

Figure 5.7 Dialog box.
A dialog box contains either one or several horizontal selection items or one verti-
cal selection item (see figure above).
Joystick function, horizontal dialog box
• Up/down: Change item.
• Left/right: Change value/alternative.
Joystick function, vertical dialog box
• Up/down: Change item value/alternative.
The selected item is marked white/dark grey. Pressing the
↵ button results in a
function dependent action (see “Menu functions” on page 6).
Pressing the C button will normally remove the dialog box, cancel the changes
and put the camera in normal mode, i.e. focus/zoom function for the joystick.
5.3.3 Confirm boxes
Some selections (pressing
↵ or C) result in a confirm box appearing on the
screen.
Figure 5.8 Confirm box.
Joystick function:
• Left/right: Change item (e.g. Yes or No)
