CoRe+
TM
Installation Guide
17
Pedestal and charging station
installation:

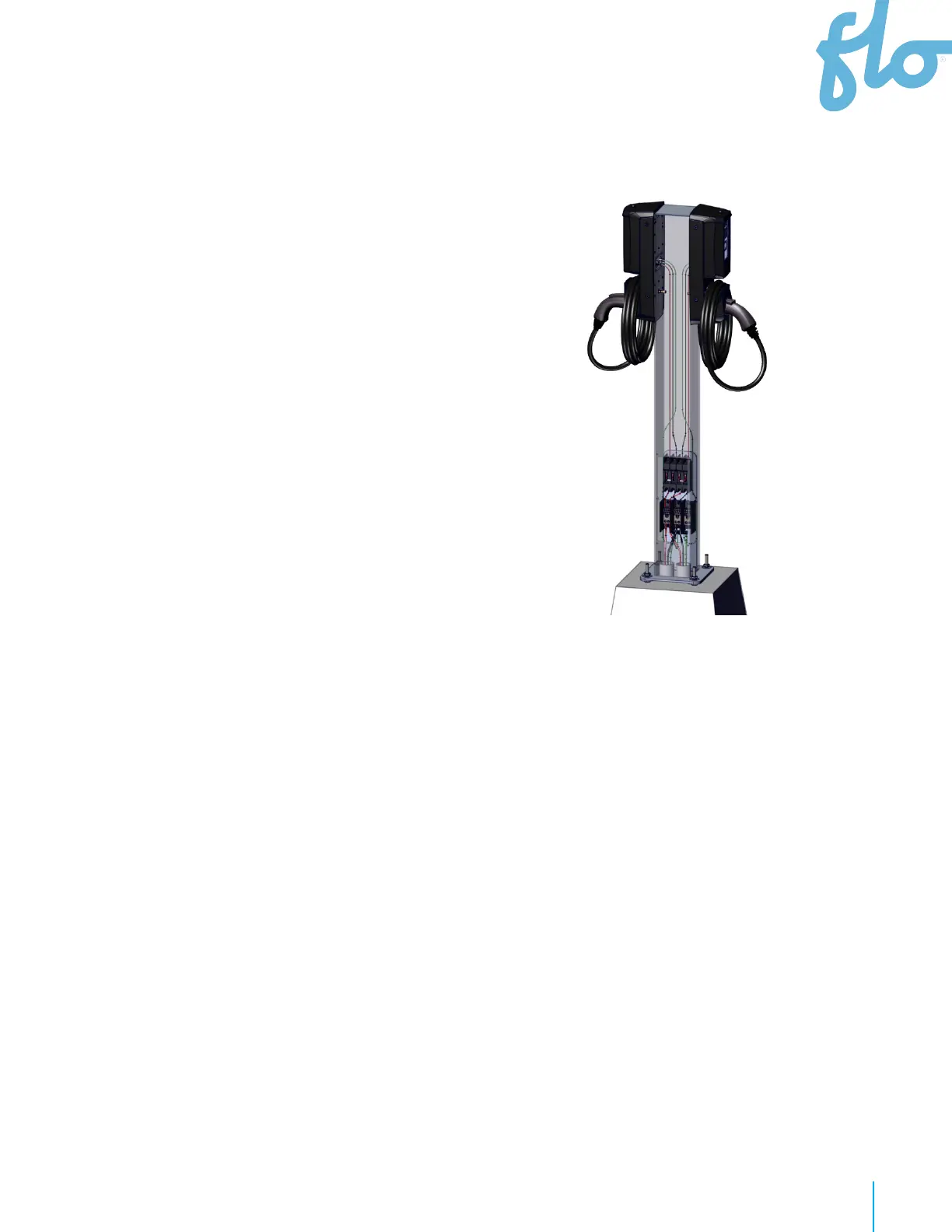

• Slide the pedestal over the assembly, making sure
that the terminal blocks are facing the access door
at the bottom of the pedestal.
• Tighten the 4 mounting nuts that secure everything
to the anchor.
• Unscrew and remove the plates from the top of the
pedestal, depending on the number of charging
stations to install.
• Pass the power supply wires (2 lines and 2 ground
connectors) from each rectangular hole at the top
of the pedestal down to the breakers.
• Connect the wires feeding the charging stations to
their respective breakers, being careful to keep the
phases balanced (in the case of a tri-phase supply)
and install each charging station on the pedestal,
as per the
CoRe+ Installation Guide
.
Installation Guide
Cascading on a 150 A Circuit
STEP 3:
