Flo CoRe+ Series - Cascading Installation (40 A Circuit); Step 1: Mounting Bracket Pre-assembly; Step 2: Bracket Installation and Cable Connection

CoRe+
TM
Installation Guide
14
Isolated terminal block
Non-isolated terminal block
DIN Rail
End sections

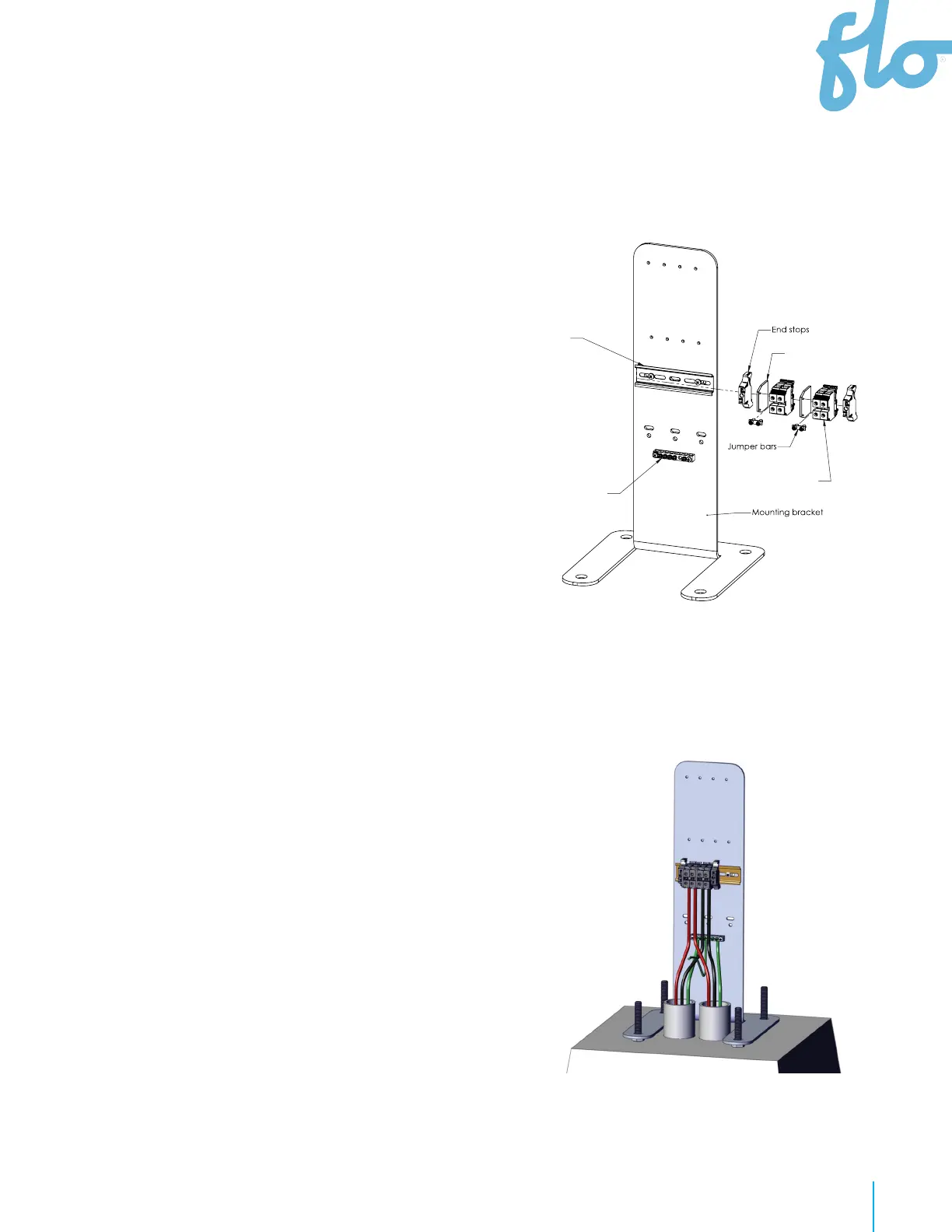

• Install the DIN rail as well as the provided terminal
blocks (2 isolated 2-position terminal blocks for
the live conductors, and 1 non-isolated terminal
block for the grounding conductor) with the
provided screws.
STEP 2
Mounting bracket installation and power
supply cable connection:
• Install the power supply cables coming from
the previous charging station and going to the
next one, letting 1 foot of cable protrude from
the conduit.
• Place the mounting bracket on the concrete
base, making sure that the anchor’s threaded
rods pass through the 4 holes in the base of
the bracket.
• Connect the power supply cables to the
bottom side of the terminal blocks.
Installation Guide
Cascading on a 40 A Circuit
STEP 1
Mounting bracket preasseMbly:
The preassembly requires the 40 A cascading kit
(AddÉnergie part number C+V1-PWCK-40).
