CoRe+
TM
Installation Guide
7

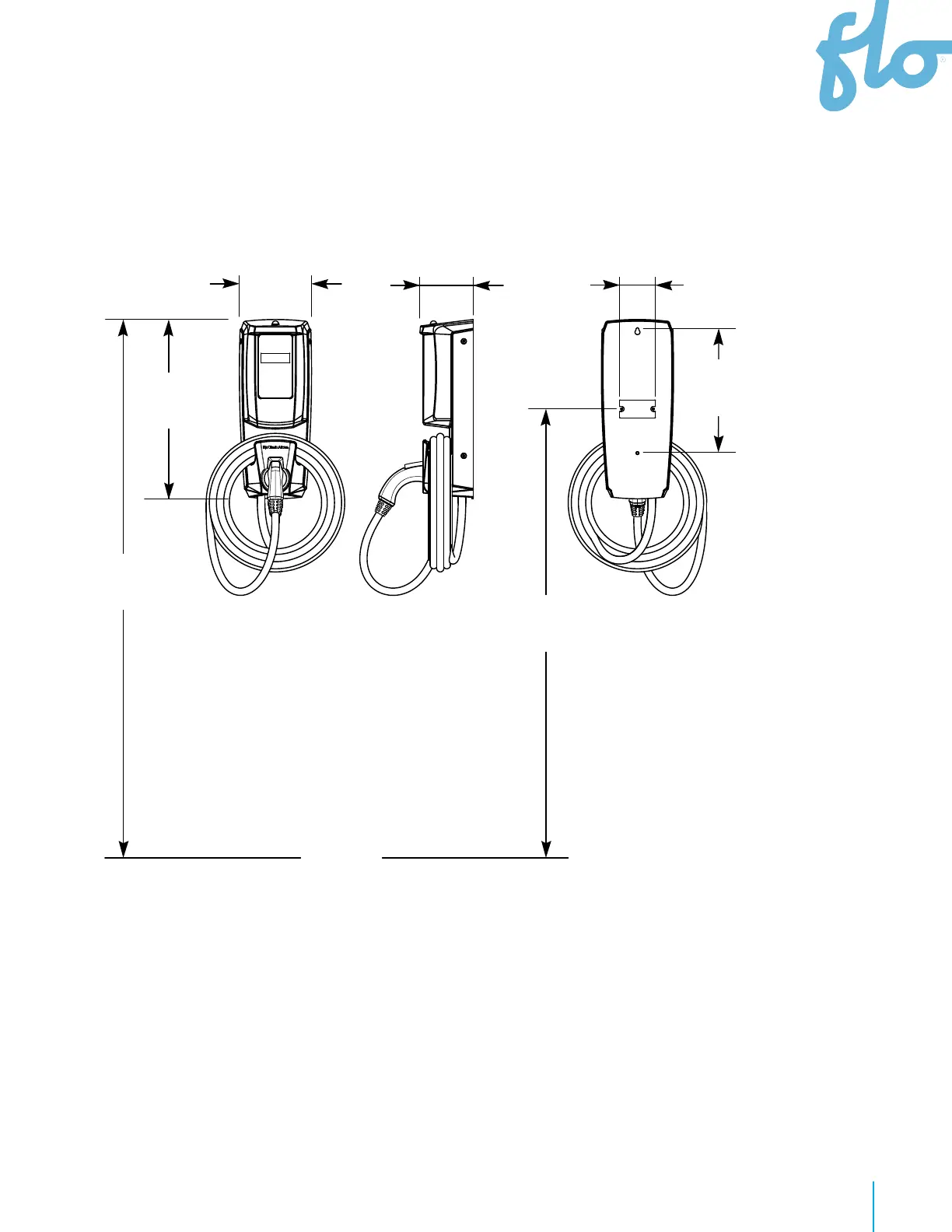

Dimensions
52.5’’
1333.5 mm
18.5’’
469.9 mm
13’’
330.2 mm
GROUND
7.5’’
190.5 mm
5.5’’
139.7 mm
43.125’’
1095.38 mm
3.75’’
95.25 mm
Drilling pattern
:
