Flo CoRe+ Series - Important Safety and Installation Notes; Communication Gateway Installation Requirements

CoRe+
TM
Installation Guide
2
Split Phase 120/240 VAC Supply or 3 phase 120/208 VAC (must be protected by a 40 A fuse or circuit
breaker) Both lines must have 120V between ground.
Voltage supply must be grounded.
Require 2 lines and 1 ground connection. Neutral is not used. (Refer to Figure 1 and Figure 2)
Maximum output power: 7.2 kW @ 240 VAC or 6.3 KW @ 208 VAC
Built-in protection against overvoltage conditions and leakage current to ground
Connect the power supply of the EVSE with caliber 6 to 8 copper conductors
Any EVSE part alteration will automatically void the warranty.
Install the Communication Gateway prior to the Commissioning of the Station
The Communication Gateway is the property of AddÉnergie. Fees will be charged if the gateway is
damaged or lost.
IMPORTANT ELEMENTS TO CONSIDER WHEN INSTALLING THE COMMUNICATION GATEWAY:
• An outdoor installation is recommended. The Customer must provide a waterproof PVC box and
install it less than 50 meters (164 ft.) from the stations.
• Never use a GFCI outlet to power the Communication Gateway.
Contact us when the Communication Gateway is installed to validate the signal levels
and activate Commissioning or for any other questions: 1 855 543 8356
IMPORTANT

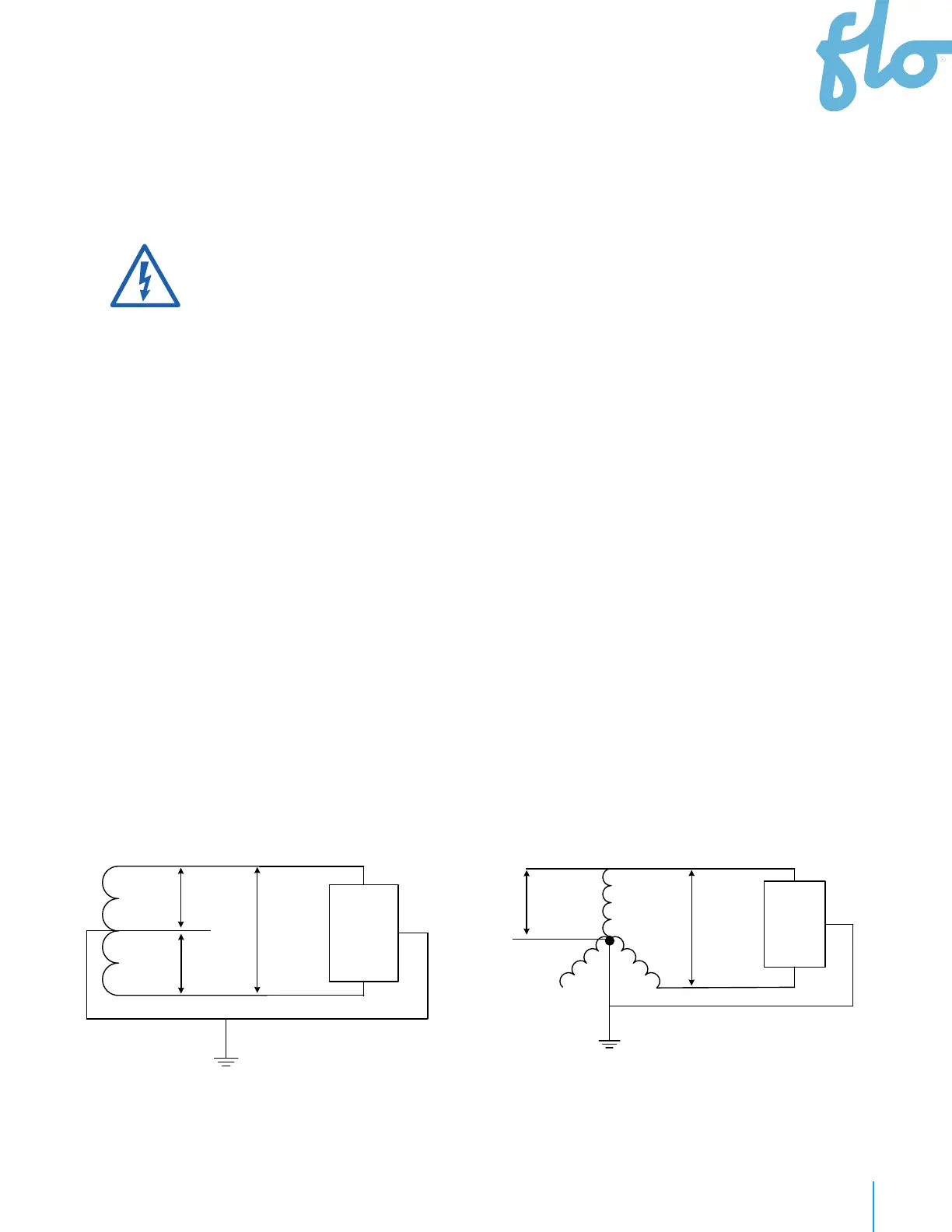

Fig. 1 Fig. 2
Neutral
(N.C)
120 VAC
240 VAC
L1
L2
Split Phase 120/240 VAC Supply
Charging
Station
120 VAC
GND
GND
A
B
C
208 VAC
120VAC
3 phase 120/208 VAC Supply
GND
Charging
Station
L1
L2
(N.C)
Neutr
al
GND
