attached to the lift. Note that the rigid coupler
on the drive train and ball screw mate together.
With the drive train being held in place, attach it

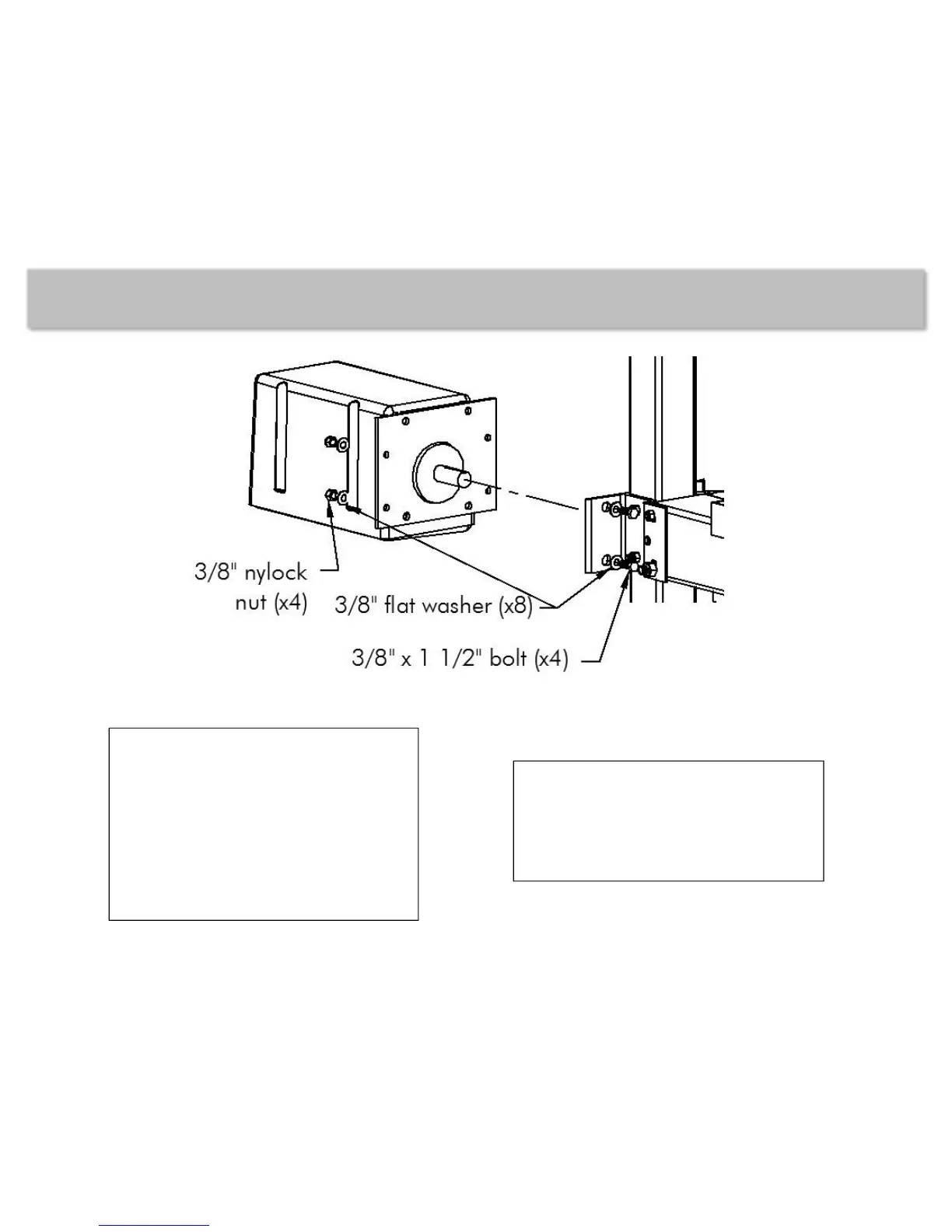

to the lift using (4)3/8" x 1 1/2" bolts, (4) nylock
nuts, and (8) flat washers as shown in Fig 7A.
Torque to 10 ft/lbs. Make sure the bolt threads
clear the nylock before using torque wrench.
See Note:
NOTE:
Apply a generous amount of Anti-Seize from
the small packet included, to the inside of the
Rigid Coupler and to the Motor Shaft before
attaching the Drive Unit to the
Lift's Frame.
To Next Page
