VSD 5000 PONTOON BOAT LIFT (DC ONLY)

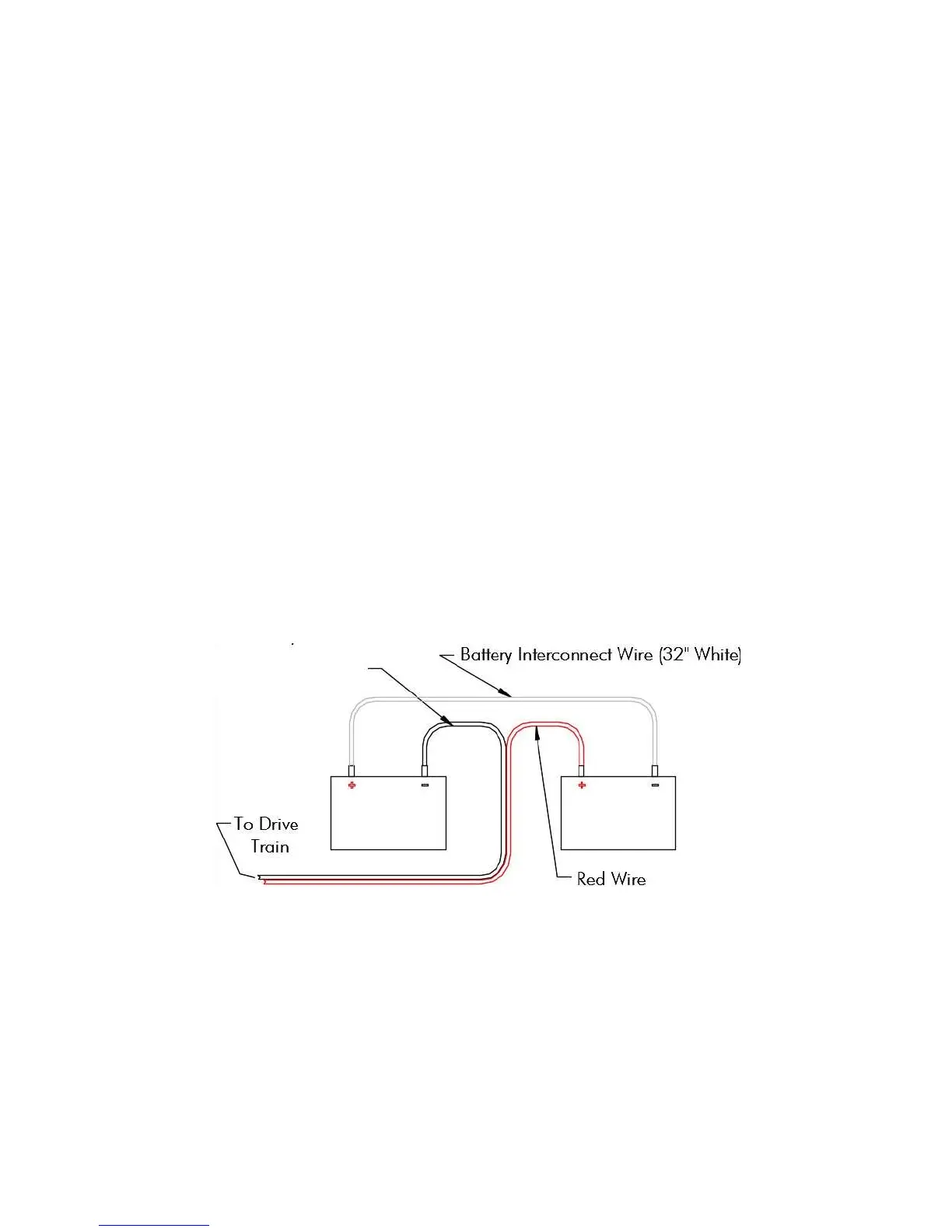

24 VOLT BATTERY CONNECTION DIAGRAM
1. Connect the red wire from the ASC to the positive post of one battery. Connect the red
and black wire from the ASC to the negative post of the other battery
2. Connect the 32” white battery interconnect wire to the negative post of the first battery
and the positive post of the other battery.
See diagram below. Attach battery volt meter (included with battery box, see included
instructions (red-positive, black-negative)), place the covers on the battery boxes and
strap it through the slots on the battery tray. See VSD Drive instructions for more
information.
Red and Black Wire
