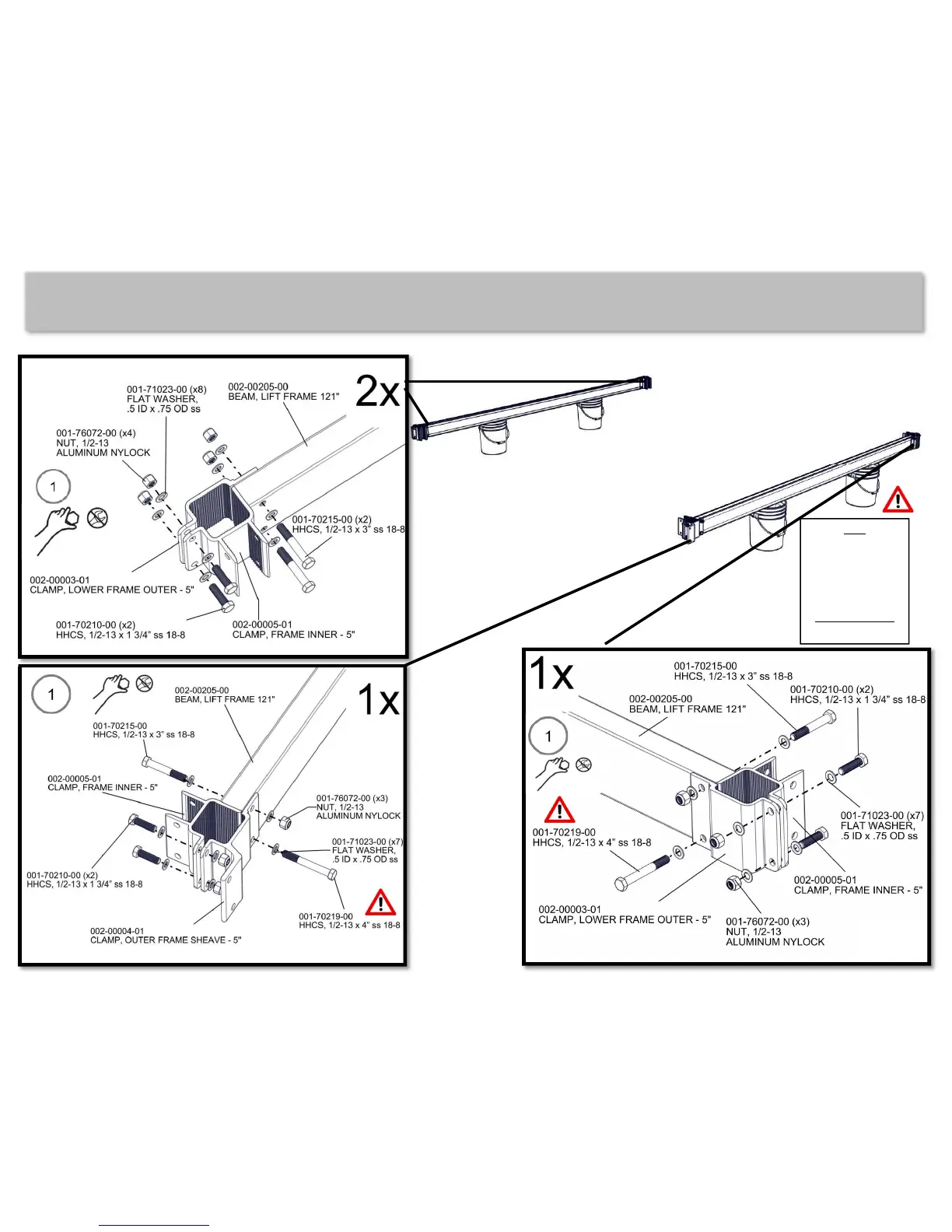

Assembly for Step 1
1
-
A
1
-
B
1
-
C
B
A
D
C
NOTE
(2) ½” Nylock
Nuts and (2) ½”
Washers ARE
NOT used for (2)
½” x 4” Bolts on
corners A and D
until Step 6-D.
