CAUTION
Be sure people and objects are clear of the lift and the
leveling leg during adjustment. As the lift is leveled, the
entire lift frame will move, causing the potential creation of
pinch points between the lift and dock system as well as
the sand pad and lake bottom.

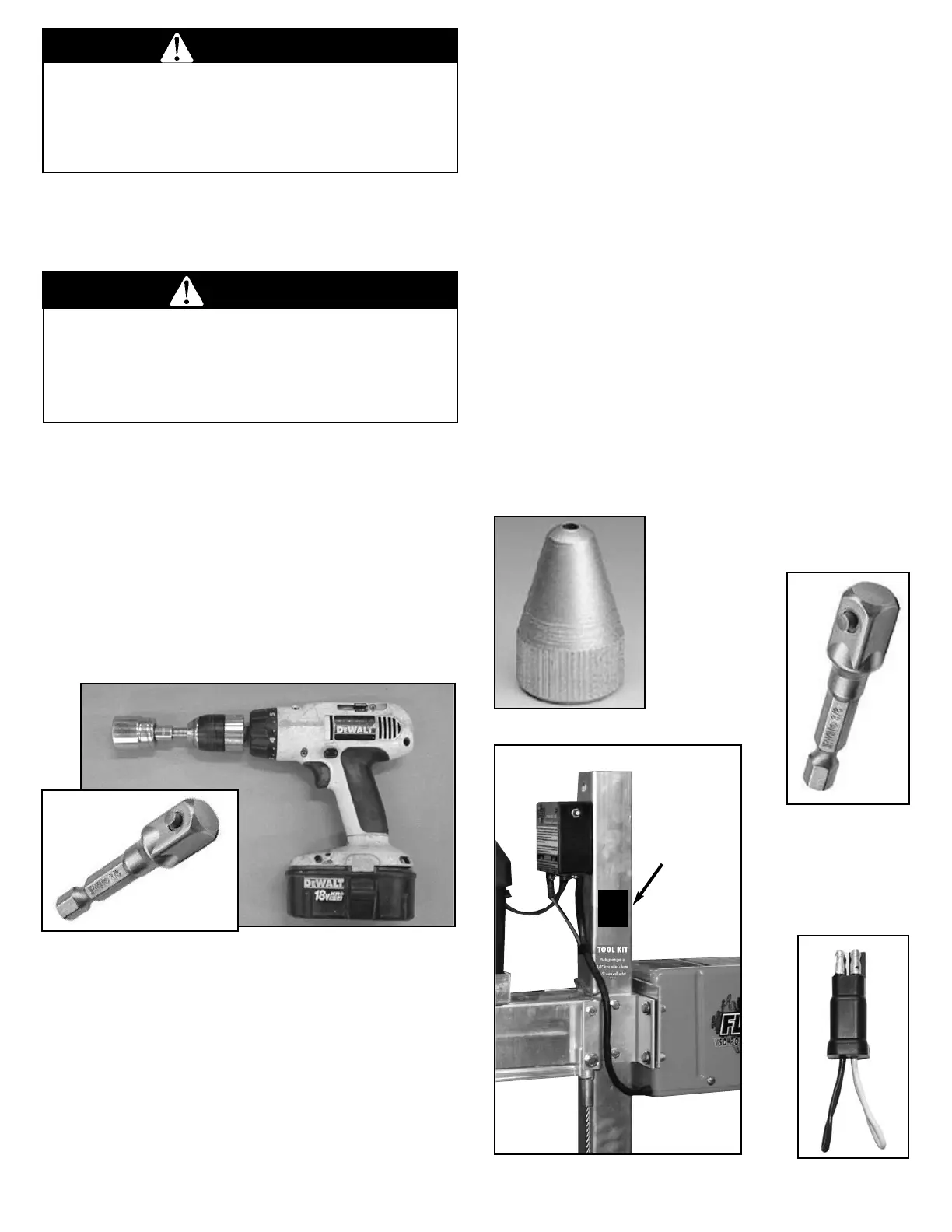

Fig. 26 Cordless Drill with Socket Attachment
The 3/8” drive socket adapter bit shown in inset photo,
along with a 3/4” socket, will allow you to use a cordless
drill on the leveling nuts to lower or raise the lift’s legs.
FLOE TOOL KIT
FLOE has provided a kit with four tools for use with your
VSD boat lift.
1. Flush Style Grease Gun Tip (Fig. 27)
(for greasing the ball-screw mechanism)
2. 3/8” Drive Socket Adapter Bit (Fig. 28)
3. Limit Switch Bypass Test Plug (Fig. 31)
(See VSD Diagnostics on page 26 for instructions
on how to use the byass plug.)
The Velcro backed tool kit can be attached to the lift
frame, so that these tools are readily available when
needed. The kit is made from solution dyed polyseter and
has a fold-over flap to help protect these adapters from
the elements.
To attach the tool kit
Remove the adhesive protective paper from the back of
the vinyl pouch and place the tool kit on the corner post
as shown, see Fig. 30. Now the tools will be easy for you
or an installer to locate.
Fig. 30
WARNING
Never operate a boat lift that is not level. Under normal
conditions a boat lift operates under extreme force.
When the lift is not level, these forces are greatly
multiplied and bodily injury or damage to the lift can
result.
Fig. 27
Place tool
kit here
Fig. 28
Fig. 31
15
