Floe VSD7500 - Lift Dimensional Specifications

Top of Main Cradle
Lift Beam lowers
down to 11.5” (6000)
11.5” (7500) or
15” (10000) above
the lake bottom with
legs fully retracted.

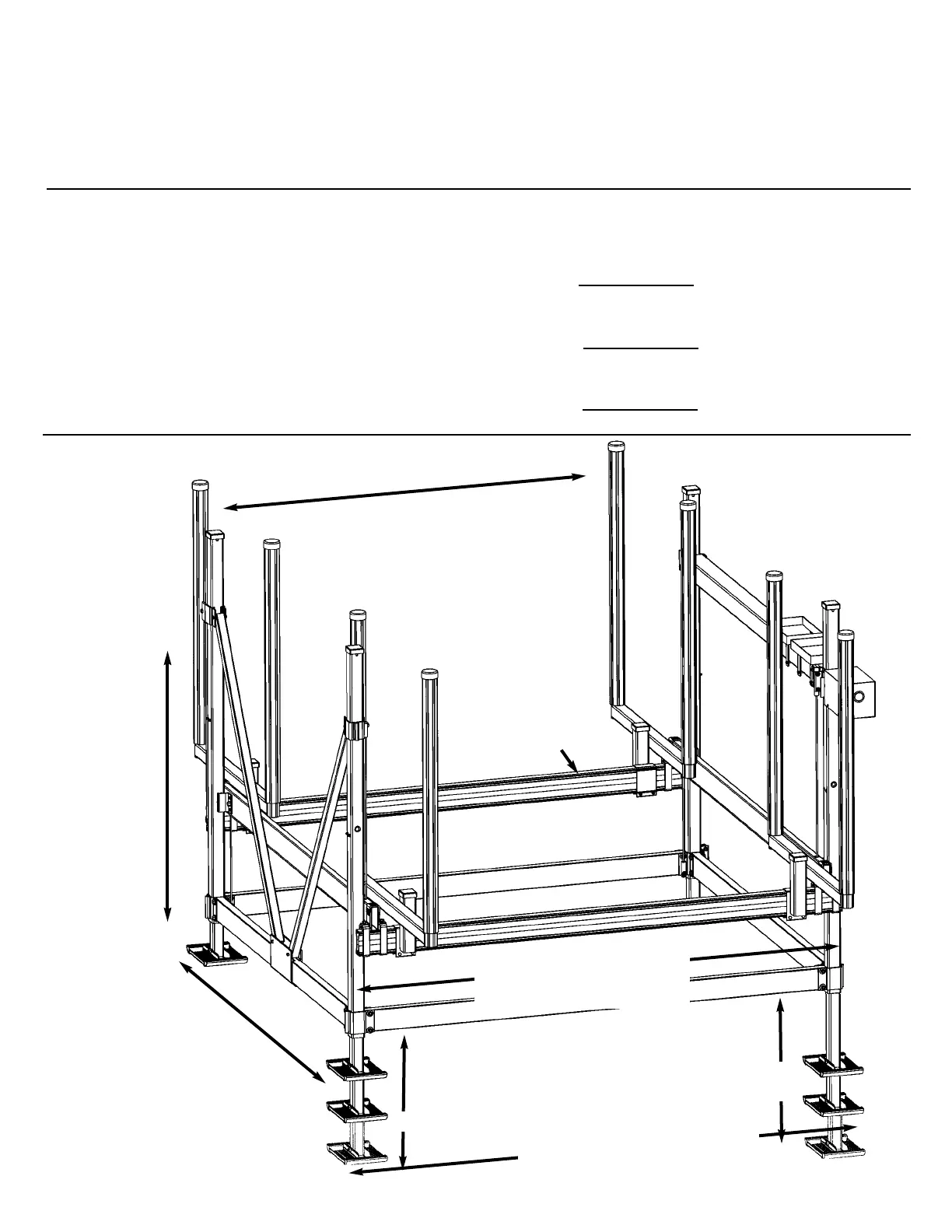

LIFT DIMENSIONAL SPECIFICATIONS
Max. Inside Width of Guide-ins
6000 = 115.5” / 7500 = 103.5” / 10000 = 115”
Max. Inside Width of Guide-ins with
Double Vertical Style Only
7500 = 107” / 10000 = 119”
6000 = 119”
0 - 35”
Leveling Leg
Travel with
Extensions*
* Deep water extensions available. **Does not include the weight of the bunks, guides, or other accessories.
Bed travel for
6000 = 60”
7500 = 60”
10000 = 52”
Leveling Leg
Travel with
Standard Legs
Frame Length
(from one main lift
beam to the other)
6000 = 126.5”
7500 = 126.5”
10000 = 162.5”
MODEL/ DRIVE BUNKS BED INSIDE OUTSIDE FRAME
CAPACITY TRAIN TRAVEL WIDTH WIDTH LENGTH
VSD-6000 Screw-Drive Cradle Pads 60” 132” 140” 126.5”
VSD-7500 Screw-Drive Cradle Pads 60” 119” 128" 126.5”
VSD 10000 Screw-Drive Cradle Pads 52” 132” 140” 162.5”
MODEL/ LEVELING TRAVEL CANOPY GUIDE-IN MAX INSIDE WEIGHT**
CAPACITY LEG WITH OPTION OPTIONS WIDTH WITH
TRAVEL EXTENSIONS* GUIDE-INS
VSD-6000 0 -35” 21.5 - 48.5” 24’, 26’, vertical 115.5” 747 lbs.
28’, 30’, 32’ double vertical 119”
VSD-7500 0 - 35” 21.5 - 48.5” 24’, 26’, vertical 103.5” 731 lbs.
28’, 30’, 32’ double vertical 107”
VSD-10000 0 - 35” 21.5 - 48.5” 28’, 30’, 32’, 36’ vertical 115.5” 1,010 lbs.
double vertical 119”
21.5 -
48.5”
Outside Frame Width
7500 = 128” / 10000 = 140”
6000 = 140”
Outside edge of sandpad to
outside edge of sand pad: VSD
7500=135”, VSD10000=147”
