TM Meter
Size & Fitting
Length (A) Height (B) Width (C)
Dimensions
TM05S - Spigot
4.3 in.
(109 mm)
2.5 in.
(63 mm)
2.1 in.
(53 mm)
TM05N - NPT
6.0 in.
(152 mm)
2.7 in.
(68 mm)
2.1 in.
(53 mm)
TM07S - Spigot
4.4 in.
(112 mm)
2.7 in.
(68 mm)
2.1 in.
(53 mm)
TM07N - NPT
6.1 in.
(155 mm)
2.9 in.
(73 mm)
2.1 in.
(53 mm)
TM10S - Spigot
4.5 in.
(114 mm)
2.9 in.
(73 mm)
2.1 in.
(53 mm)
TM10N - NPT
6.5 in.
(165 mm)
3.1 in.
(79 mm)
2.1 in.
(53 mm)
TM10B - BSP
6.7 in.
(170 mm)
3.1 in.
(79 mm)
2.1 in.
(53 mm)
TM15S - Spigot
5.4 in.
(137 mm)
3.6 in.
(91 mm)
2.1 in.
(53 mm)
TM15N - NPT
7.6 in.
(193 mm)
3.8 in.
(96 mm)
2.3 in.
(58 mm)
TM15B - BSP
7.6 in.
(193 mm)
3.7 in.
(94 mm)
2.2 in.
(56 mm)
TM20S - Spigot
5.5 in.
(140 mm)
4.1 in.
(104 mm)
2.4 in.
(61 mm)
TM20N - NPT
7.9 in.
(200 mm)
4.4 in.
(112 mm)
3.5 in.
(89 mm)
TM20B - BSP
7.8 in.
(198 mm)
4.2 in.
(107 mm)
2.7 in.
(69 mm)


SAFETY /
SPECIFICATIONS

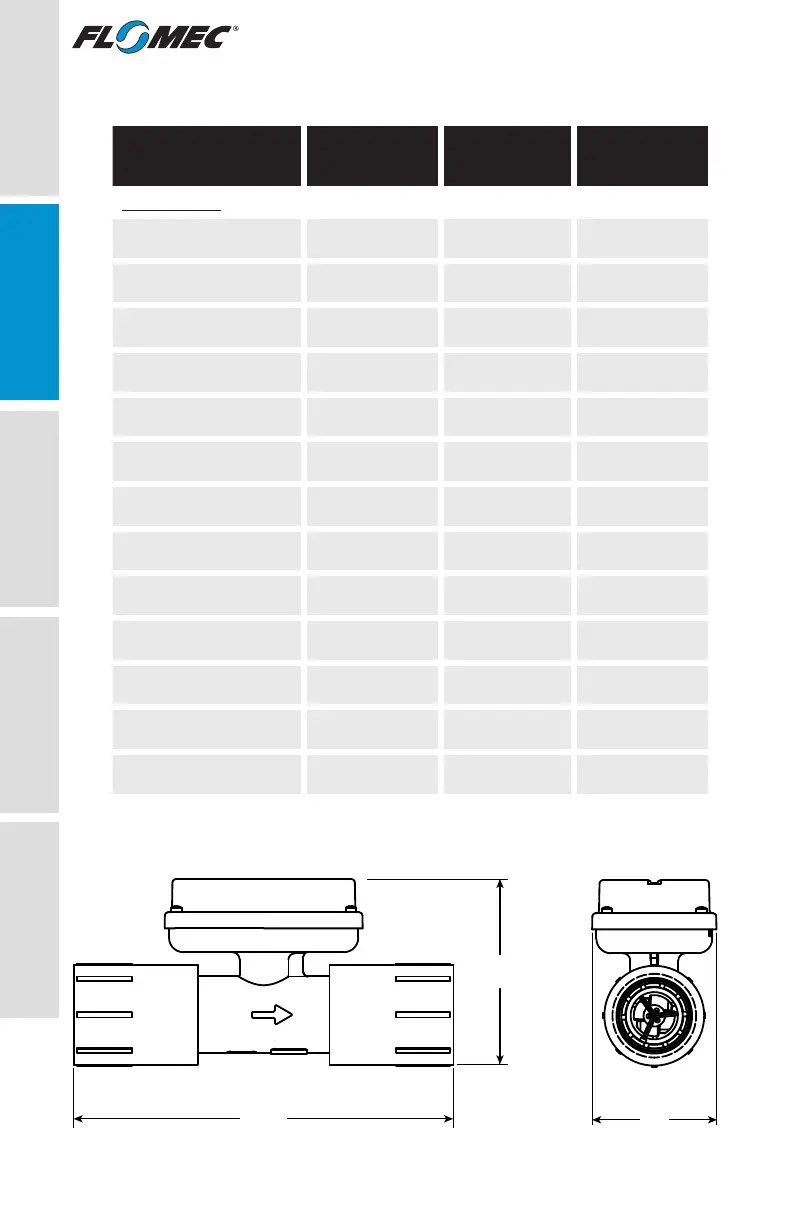

Figure 1
