Flow Safe F8000 Series User Manual

INSTALLATION, OPERATION, &
MAINTENANCE MANUAL
TITLE: F7000 / 8000 Series Rev. V
Pilot-Operated Safety Relief Valve Page 15 of 41
BRACKET-MOUNT BODY DIRECT-MOUNT BODY

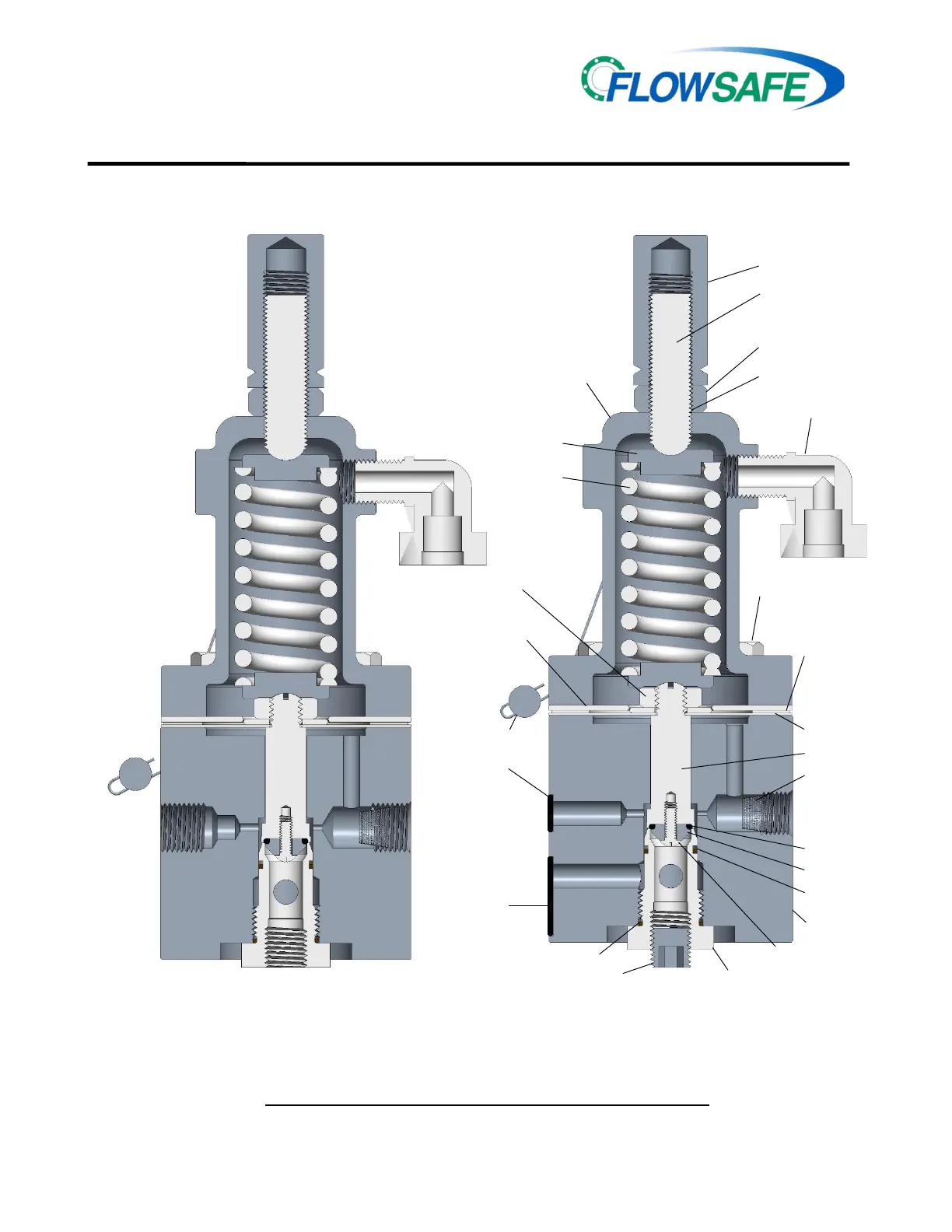

F100 PILOT VALVE ASSEMBLY, HIGH PRESSURE
5 – 740 PSIG
PA CAP
PRESSURE
ADJUSTMENT
(PA) SCREW
LOCK NUT
PA SCREW SEAL
(WHEN SPECIFIED)
VENT / BUG
SCREEN
PIPE PLUG
DIAPHRAGM
BOLT
(NUT & LOCKWASHER ON
OLDER BODIES ONLY)
DIAPHRAGM
GASKET
(USE ABOVE TFE
DIAPHRAGM
ONLY)
BONNET
SPRING
WASHER
SPRING
LOCKWIRE/
LEAD SEAL
DIAPHRAGM
LOCK NUT
SMALL
FACE SEAL
NOZZLE
O-RING
LARGE
FACE SEAL
NOZZLE SEAL
SPINDLE
NOZZLE
RETAINER
SCREW
RETAINER
INLET
SCREEN
Dome
Supply
Pilot Inlet
Pilot Exhaust
(Tubed to
Outlet Hub)
Dome
Supply
Pilot Inlet
Pilot Exhaust
SEAT
INNER SPACER/
OUTLET SPACER
(SINGLE SPACER UP
TO 136 PSIG)
BODY
