8.2 Center line mounted, recessed impeller and self primer configurations

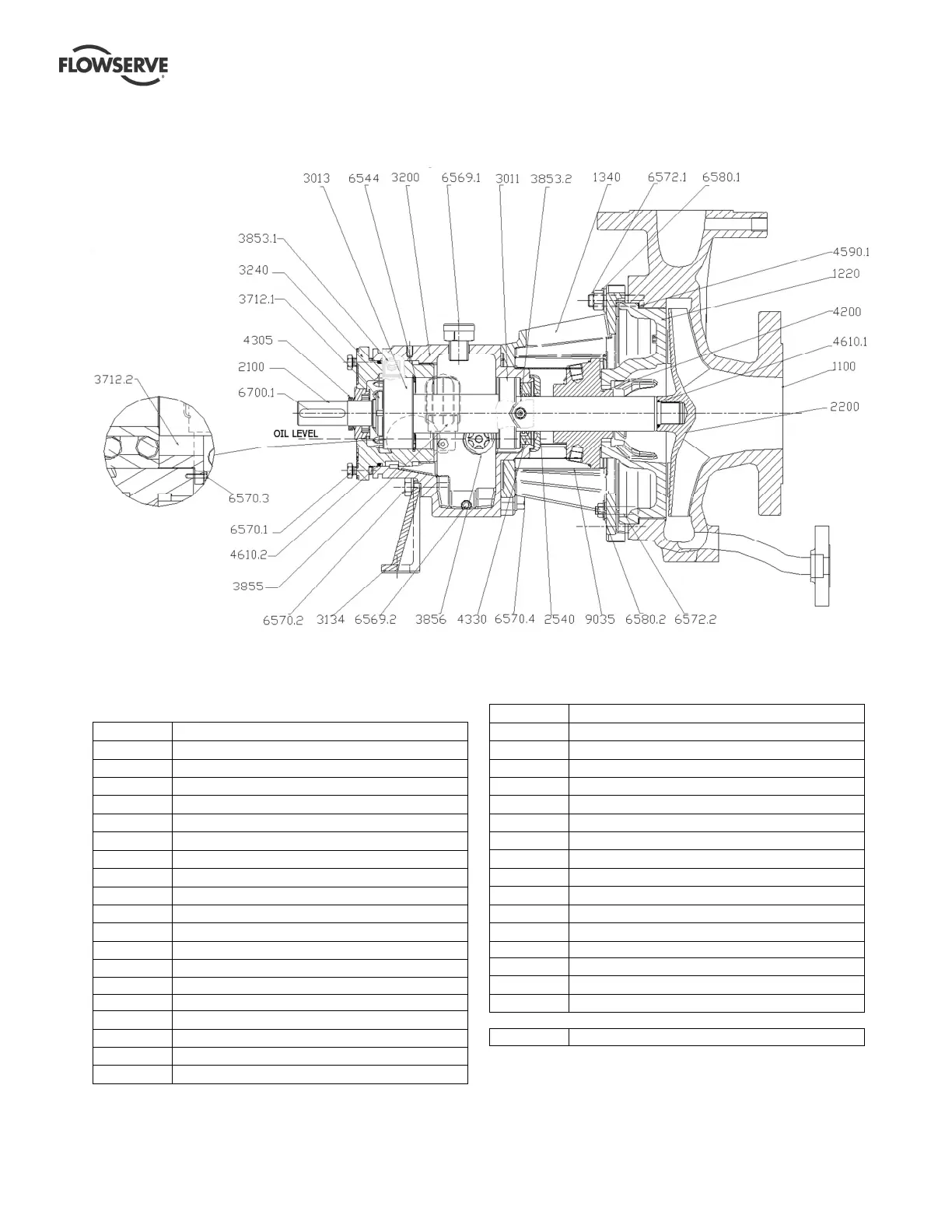

8.2.1 Center line mounted sectional drawing
8.2.2 Center line mounted casing parts list
Item
Description
1100 Casing
1220 Cover
1340 Adaptor
2100 Shaft
2200 Impeller
2540 Deflector (liquid)
3011 Radial ball bearing
3013 Thrust ball bearing
3134 Support foot
3200 Bearing housing
3240 Bearing carrier
3712.1 Bearing locknut
3712.2 Bearing locknut
3853.1 Grease nipples (grease lubrication only) *
3853.2 Grease nipples (grease lubrication only) *
3855 Constant level oiler
3856 Oil sight gauge
4200 Mechanical seal
4305 Shaft seal ring
4330 Labyrinth ring
4590 Gasket
4610.1 O-ring
4610.2 O-ring
6544 Circlip
6569.1 Plug (filler)
6569.2 Plug (magnetic)
6570.1 Screw
6570.2 Screw
6570.3 Screw
6570.4 Screw
6572.1 Stud
6572.2 Stud
6580.1 Nut
6580.2 Nut
6700.1 Key
9035 Guard
Items not illustrated
2400 Sleeve *
* Standard option
Drawing taken from C128/002
