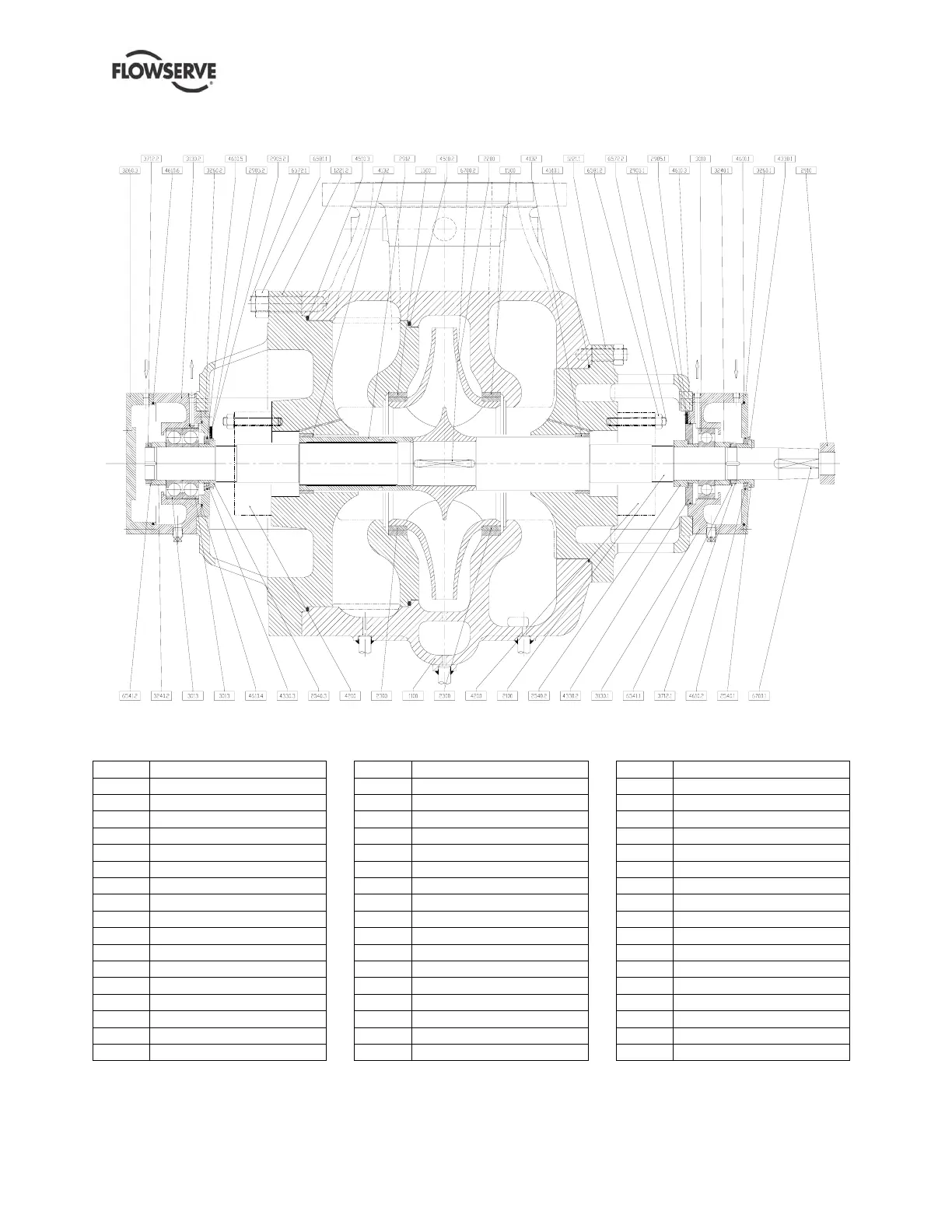

8.2 HDX Antifriction Bearing + Oil Mist Lubrication
8.2.1 Parts list
Ref no Description Ref no Description Ref no Description
1100 Casing 3130.2 Bearing Bracket 4610.4 “O” Ring
1221.1 Casing Cover 3260.1 Bearing Cover 4610.5 “O” Ring
1221.2 Casing Cover 3260.2 Bearing Cover 4610.6 “O” Ring
1500 Casing Wear ring 3260.3 Bearing Cover 6541.1 Lock washer
2100 Shaft 3712.1 Bearing Nut 6541.2 Lock washer
2200 Impeller 3712.2 Bearing Nut 6572.2 Stud
2300 Impeller Wear Ring 4132 Stuffing Box Bushing 6572.1 Stud
2540.1 Deflector 4200 Mechanical Seal 6581.1 Hexagon Nut
2540.2 Deflector 4330.1 Labyrinth Ring 6581.2 Hexagon Nut
2540.3 Deflector 4330.2 Labyrinth Ring 6700.1 Key
2905.1 Washer 4330.3 Labyrinth Ring 6700.2 Key
2905.2 Washer 4510.1 Gasket
2910 Shaft Nut 4510.2 Gasket
2912 Impeller Nut 4510.3 Gasket
3010 Anti-Friction Bearing 4610.1 “O” Ring
3013 Thrust Ball bearing 4610.2 “O” Ring
3130.1 Bearing Bracket 4610.3 “O” Ring
