Flowserve HDX Series - Page 48

HDX USER INSTRUCTIONS ENGLISH 85392696 - 01/11
Page 48 of 60

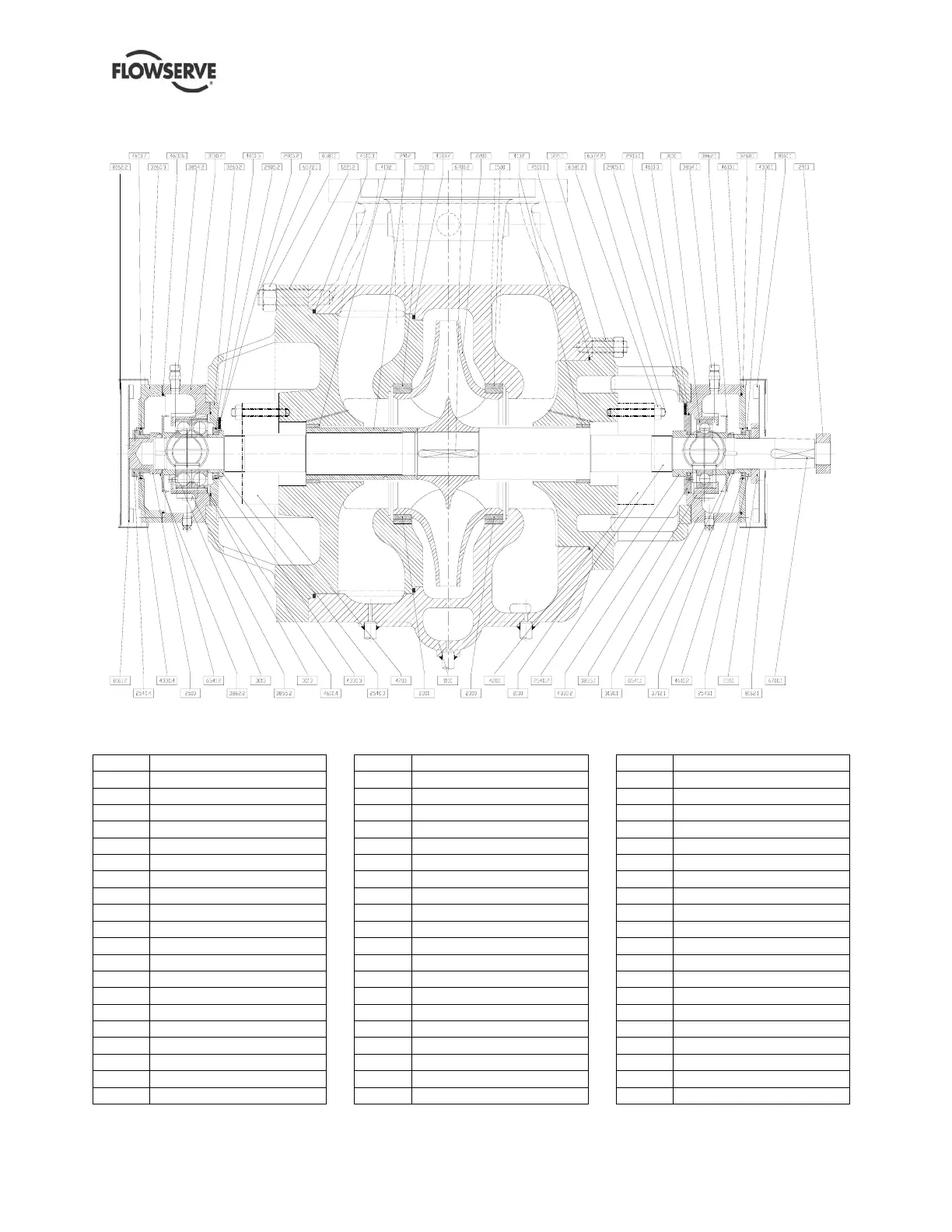

8.3 HDX Antifriction Bearing + Slinger Lubrication + Fan Cooling
8.3.1 Parts list
Ref no Description Ref no Description Ref no Description
1100 Casing 3130.2 Bearing Bracket 4610.1 “O” Ring
1221.1 Casing Cover 3260.1 Bearing Cover 4610.2 “O” Ring
1221.2 Casing Cover 3260.2 Bearing Cover 4610.3 “O” Ring
1500 Casing Wear ring 3260.3 Bearing Cover 4610.4 “O” Ring
2100 Shaft 3712.1 Bearing Nut 4610.5 “O” Ring
2200 Impeller 3854.1 Oil Filter Plug 4610.6 “O” Ring
2300 Impeller Wear Ring 3854.2 Oil Filter Plug 4610.7 “O” Ring
2500 Ring 3855.1 Constant Level Oiler 6541.1 Lock washer
2510 Spacer Ring 3855.2 Constant Level Oiler 6541.2 Lock washer
2540.1 Deflector 3862.1 Lubricating Disk Thrower 6572.2 Stud
2540.2 Deflector 3862.2 Lubricating Disk Thrower 6572.1 Stud
2540.3 Deflector 4132 Stuffing Box Bushing 6581.1 Hexagon Nut
2540.4 Deflector 4200 Mechanical Seal 6581.2 Hexagon Nut
2905.1 Washer 4330.1 Labyrinth Ring 6700.1 Key
2905.2 Washer 4330.2 Labyrinth Ring 6700.2 Key
2910 Shaft Nut 4330.3 Labyrinth Ring 8161.1 Fan
2912 Impeller Nut 4330.4 Labyrinth Ring 8161.2 Fan
3010 Anti-Friction Bearing 4510.1 Gasket 8162.1 Cover
3013 Thrust Ball bearing 4510.2 Gasket 8162.2 Cover
3130.1 Bearing Bracket 4510.3 Gasket
