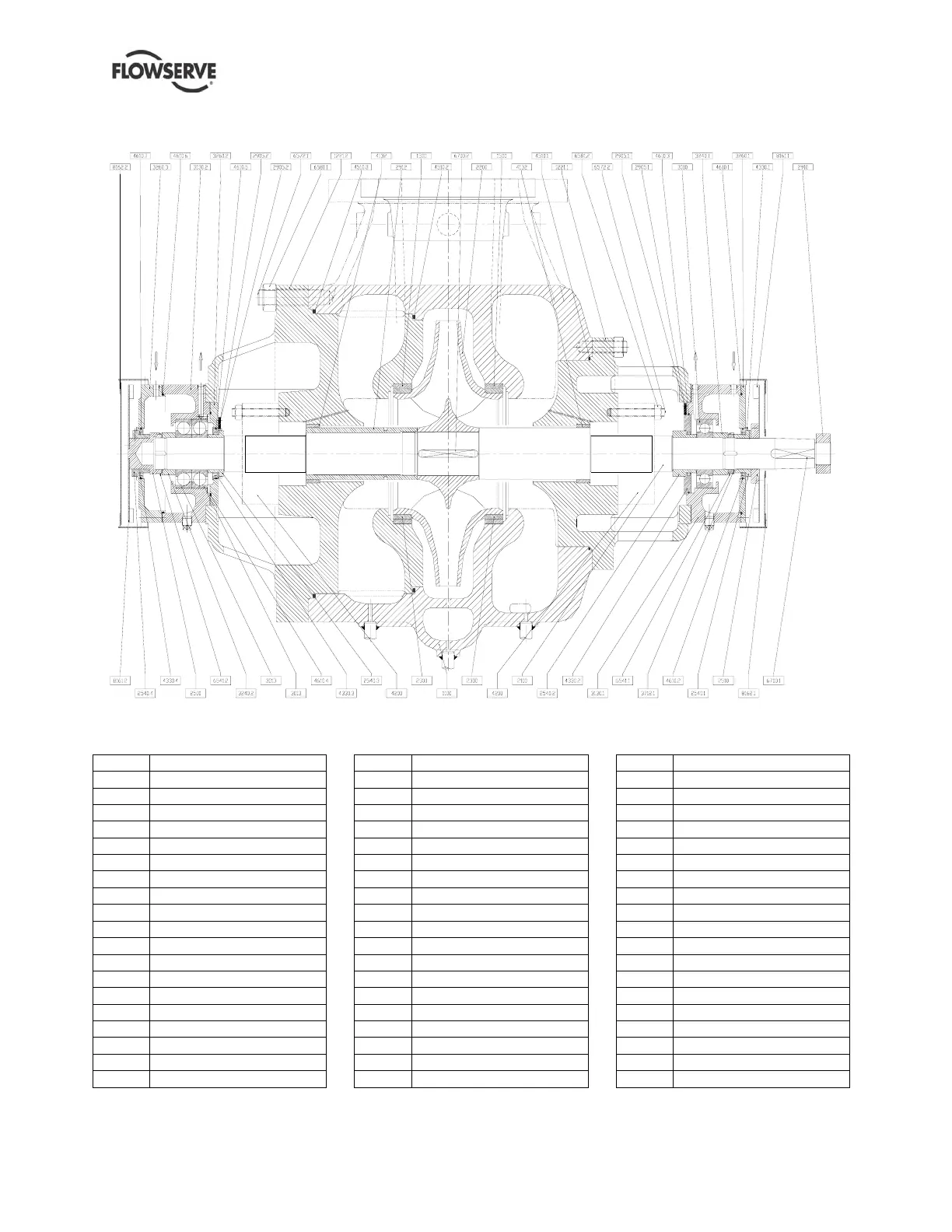

8.4 HDX Antifriction Bearing + Oil Mist Lubrication + Fan Cooling
8.4.1 Parts list
Ref no Description Ref no Description Ref no Description
1100 Casing 3130.1 Bearing Bracket 4610.3 “O” Ring
1221.1 Casing Cover 3130.2 Bearing Bracket 4610.4 “O” Ring
1221.2 Casing Cover 3240.1 Intermediate Bearing Sleeve 4610.5 “O” Ring
1500 Casing Wear ring 3240.2 Intermediate Bearing Sleeve 4610.6 “O” Ring
2100 Shaft 3260.1 Bearing Cover 4610.7 “O” Ring
2200 Impeller 3260.2 Bearing Cover 6541.1 Lock washer
2300 Impeller Wear Ring 3260.3 Bearing Cover 6541.2 Lock washer
2500 Ring 3712.1 Bearing Nut 6572.2 Stud
2510 Spacer Ring 4132 Stuffing Box Bushing 6572.1 Stud
2540.1 Deflector 4200 Mechanical Seal 6581.1 Hexagon Nut
2540.2 Deflector 4330.1 Labyrinth Ring 6581.2 Hexagon Nut
2540.3 Deflector 4330.2 Labyrinth Ring 6700.1 Key
2540.4 Deflector 4330.3 Labyrinth Ring 6700.2 Key
2905.1 Washer 4330.4 Labyrinth Ring 8161.1 Fan
2905.2 Washer 4510.1 Gasket 8161.2 Fan
2910 Shaft Nut 4510.2 Gasket 8162.1 Cover
2912 Impeller Nut 4510.3 Gasket 8162.2 Cover
3010 Anti-Friction Bearing 4610.1 “O” Ring
3013 Thrust Ball bearing 4610.2 “O” Ring
